4700uF 450V Aluminum Electrolytic Capacitors High Ripple Current

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCE22
Certification :	SGS( RoHS)
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	10000pcs per months
Delivery Time :	15~20 working days

Add to Cart

Product Details
Company Profile

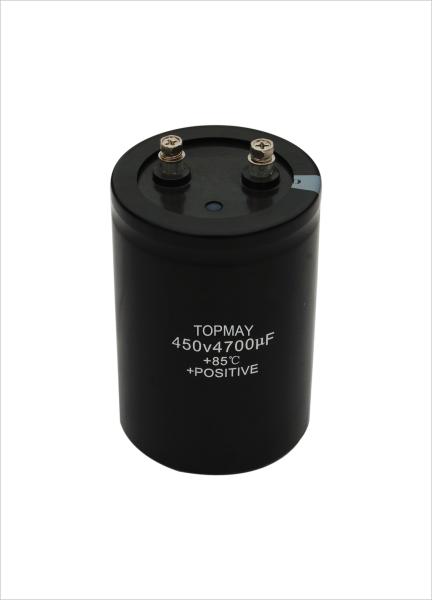

4700uF 450V Aluminum Electrolytic Capacitors High Ripple Current

4700uF Polymer Aluminum Electrolytic Capacitors High Ripple Current

4700uF 450V Aluminum Electrolytic Capacitor High Ripple Current

Features:

low price
Large capacity
stable job
high voltage tolerance
clear polarity
small size

Main Parameters:

Working Voltage

(V.DC)

Surge Voltage (V.DC)

Capacitance

(uF)

Size

ΦD×L(mm)

tanδ

20℃, 120Hz

Z max 20℃, 10KHz (mΩ)

ESR(20℃, 100Hz (mΩ)

IR (Arms,105℃, 100/120Hz)

400

450

4700

90*157

0.15

Specifications:

Items	Specifications
Temperature range	-40℃~+105℃	-25℃~+105℃
Rated voltage	25~160V.DC	200~550V.DC
Capacitance tolerance	±20% (20℃, 120Hz)
Leakage current	0.01CV (μA) or 5 mA,whichever is smaller or less
	[ C=nominal capacitance (μF),V= rated voltage (V) ]
Dissipation factor	Less than the value specified in the standard products table.
Permissible ripple current	As specified in the standard products table. (105℃, 120Hz)
High-temperature load	After the rated voltage with specified ripple current is applied at 105℃ for 2000 hours : Capacitance tolerance : ±20% or less of the initial value Dissipation factor : 200% or less of the specified initial value Leakage current : Specified initial value or less




Standard reference	JIS C 5101-4

Ripple current correction coefficient
Temperature (℃)		40	55	70	85	105
Coefficient	250WV under	4.9	3.9	3.0	1.8	1.0
Coefficient	400WV	3.8	3.3	2.5	2.0	1.0
Frequency (Hz)		50/60	120	300	1K	≥10K
Coefficient		0.8	1.0	1.1	1.3	1.4

Dimensions

Marking

Name of Brand : TOPMAY

Color of sleeve: Black

Color of marking: White

Rated Voltage:400VDC

Rated Capacitance:10000UF

Polarity

FAQ Of Topmay Capacitor

Questions	Answers
Can I have a free sample to test?	Yes, but freight cost is collected.
What is the lead time?	Samples take about 7-10 working days, mass production takes 15-20 working days on average.
Do you have any MOQ limit?	Yes, the MOQ depends on the product, usually between 2,000 to 10,000 pieces.
How about price terms?	FOBSHENZHEN for orders over 5,000 USD, EXWSHENZHEN for orders under 5,000 USD. Local charge not included.
What information should I provide for a quotation?	Detailed capacitance and voltage are required. Additional information such as type and product photo are helpful but not necessary.

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
