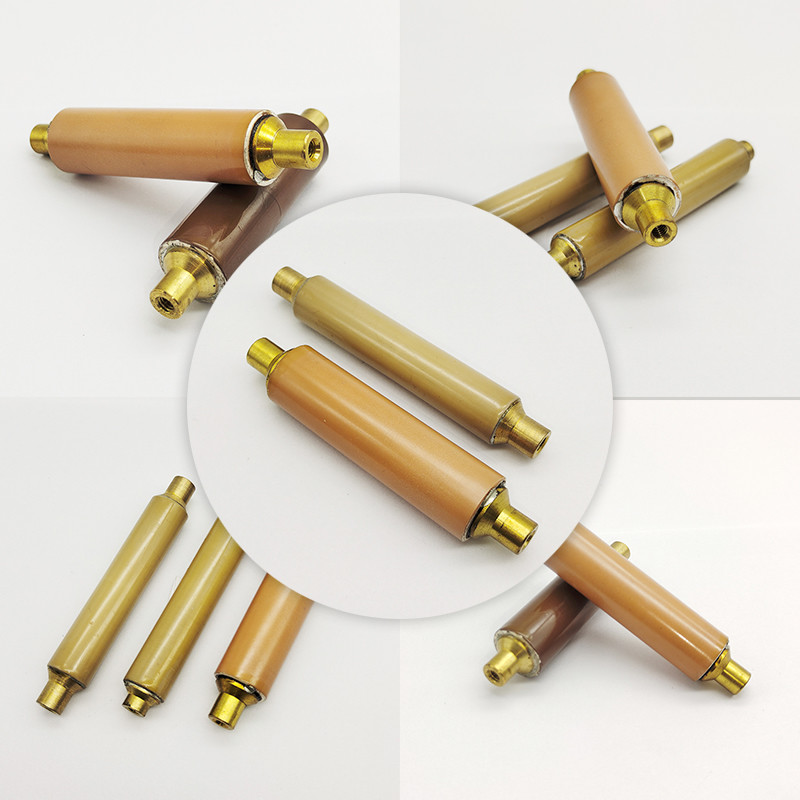

150pF 24KV Ceramic Capacitor High Voltage Insulator Capacitor
Performance Characteristics
1. Made of SrTiO3 ceramic material.
2. High product life.
3. Low bias characteristics.
4. Low dielectric loss.
5. High withstand voltage.
6. Capacity accuracy 10%
Applications
This series of products are high-voltage capacitors for
high-voltage live display sensors, suitable for APG process and
vacuum casting process.
Basic Parameters
Ceramic Dielectric Properties |
NO. | Ceramic
Dielectric | Operating
temperature
Range(℃) | Insulation
Resistance
( MΩ) | Dissipation
factor | Temperature
characteristics |
1 | Y5T | -25~+85℃ | ≥100000 | ≤0.5% | +22%,-33% |
Product code | Tolerance | Withstand voltage
(AC:kv/1min) | Partial discharge
(kv﹤10pc) | Size By M4 nut(mm) |
D | L1 | L2 |
7KV-20PF | ±10% | 50 | 8 | 12 | 32.5 | 44.5 |
7KV-50PF | ±10% | 50 | 8 | 12 | 30 | 42 |
7KV-100PF | ±10% | 50 | 8 | 12 | 31 | 43 |
7KV-220PF | ±10% | 50 | 8 | 15.3 | 34 | 46 |
12KV-150PF | ±10% | 75 | 14.4 | 15.3 | 50 | 62 |
12KV-200PF | ±10% | 75 | 14.4 | 16.5 | 45 | 65 |
24KV-10PF | ±10% | 95 | 39.6 | 14 | 60 | 72 |
24KV-15PF | ±10% | 95 | 39.6 | 14 | 60 | 72 |
24KV-20PF | ±10% | 95 | 39.6 | 14 | 60 | 72 |
24KV-50PF | ±10% | 95 | 39.6 | 14 | 60 | 72 |
24KV-75PF | ±10% | 95 | 39.6 | 14 | 60 | 72 |
24KV-150PF | ±10% | 95 | 39.6 | 16.5 | 61 | 80 |
36KV-16PF | ±10% | | | 15.5 | 70 | 84 |
36KV-40PF | ±10% | | | 12 | 78 | 90 |
