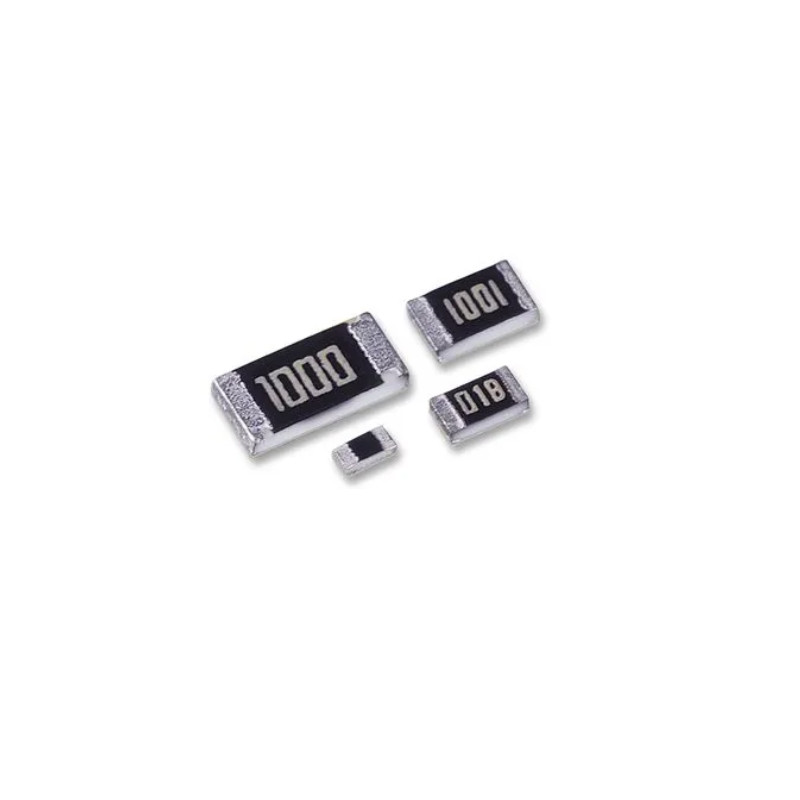

Thick Film SMD Chip Resistor 1% 5% 0.01~100 KOhm 0402 0603 0805 1206 2512

SMD 0402 0603 0805 1206 2512 Thick Film Resistor 1% 5% 0.01~100 KOhm

Feature:

Small size & light weight. Low assembly cost

High reliability

Suitable for reflow and wave flow solder Compliant with ROHS requirement

Characteristics:

Type	0201	0402	0603	0805	1206	1210	1812	2010	2512
Rated Power	1/20W	1/16W	1/10W	1/8W	1/4W	1/2W	1/2W	3/4W	1W
Max Working Voltage	25V	50V	50V	150V	200V	200V	200V	200V	200V
Max Overload Voltage	50V	100V	100V	300V	400V	400V	400V	400V	400V
Dielectric Withstanding Voltage		100V	100V	300V	500V	500V	500V	500V	500V
Resistance Value of Jumper ±1%		<20mΩ	<20mΩ	<20mΩ	<20mΩ	<20mΩ	<20mΩ	<20mΩ	<20mΩ
Resistance Value of Jumper ±5%		<50mΩ	<50mΩ	<50mΩ	<50mΩ	<50mΩ	<50mΩ	<50mΩ	<50mΩ
Rated Current of Jumper	0.5A	1A	1A	1.5A	1.9A	2.2A	2A	3A	3A
Max Current of Jumper	1A	2A	2A	3.5A	5A	5.5A	5A	7.5A	7.5A

Resistance Range:

Type	Resistance Range
	1%	2%	5%
0201	1Ω~10MΩ	1Ω~10MΩ	1Ω~10MΩ
0402	1Ω~22MΩ	1Ω~22MΩ	1Ω~22MΩ
0603	1Ω~22MΩ	1Ω~22MΩ	1Ω~100MΩ
0805	1Ω~22MΩ	1Ω~22MΩ	1Ω~100MΩ
1206	1Ω~22MΩ	1Ω~22MΩ	1Ω~100MΩ
1210	1Ω~22MΩ	1Ω~22MΩ	1Ω~100MΩ
1812	1Ω~10MΩ	1Ω~10MΩ	1Ω~10MΩ
2010	1Ω~22MΩ	1Ω~22MΩ	1Ω~100MΩ
2512	1Ω~22MΩ	1Ω~22MΩ	1Ω~100MΩ

Dimension(mm):

Type(inch)	L(mm)	W(mm)	T(mm)	l1(mm)	l2(mm)
0402	1.00±0.05	0.50±0.05	0.35±0.05	0.20±0.10	0.25±0.10
0603	1.60±0.10	0.80±0.10	0.45±0.10	0.30±0.20	0.30±0.20
0805	2.00±0.15	1.25±0.15	0.55±0.10	0.30±0.20	0.40±0.20
1206	3.10±0.15	1.60±0.15	0.55±0.10	0.40±0.20	0.45±0.20
1210	3.10±0.15	2.50±0.15	0.55±0.10	0.40±0.20	0.45±0.20
2010	5.00±0.20	2.50±0.20	0.55±0.10	0.50±0.25	0.50±0.20
2512	6.25±0.20	3.10±0.20	0.55±0.10	0.50±0.25	0.50±0.20

Packing dimension

Dimensions	A	B	D	F	P0	P1	P2	W
0201	0.38±0.05	0.68±0.05	1.50±0.10	3.50±0.05	4.00±0.10	2.00±0.10	2.00±0.05	8.00±0.20
0402	0.65±0.10	1.15±0.10	1.50±0.10	3.50±0.05	4.00±0.10	2.00±0.10	2.00±0.05	8.00±0.20
0603	1.10±0.10	1.90±0.10	1.50±0.10	3.50±0.05	4.00±0.10	4.00±0.10	2.00±0.05	8.00±0.20
0805	1.65±0.20	2.40±0.20	1.50±0.10	3.50±0.05	4.00±0.10	4.00±0.10	2.00±0.05	8.00±0.20
1206	1.90±0.20	3.50±0.20	1.50±0.10	3.50±0.05	4.00±0.10	4.00±0.10	2.00±0.05	8.00±0.20
1210	2.80±0.20	3.50±0.20	1.50±0.10	3.50±0.05	4.00±0.10	4.00±0.10	2.00±0.05	8.00±0.20
1812	3.30±0.20	4.60±0.20	1.50±0.10	5.50±0.05	4.00±0.10	4.00±0.10	2.00±0.05	12.0±0.10
2010	2.90±0.10	5.30±0.10	1.50±0.10	5.50±0.05	4.00±0.10	4.00±0.10	2.00±0.05	12.0±0.10
2512	3.40±0.10	6.60±0.10	1.50±0.10	5.50±0.05	4.00±0.10	4.00±0.10	2.00±0.05	12.0±0.10
