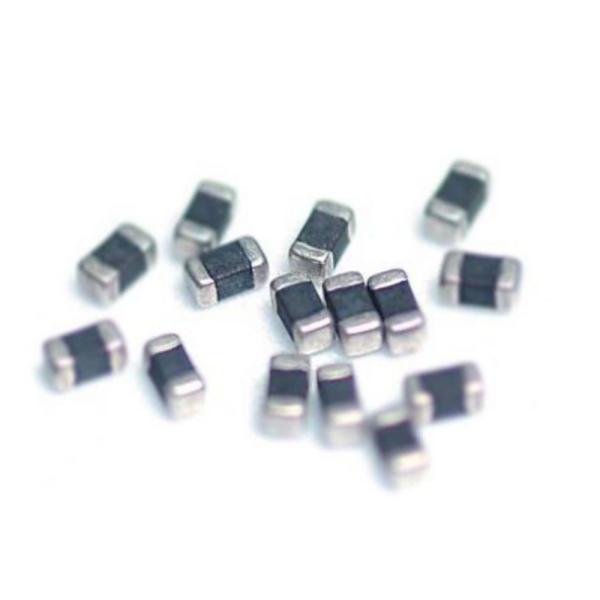

Chip NTC Thermistor SMD Chip Thermal Resistor 10KΩ ~100KΩ
0201/0402/0603/0805/1206
Features:
- Small in size
- High sensitivity, In light weight
- Excellent solderability and solder resistance
- Suitable for high speed and high density surface mount
- Faster response,good stability and high reliability
Applications:Audio-visual products, home appliances, office equipment,
communication equipment, etc.
Part Number:
| TMCR04 | - | 1 2 3 | 4 | 5 6 7 8 | 9 | 10 11 12 13 | 14 |
| ↓ | | ↓ | ↓ | ↓ | ↓ | ↓ | ↓ |
| | | | | | | | | | |
| Produce Code TMCR04: Chip NTC Thermistor | | Rated Zero-Power Resistance at 25℃ (Ω) 222=2.2kΩ 103=10kΩ 474=470kΩ | Tolerance F=±1% G=±2% H=±3% J=± 5% | B value constant(K): 3200 3435 3450 3600 3900 4150 4200 | Tolerance of B value: F=±1% G=±2% H=±3% J=± 5% | Size: 0201 0402 0603 0805 1206 | Packaging T:tape&reel B:bulk |
| - |
|
Dimension(mm):
| Type(inch) | L(mm) | W(mm) | T(mm) | a(mm) |
| 0201 | 0.6±0.05 | 0.3±0.05 | 0.4Max | 0.10Min |
| 0402 | 1.0±0.15 | 0.5±0.10 | 0.5Max | 0.10Min |
| 0603 | 1.6±0.15 | 0.8±0.15 | 0.95Max | 0.10Min |
| 0805 | 2.0±0.20 | 1.25±0.20 | 1.25Max | 0.15Min |
| 1206 | 3.2±0.20 | 1.6±0.20 | 1.50Max | 0.20Min |

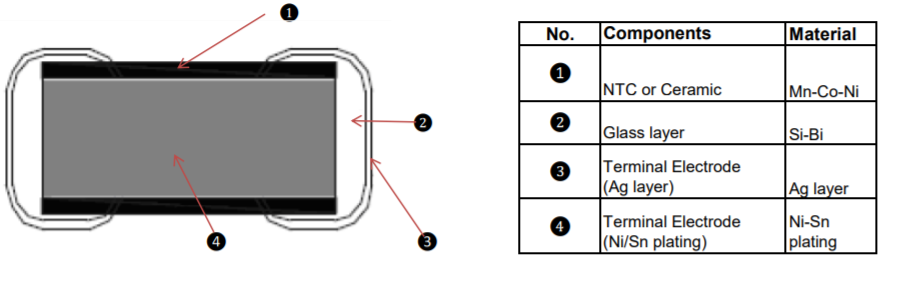

Construction:
Electrical Characteristics
| (TMCR04-) part item | Resistance (25℃) | B Constant (25/50℃) | Permissible Operating Current ( 25℃) | Dissipation Factor | Thermal Time Constant | Rated Electric Power(25℃) | Operation Ambient
Temperature |
| (kΩ) | (K) | (mA) | (mW/℃) | (s) | (mW) | (℃) |
| 103F3435F0603T | 10±1% | 3380±1% | 0.31 | 1.0 | ＜5 | 100 | -40～+125℃ |
| 103F3450F0603T | 10±1% | 3450±1% | 0.31 |
| 103F3950F0603T | 10±1% | 3950±1% | 0.31 |
| 223F3950F0603T | 22±1% | 3950±1% | 0.21 |
| 333F4050F0603T | 33±1% | 4050±1% | 0.17 |
| 473F4050F0603T | 47±1% | 4050±1% | 0.14 |
| 683F4150F0603T | 68±1% | 4150±1% | 0.12 |
| 104F3950F0603T | 100±1% | 3950±1% | 0.10 |
| 104F4250F0603T | 100±1% | 4250±1% | 0.10 |
| 103H3435F0603T | 10±3% | 3380±1% | 0.31 |
| 103H3450F0603T | 10±3% | 3450±1% | 0.31 |
| 103H3950F0603T | 10±3% | 3950±1% | 0.31 |
| 223H3950F0603T | 22±3% | 3950±1% | 0.21 |
| 333H4050F0603T | 33±3% | 4050±1% | 0.17 |
| 473H4050F0603T | 47±3% | 4050±1% | 0.14 |
| 683H4150F0603T | 68±3% | 4150±1% | 0.12 |
| 104H3950F0603T | 100±3% | 3950±1% | 0.10 |
| 104H4250F0603T | 100±3% | 4250±1% | 0.10 |
| 103J3435F0603T | 10±5% | 3380±1% | 0.31 |
| 103J3450F0603T | 10±5% | 3450±1% | 0.31 |
| 103J3950F0603T | 10±5% | 3950±1% | 0.31 |
| 223J3950F0603T | 22±5% | 3950±1% | 0.21 |
| 333J4050F0603T | 33±5% | 4050±1% | 0.17 |
| 473J4050F0603T | 47±5% | 4050±1% | 0.14 |
| 683J4150F0603T | 68±5% | 4150±1% | 0.12 |
| 104J3950F0603T | 100±5% | 3950±1% | 0.10 |
| 104J4250F0603T | 100±5% | 4250±1% | 0.10 |
Test and Measurement Procedures
Test Conditions
Unless otherwide specified, the standard atmospheric conditions for
measurement/test as
a. ambient Temperature: 20±15℃
b. Relative Humidity: 65±20%
c. Air Pressure: 86kPa to 106kPa
If any doubt on the results, measurements/tests should be made
within the following limits:
a. Ambient Temperature: 25±2℃
b. Relative Humidity: 65±5%
c. Air Pressure: 86kPa to 106kPa
Inspecstion Equipment
Visual Examination: 20Xmagnifier
Varistor Voltage test: Varistor tester
