High Temperature 85℃ Farad Super Capacitor Cylindrical 1F~400F 2.7V

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCS01
Certification :	SGS
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	100000pcs per month
Delivery Time :	20~25 working days

Add to Cart

Product Details
Company Profile

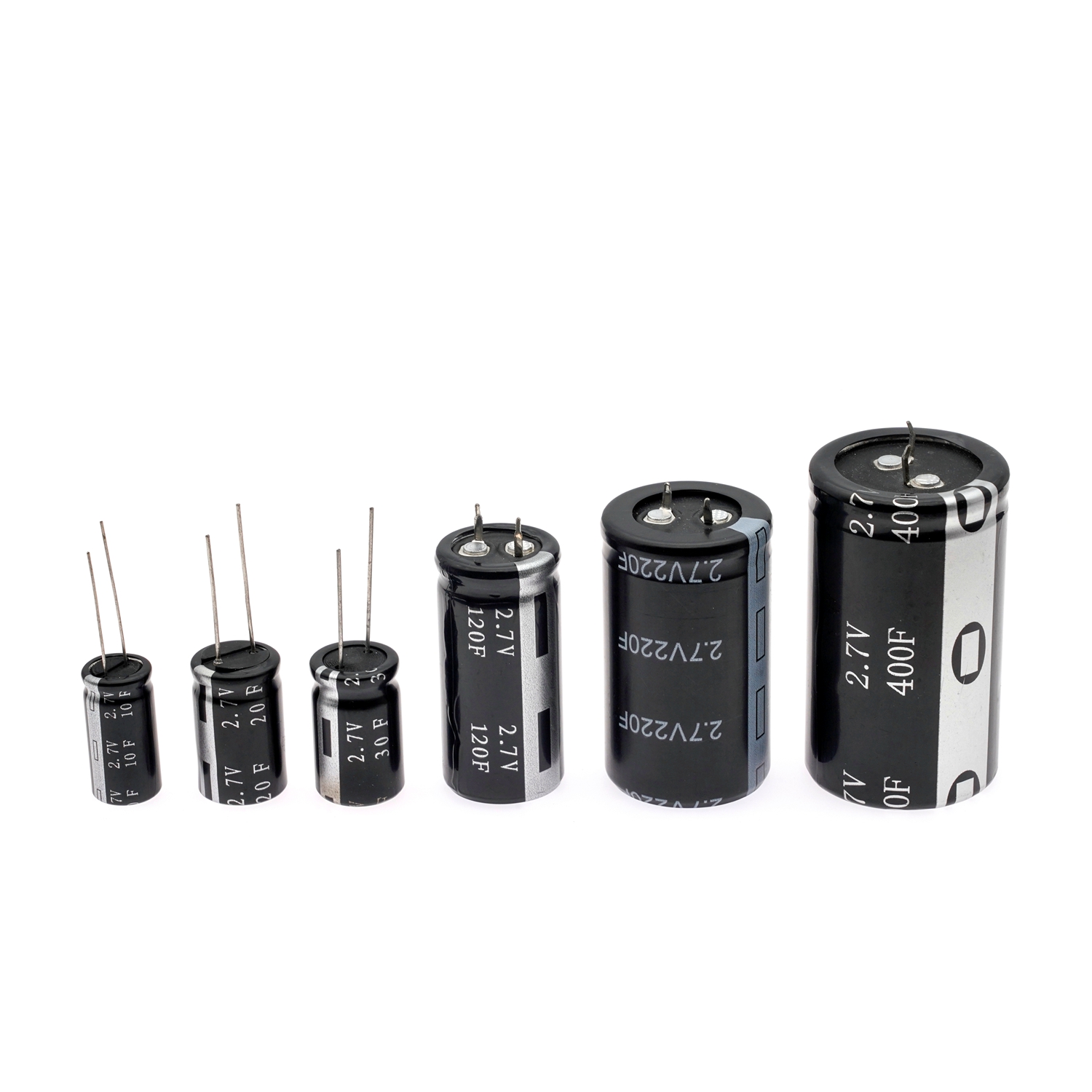

High Temperature 85℃ Farad Super Capacitor Cylindrical 1F~400F 2.7V

High Temperature 85℃ Ultracapacitor Super Capacitor Cylindrical 1F~400F 2.7V

Feature:

high temperature 85℃ series
Good consistency
Low internal resistance

Usage:

Widely used for ammeter, water, gas meter, tax machine, solar lamp, electric vehicle, car audio, video, electric tool, wind power generator, and UPS, for Wireless Communications, Buzzers, Toys

Series Specification Table

Items	High Temperature 85℃ Cylindrical Super Capacitor
Rated Voltage	2.3V	2.7V
Working Temperature	-40~85℃	-40~85℃
Capacitance Range	1F~400F	1F~400F
Capacitance Tolerance	-20%~+80%	-20%~+80%
Life	added rated voltage, under room temperature, cycling charge and discharge testing for 200000 times, \|△C/C\|≤30%,ESR≤ 4 times initial value(25 ℃)
Life	+85℃±2 added rated voltage,1000hrs later,︱△C/C︱≤30%,ESR≤4 times initial value

Dimensions

Rated Voltage	Capacitance Value(F)	ESR(mΩ@1kHz)	Size(mm)
2.3/2.7	1	≤600	8*13.3
2.3/2.7	2	≤450	8*20.2
2.3/2.7	3	≤330	8*20.2
2.3/2.7	3.3	≤330	8*20.2
2.3/2.7	4.7	≤300	10*20.2
2.3/2.7	6	≤180	10*20.2
2.3/2.7	6.8	≤150	12.5*21
2.3/2.7	8	≤130	12.5*21
2.3/2.7	10	≤100	10*25.2
2.3/2.7	10	≤100	10*30.2
2.3/2.7	10	≤100	12.5*26.1
2.3/2.7	15	≤75	12.5*30.7
2.3/2.7	15	≤75	16*26.3
2.3/2.7	20	≤60	16*26.3
2.3/2.7	30	≤45	16*32
2.3/2.7	40	≤45	18*41.3
2.3/2.7	50	≤40	18*41.3
2.3/2.7	60	≤40	22*44.4
2.3/2.7	80	≤30	22*44.4
2.3/2.7	90	≤27	22*44.4
2.3/2.7	100	≤24	22*49.5
2.3/2.7	120	≤24	25*44.6
2.3/2.7	150	≤21	25*49.5
2.3/2.7	200	≤18	25*59.6
2.3/2.7	300	≤15	35*54.6
2.3/2.72	360	≤12	35*60.9
2.3/2.72	400	≤10	35*69.9

Environmental Characteristics:

ITEM		Specification
1	Temperature Characteristics	︱△C/C︱≤30%,ESR ≤ specified ESR(25℃) at +70℃ ︱△C/C︱≤50%,ESR≤ 4 times of specified ESR(25℃)at -40℃
2	High temperature load	︱△C/C︱≤30%,ESR≤ 4 times of specified ESR(25℃)at +70±2℃/1000hrs/rated voltage
3	High temperature storage	︱ △C/C ︱ ≤30% , ESR≤2 times of specified ESR ( 25℃ ) at +70±2℃/1000hrs/standby after fully charge
4	Humidity Resistance	+40℃±2, 90--95%RH,240h,︱△C/C︱≤30%,, ESR≤4 times of specified ESR(25℃)

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
