5.5V 10f Supercapacitor Farad Wound Combined Module For Smart Power Grid

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCS01
Certification :	SGS
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	100000pcs per month
Delivery Time :	20~25 working days

Add to Cart

Product Details
Company Profile

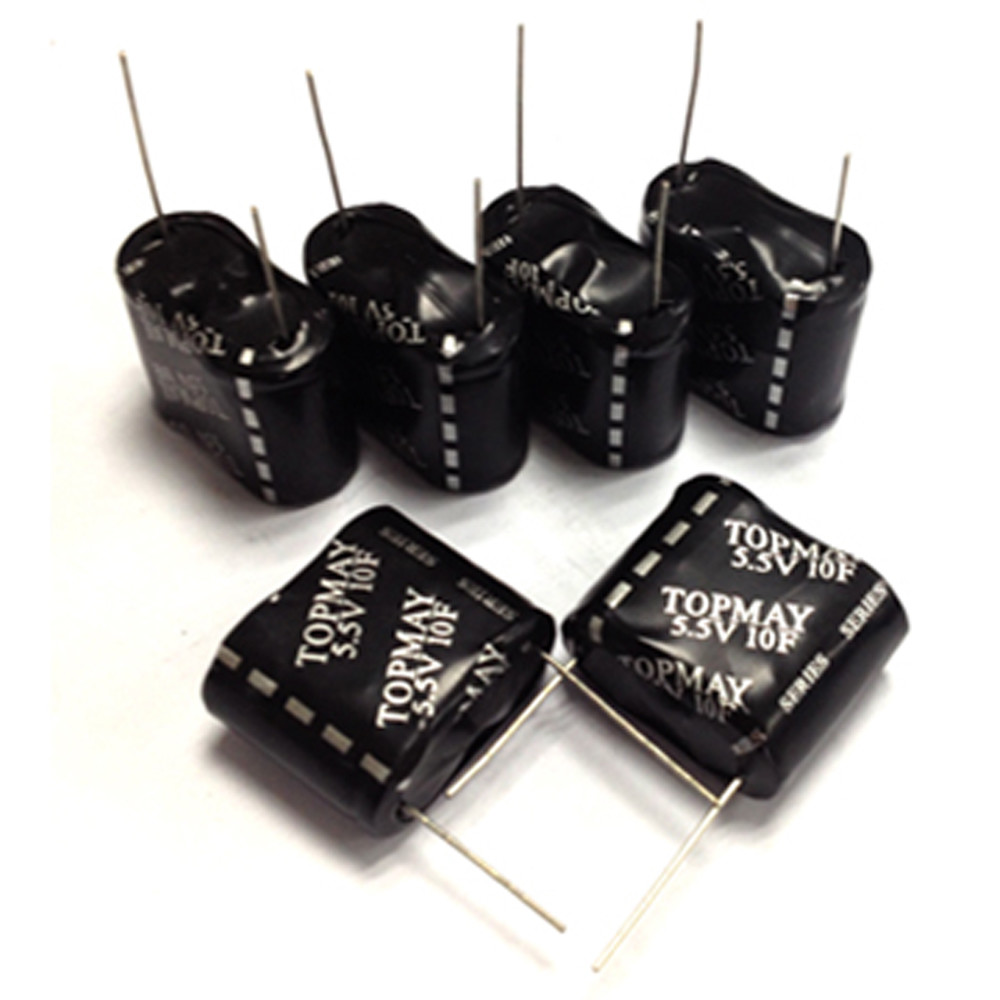

5.5V 10f Supercapacitor Farad Wound Combined Module For Smart Power Grid

Super Capacitor Farad Wound Combined Module 10F 5.5V for Smart Power Grid

Feature:

High voltage withstanding

Low leakage current

Suitable for using in the field need discharge several mA to several A.

Type:TMCS01-106Z5.5VB
Capacitance: 10F
Capacitance Tolerance:-20%~+80%
Working Voltge:5.5V
Surge Voltage:6.0V
Nominal resistance: AC resistance:40mΩ DC resisttance:60mΩ
Working Tempeture:-40~70℃
Storage Temperature:-40~85℃
Cycle life: Standard charge and discharge mode, the charge and discharge loop 1000000 times, |△C/C|≤30%,ESR≤ 4 times initial value(25 ℃)

Usage:

Water meter, Ammeter, Gas meter, Tax machine, Solar lamp, Toys, Electromagnetic Valve, LED, Electric vehicle, Car audio and video, Electric too, Wind power generator, UPS, etc.

General Characteristics:

Items	Wound Module Series Super Capacitor
Rated Voltage	5.0V		5.5V( Three layers)
Working Temperature	-40~85℃		-40~70℃
Capacitance Range	0.47F~5F		0.47F~5F
Capacitance Tolerance	-20%~+80%		-20%~+80%
Product Life	added rated voltage, under room temperature, cycling charge and discharge testing for 200000 times, \|△C/C\|≤30%,ESR≤ 4 times initial value(25 ℃)
	+85℃±2 added rated voltage,1000hrs later,︱△C/C︱≤30%,ESR≤4 times initial value	+70℃±2 added rated voltage,1000hrs later,︱△C/C︱≤30%,ESR≤4 times initial value

Packaging:

Model	Quantity(PCS)			Size of Packaging(L×W×H, mm)		Weight (Kg)
Model	Tray	Inner box	Box	Inner box	Box	Weight (Kg)
TMCS01-106Z2.7VB	40	400	1600	331×228×117	485×355×265	14.6± 0.5

Environmental Characteristics:

ITEM		Specification
1	Temperature Characteristics	︱△C/C︱≤30%,ESR ≤ specified ESR(25℃) at +70℃ ︱△C/C︱≤50%,ESR≤ 4 times of specified ESR(25℃)at -40℃
2	High temperature load	︱△C/C︱≤30%,ESR≤ 4 times of specified ESR(25℃)at +70±2℃/1000hrs/rated voltage
3	High temperature storage	︱ △C/C ︱ ≤30% , ESR≤2 times of specified ESR ( 25℃ ) at +70±2℃/1000hrs/standby after fully charge
4	Humidity Resistance	+40℃±2, 90--95%RH,240h,︱△C/C︱≤30%,, ESR≤4 times of specified ESR(25℃)

Product Dimensions:

Rated Voltage(V)	Capacitance Value(F)	ESR(mΩ@1kHz)	Size(mm)
5.5	0.47	≤850	16.58.515
5.5	1	≤650	16.58.522
5.5	1.5	≤500	16.58.522
5.5	2	≤300	25.512.523
5.5	2	≤300	20.51022
5.5	5	≤200	20.51027.5
5.5	5	≤200	25.512.528
5.0	0.47	≤850	16.58.515
5.0	1	≤650	16.58.522
5.0	1.5	≤500	16.58.522
5.0	2	≤300	25.512.523
5.0	2	≤300	20.51022
5.0	5	≤200	20.51027.5
5.0	5	≤200	25.512.528

5.5V 10f Supercapacitor Farad Wound Combined Module For Smart Power Grid

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
