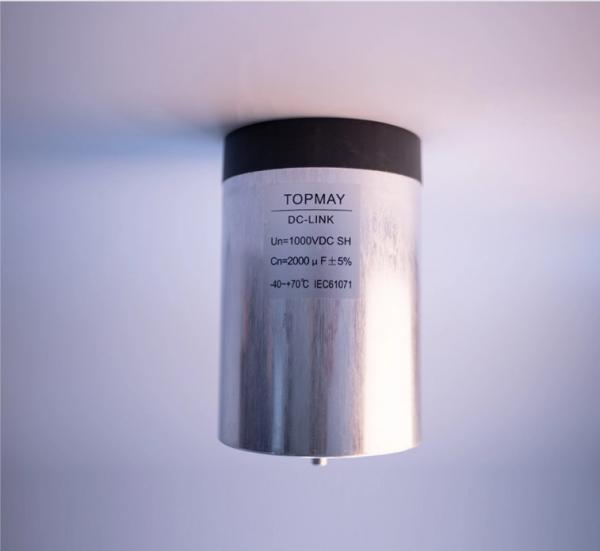

Polypropylene Power Electronic Capacitors 2000uF 1000V DC LINK Capacitor

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCF17
Certification :	SGS( RoHS), UL
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000pcs per month
Delivery Time :	30~40 working days

Add to Cart

Product Details
Company Profile

Polypropylene Power Electronic Capacitors 2000uF 1000V DC LINK Capacitor

Power Electronic Capacitors Polypropylene DC-LINK Capacitor 2000uF 1000V

Brief Introduction
The capacitor for power electronic are use of metal-based thin-film without a sense of style welding,special spray gold
process,molded case,or Myra tape packing,fire-retardant epoxy resin seal, copper bolts, copper nuts or inserts leads.

Features

Used in DC-Link filter circuits,can be replace electrolytic capacitor.
Low ESR,high ripple current handing capabilities.
Low Inductance,self-healing property.
Aluminum case,resin or polyurethane filed.

Applications
·Used in Window Power Capacitor Used in wind power, solar power or other industrial frequency converters.
·Used in DC support filter circuit .
·Vehicles, such as electric and hybrid vehicles
·Welding equipment, elevator, motor drive.

Specifications

Electric Parameter
Capacitance	2000uF
Capacitance Tolerance	±5%
Rated Voltage	1000VDC
Dissipation factor	≤0.002 100Hz
Terminal	M6
Testing Parameter
Test voltage between terminals	1500V.DC/10s, no breakdown
Test voltage terminal to case	3000V.AC/60s, no breakdown
Operating Parameter
Working Temperature	-40~+70℃

Outdrawing & Size(mm)

Package

Polypropylene Power Electronic Capacitors 2000uF 1000V DC LINK Capacitor

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!
