CBB BOX Type Series Polypropylene Film Capacitor 400V 104 224 474 684

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCF17
Certification :	SGS( RoHS), UL
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000pcs per month
Delivery Time :	12~15 working days

Add to Cart

Product Details
Company Profile

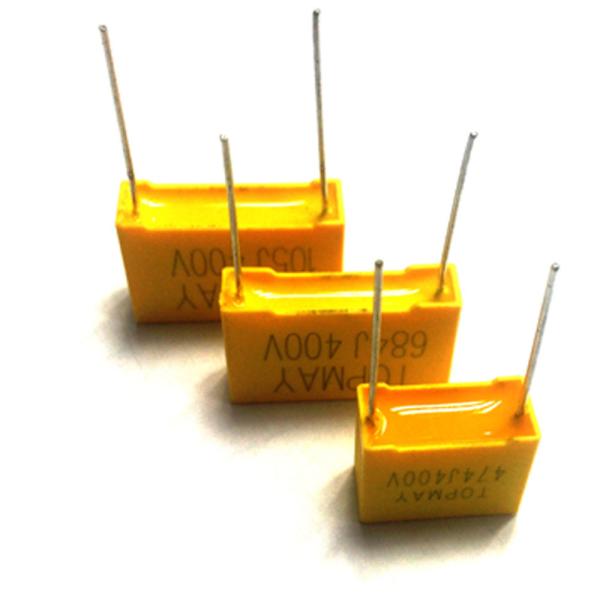

CBB BOX Type Series Polypropylene Film Capacitor 400V 104 224 474 684

CBB BOX Type Series Polypropylene Film Capacitor 400V 104 224 474 684

Features

Box type provides the identical outer appearance.
Excellent flame retardant properties
High Insulation resistance, long life due to self-healing effect.
Very low loss at high frequency, suitable for high current.
Widely used in high frequency, DC, AC and pulse circuits.

Construction

Non-inductive, wound with metallized polypropylene film as the

dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.

Specifications

Product Name	Metallized Polypropyelene Film Capacitor Box Type
Climatic Category	40/105/21
Rated Voltage	400VDC
Capacitance Range	0.1uF,0.22uF,0.47uF,0.68uF
Capacitance Tolerance	10%(K)
Voltage Proof	1.6UR(5s)
Dissipation Factor	≤0.1% (20℃ ,10KHz)
Insulation Resistance (20℃ ,1min)	≥1000MΩ (CR≤ 0.33 uF) ≥500MΩ (CR＞0.33 uF)

Dimensions

Item	W±0.5	H±0.5	T±0.5	D±0.05	L±1	P±0.5
CBB-BOX 104K400V	13	11	5	0.6	22	10
CBB-BOX 224K400V	13	12	6	0.6	22	10
CBB-BOX 474K400V	18	11	6	0.8	22	15
CBB-BOX 684K400V	26.5	17	8.5	0.8	22	22.5

Part Number Naming Rule:

TMCF	17	_	104	K	400V	P10	B
Product Category	Sub-Series		Capacitance	Tolerance-10%	Voltage	Pitch	Packing-bulk

Package Type

CBB BOX Type Series Polypropylene Film Capacitor 400V 104 224 474 684

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

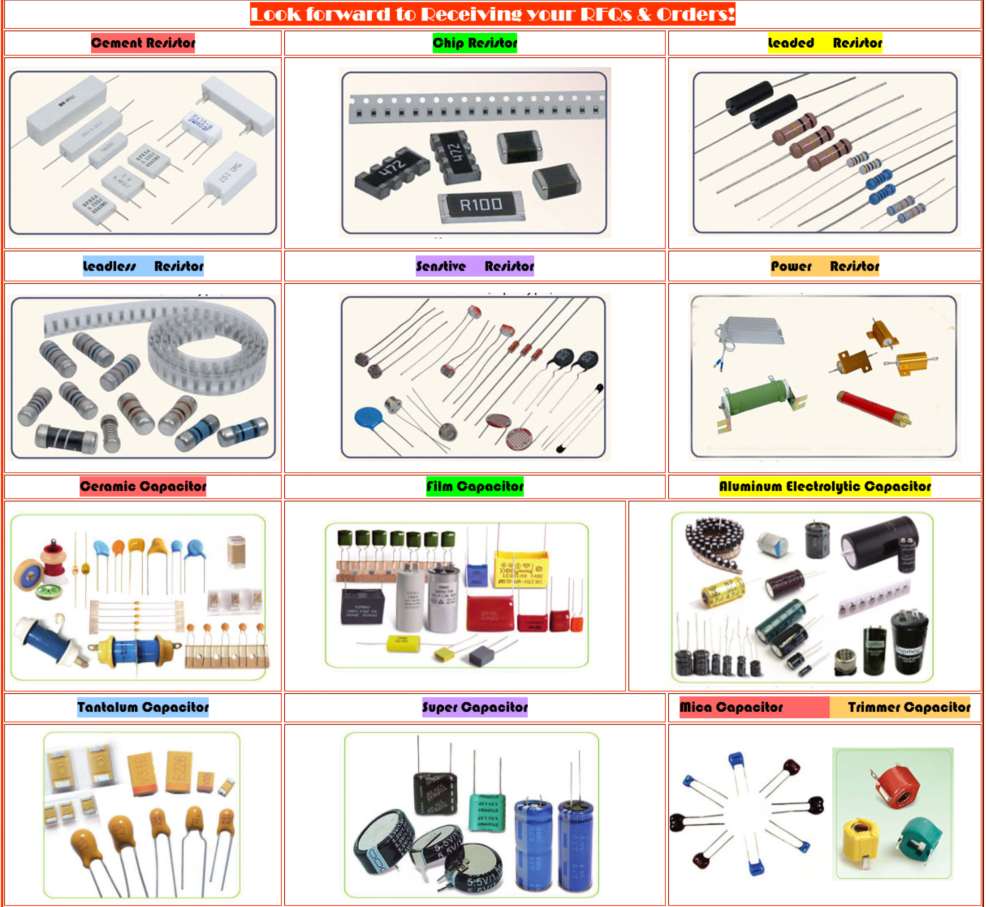

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!
