Double Sided High Voltage Capacitor Metallized Polypropylene Film MMKP82 104J2000V

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCF17
Certification :	SGS( RoHS)
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000pcs per month
Delivery Time :	15~20 working days

Add to Cart

Product Details
Company Profile

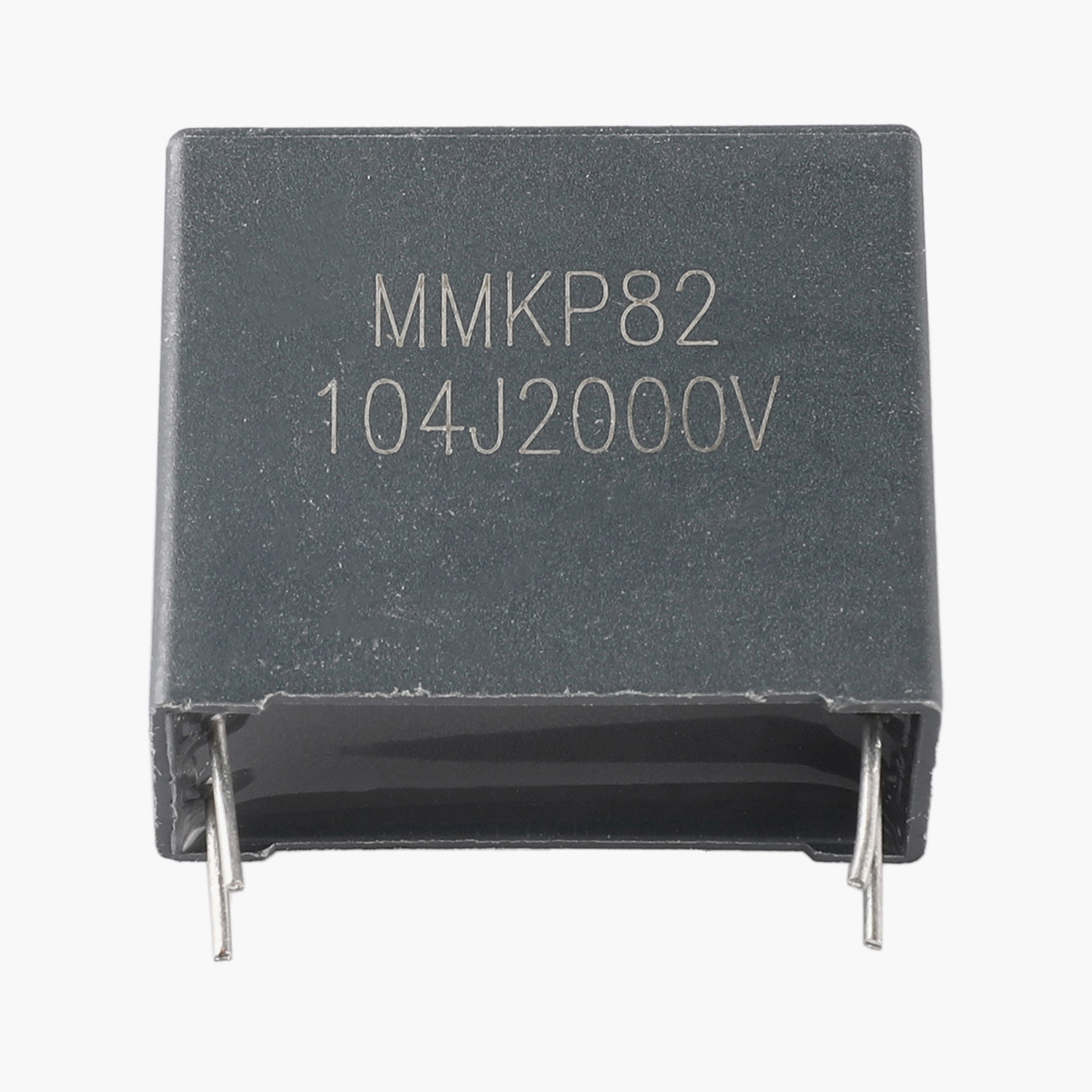

Double Sided High Voltage Capacitor Metallized Polypropylene Film MMKP82 104J2000V

Double Sided High Voltage Metallized Polypropylene Capacitor MMKP82 104J2000V

Features

Doublesided meatallized pplypropylene structure
Box with multiple radial terminals
Snubber , high pulse applications
Low loss and small inherent temperature rise
Exellent active and passive flame resistant circuit

Configuration

With polypropylene fime dielectric,pole with double sided metallized polyester film,

twain section spray-metal form Non-inductive configuration,

Electrode lead unilateralism fetch out and fame retardant epoxy resindip sealed.

Main applications

Snubber capacitor for energy conversion and control in power semiconductor circuits, resonant circuits, protection circuits in SMPSs, induction heaters, high voltage, high current and high pulse applications

Widely used in high voltage, high frenquency and pulse circuit
Used in high power LED drive power supply
Lamp capacitor for electronic ballast
Stage lamp power supply
Charging pile, electric car adapter
Microwave frequency converter
SNUBBER and SCR commutaing circuits

Specifications

Reference Standard	GB/T 10190(IEC 60384-16)
Climatic Category	40/85/21
Operating Temperature Range	-40℃~85℃
Rated Voltage	250V, 400V, 630V, 1000V, 1600V, 2000V
Voltage between terminals	2Un 1 Os
Dissipation Factor	4.0X 10-4 CR≤1 µ F 6.0X 10-4 CR>1 µ F Measured at 100Hz 25'
Capacitance Range	0.0022uF~10uF
Capacitance Tolerance	±5%(J), ±10%(K), ±20%(M)
Insulation resistance	≥100 000 hours CR≤0.33µ F CxRi≥30000s CR> 0.33 µ F 100Vdc 25℃

Product Details:

Double Sided High Voltage Capacitor Metallized Polypropylene Film MMKP82 104J2000V

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
