    Cylindrical Axial Type Polypropylene Film Capacitor MKP Filter 0.15uF 800VDC

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMCF17
    Certification : SGS( RoHS), UL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000pcs per month
    Delivery Time : 30~40 working days
    • Product Details
    • Company Profile

    Cylindrical Axial Type Polypropylene Film Capacitor MKP Filter 0.15uF 800VDC

    Cylindrical Axial Type Polypropylene Film Capacitor MKP Filter Capacitor 0.15uF 800VDC


    General Features


    Products Name: Metallized Polypropylene Film Capacitors

    Product Type: Cylindrical axial type, screw nut terminal

    Product specification: CBB37 800V 0.15uF Φ34×58


    Techinical Requirements

    Operating Temperature Range-40℃~+85℃
    Storage Temperature Range-40℃~+85℃
    Rated Capacitance4.7μF±5%
    Rated Voltage800VDC
    Withstand voltage between terminals UTT1000VDC(10s)
    Pressure resistance between terminal and housing UTC3000VAC·50Hz 10s 20℃
    Loss Tangent tanδ (1KHz)≤0.0015
    Maximum Ripple Current70A at 25℃
    Series Resistance( RS)≤4.0mΩ
    dv/dt80 V/μ S
    Insulation Resistance≥5000 MΩ ·μF
    Self-Inductance≤30nH
    Overvoltage1.1 UR(30% of that with load time)
    1.15 UR(30min/day)
    1.2 UR(5min/day)
    1.3 UR(1min/day)
    1.5 UR(30ms /time,100ms/day)
    Life100000hours(UR,Θ hotspot=70℃)
    Failure rate<100FIT
    Other specificationssee IEC61071

    Outdrawing & Dimension(mm)


    Height L Max46mm
    Diameter Φ Dmax28mm
    Pitch P58(±1) mm
    Terminal diameter dΦ 16 mm
    Screw nutM6*10 mm
    Terminal mounting maximum torque3 Nm

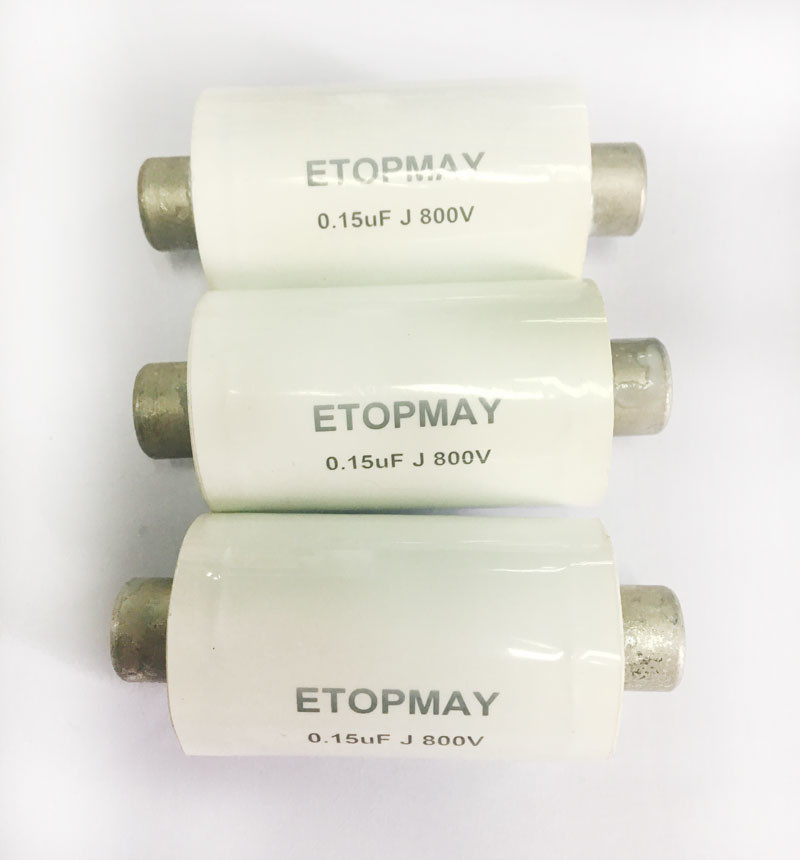

    Product Photos


    Cylindrical Axial Type Polypropylene Film Capacitor MKP Filter 0.15uF 800VDC


    FAQ Of Topmay Capacitor

    1) Can I have a free sample to test ?
    Yes, we could provide free samples to test and check quality. Freight cost is collected.
    2) What is the lead time?
    Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
    3) Do you have any MOQ limit?
    Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
    4) How about price terms?
    We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
    5) What information should I let you know if I want to get a quotation?
    Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.



    Our series of strong products of capacitors can be divided into below types:

    ★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

    ★ Multilayer Ceramic Capacitor( radial, axial and SMD )

    ★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

    ★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

    ★ Tantalum Capacitor(SMD, Radial , Axial )

    ★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

    ★ Mica Capacitor

    ★ Trimmer Capacitor


    And series of resistors which we develop new production lines are as below:

    ★ SMD Resistors

    ★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

    ★ Cement Resistors

    ★ Leadless Resistors( MLEF)

    ★Power Resistor


    More details, Kindly contact us freely!
