CBB81 682J1600V Metallized Polypropylene Capacitor For Electronic
Lighting Ballast
CBB81 capacitors are non-inductively wound with metallized
polypropylene film in series with aluminum foil, and polypropylene
film, with copper-clad steel leads and epoxy resin coating. They
are ideal for high frequency and high pulse rise time circuits, and
find wide applications in snubbers, high voltage power supplies and
electronic lighting ballasts.
Feature
- High corona starting voltage
- High current rating and high dv / dt.
- Series electrode construction.
- Good Self-healing properties.
 | CBB81 Metallized Polypropylene Film Capacitor - Part Number: TMCF14-682J1600VP15A
- Capcitance Value:0.0068uF
- Capacitance Tolerance :±5%(J)
- Rated Voltage 1600Vdc
- Package: Ammo Packing
- Pitch:15mm
- D.F.: 0.1% max. at lKHz, 25℃.
- Dielectric: Polypropylene ( PP)
|
Specifications:
- OPERATING TEMPERATURE: -40℃ -- +85℃
- CAPACITANCE RANGE: 0.001uF -- 0.1uF.
- CAPACITANCE TOLERANCE: ± 5%(J), ± 10%(K).
- RATED VOLTAGE: 1,000 V, 1600V, 2,000VDC .
- DISSIPATION FACTOR: 0.1% max. at lKHz, 25℃.
- INSULATION RESISTANCE: 50,000 MOhm min .
- DIELECTRIC STRENGTH: 150% of rated voltage for 5 sec.
Application:
Electric mosquito bat, Switching power supply, Ultraviolet
disinfection lamp, Ultrasonic mask electrical circuit, etc.

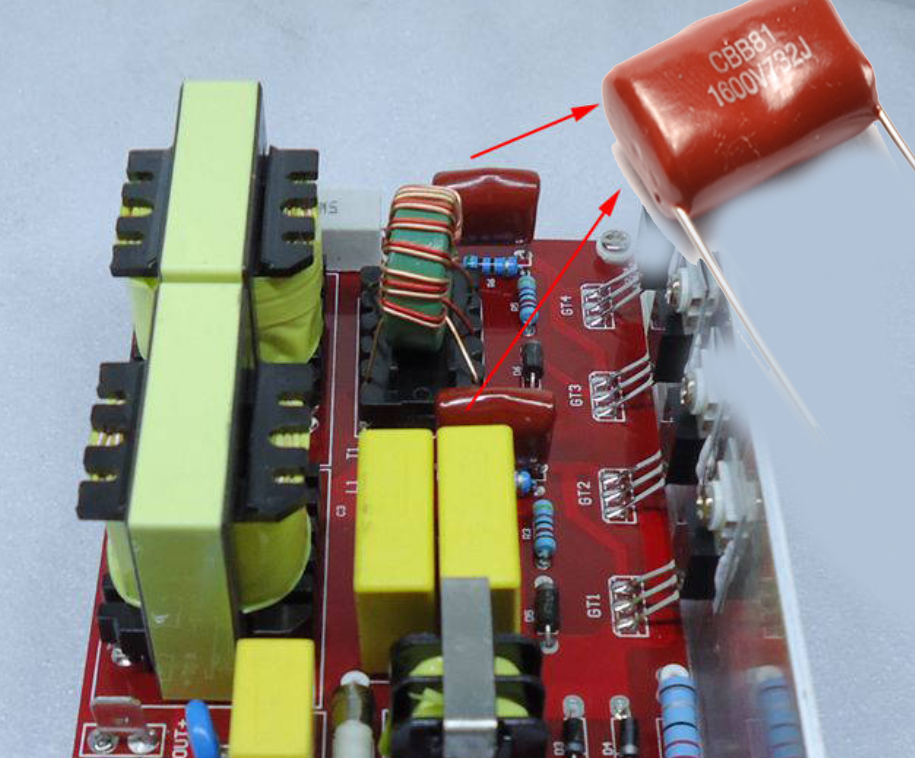

What is the role of CBB81 capacitor?
CBB81 capacitors are commonly used in high pulse, high current
circuits. It can withstand high voltage, high frequency, large
current, mostly used for resonant circuit. CBB81 capacitor is
generally used for electrical appliances that need instant surge of
high current.
CBB21 and CBB81: Although both are polypropylene film capacitors,
there is still a big difference between the two. In some
high-voltage and high-current circuits, CBB21 capacitor is no
longer competent, so CBB81, a new product, is introduced. CBB81
capacitor is wound by single mask + aluminum foil + optical film,
and its structure is more complex than CBB21. But it can withstand
high frequency, high voltage, high current.
CBB81 has the advantage of high frequency, high voltage and high
current resistance, but has the disadvantage of small capacity and
large volume.
