| Brand Name : | ETOPMAY |
| Model Number : | TMCF15 |
| Certification : | SGS( RoHS) |
| Price : | Negotiable |
| Payment Terms : | T/T |
| Supply Ability : | 100000pcs per month |
| Delivery Time : | 15~20working days |

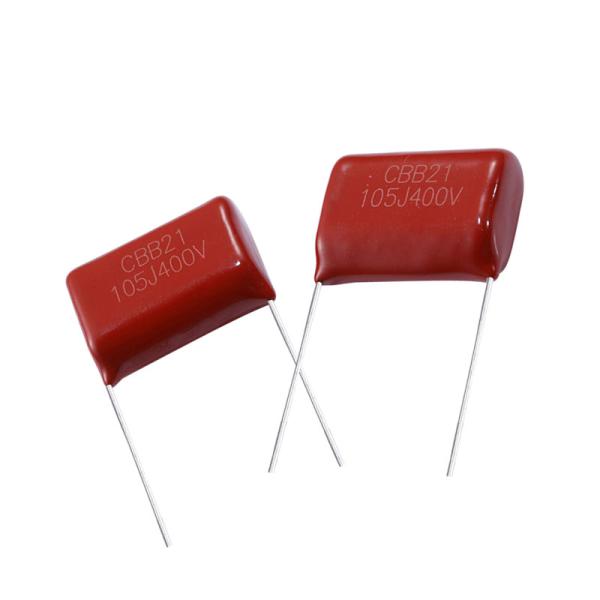

CBB21 105 155 255J 400V Metallized Polypropylene Film Capacitor For Energy Saving Lamps
Product Features
 | CBB21 - Metallized Polypropylene Film CapacitorThe capacitor is made of polypropylene film as the medium and is wound by depositing aluminum on the film as the electrode by means of vacuum evaporation. It has good charateristics as below: Very low loss at high frequency, suitable for high current. High Insulation resistance, long life due to self-healing effect. Widely used in high frequency, DC, AC and pulse circuits. |
Applications
It is widely used for DC pulsation, pulse, and AC voltage reduction
in instruments, meters, TV sets and household electrical
appliances. It is especially suitable for various types of
energy-saving lamps and electronic rectifiers.
Specifications & Outline Drawing
| Product Name | Metallized Polypropylene Film Capacitor |
| ||||||||||||||
| Climatic Category | -40~+105℃ | |||||||||||||||
| Rated Voltage | 400VDC | |||||||||||||||
| Capacitance Range | 1uF, 1.5uF, 2.5uF | |||||||||||||||
| Capacitance Tolerance | ±5%(J) | |||||||||||||||
| Voltage proof | 1.6UR(5s) | |||||||||||||||
| Dissipation Factor | ≤1%(20℃, 1KHz) | |||||||||||||||
| Insulation Resistance (20℃,1min) | ≥7500MΩ (CR≤ 0.33 uF) ≥2500S (CR＞0.33 uF) | |||||||||||||||
Dimensions
105J400V
| W(mm)±1.0 | T(mm)±1.0 | H(mm) | P(mm) | ||||
| 22 | 8.5 | 15 | 20 |
Product Details
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality.
Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production
average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than
that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a
quotation?
Basically for capacitor, it requires to know detailed capacitance
and voltage. If you have more information, such as type, product
photo for reference, you could kindly provide too.
Our series of strong products of capacitors can be divided into
below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65,
CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in ,
Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
And series of resistors which we develop new production lines are
as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
More details, kindly contact us freely!
|
|
