CBB60 AC Motor Run Capacitor For Washing Machine 3.5uF 450VAC Wire
Leads Terminal
Brief Introduction
CBB60 motor run capacitors utilize low-loss metalized polypropylene
film for dielectric. The CBB60 motor run capacitors are
encapsulated with resin and housed in a self-extinguishing plastic
case which allows for superior reliability and a high mechanical
shock and vibration strength. The CBB60 series of motor run
capacitors is ideal for start and run applications in single-phase
asynchronous motors and general A.C. applications at industrial
frequencies. The motor run capacitor is small in bulk, has long
life-span and good self-healing characteristic. The motor run
capacitor is widely used as the start up and running capacitor that
is special for micro water pump, cleaning machine, washing machine,
and single-phase water pump motor.
Features
- ABS, poly (propylene), aluminum shell, etc.,
- Good stability, impact current resistance
- Strong overload capacity
- Small loss, high insulation reistance
- Long rated working life
- Excellent self-healing performance
- Built-in flame retardant epoxy resin filling safety and reliablity
Applications
Mainly used in refrigerators, air conditioners, AC motors, water
pumps, generators, cleaning machines, household appliances,
electronic products and so on.
Specifications
| No. | Items | Specifications |
| 01 | Capacitance | 3.5μF ±5% |
| 02 | Rated Voltage | 450VAC |
| 03 | Life Class | C |
| 04 | Dielectric Material | Metallized Polypropylene Film |
| 05 | Rated Frequency | 50/60Hz |
| 06 | Between Terminals Withstand voltage | Applied voltage of 900VAC between two terminals for 60s, no
phenomenon of breakdown and spark over. |
| 07 | Terminals to case Withstand voltage | Applied voltage of 2500VAC to terminals to case for 60s, no
phenomenon of breakdown and spark over. |
| 08 | Loss Tangent | Less than 0.002(100Hz) |
| 09 | Size(mm) | 30*60 |
| 10 | Terminals | 2+2 Lug Pin or Flexible Wire leads |
| 11 | Case material | PP |
| 12 | Explosion-proof | S0 |
| 13 | Climatic Category | 40/85/21 |
Mechanical Property
| No. | Items | Standard Reference |
| 1 | Lead-end Strength: The capacitor has been subjected to the
following test, and the exterior should not be damaged. .Tensile
Force: 20N, 0.5 square mm at least for external lead | The exterior should not be damaged. |
| 2 | Vibration: vibration frequency 10-55Hz, amplitude 0.35mm X.Y.Z,
Each axis has 10 frequency cycles per minute, 1 times per minute | No change for capacitance value |
| 3 | Damp heat test :Severity 21days | The change of capacitance value is less than 0.5% |

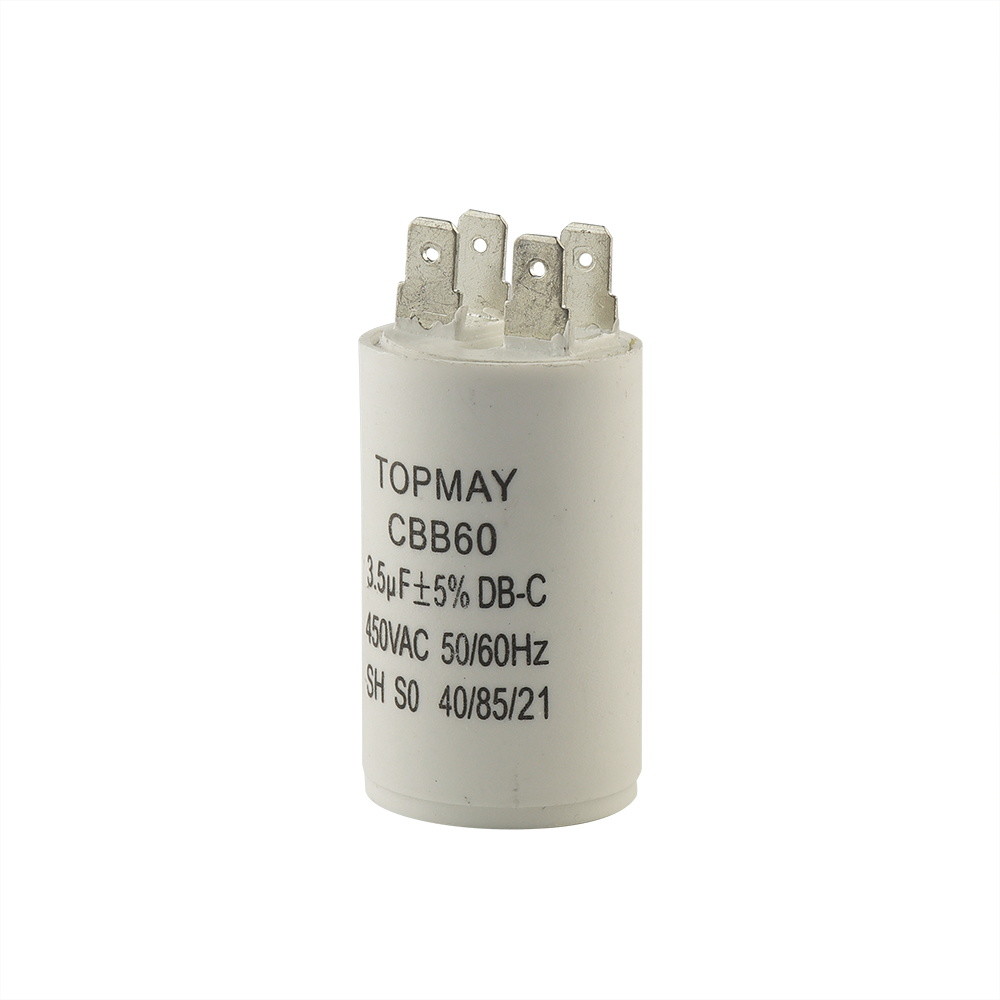

Product Photos
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality.
Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production
average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than
that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a
quotation?
Basically for capacitor, it requires to know detailed capacitance
and voltage. If you have more information, such as type, product
photo for reference, you could kindly provide too.
