CBB65 Motor Run Capacitor 50uF 450VAC Round-Shaped For Air Conditioner

    Buy cheap CBB65 Motor Run Capacitor 50uF 450VAC Round-Shaped For Air Conditioner from wholesalers

    Buy cheap CBB65 Motor Run Capacitor 50uF 450VAC Round-Shaped For Air Conditioner from wholesalers
    • Buy cheap CBB65 Motor Run Capacitor 50uF 450VAC Round-Shaped For Air Conditioner from wholesalers
    • Buy cheap CBB65 Motor Run Capacitor 50uF 450VAC Round-Shaped For Air Conditioner from wholesalers
    • Buy cheap CBB65 Motor Run Capacitor 50uF 450VAC Round-Shaped For Air Conditioner from wholesalers

    CBB65 Motor Run Capacitor 50uF 450VAC Round-Shaped For Air Conditioner

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMCF23
    Certification : SGS( RoHS)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000000pcs per month
    Delivery Time : 15~20 working days
    • Product Details
    • Company Profile

    CBB65 Motor Run Capacitor 50uF 450VAC Round-Shaped For Air Conditioner

    CBB65 Motor Run Capacitor for Air Conditioner 50uF 450VAC Round-Shaped


    Brief Introduction

    CBB65 motor run capacitors offer outstanding electrical characteristics, high capacitance stability over time and temperature, and very low internal power losses (Dissipation Factor). Case is aluminum round-shaped cans and standard terminations are 2- or 4-spade quick-disconnect terminals. Options available at an added cost include bleeder resistors and mounting brackets.


    Features

    • Cylindrical aluminum shell, small volume, light weight.
    • Excellent electrical performance, low loss, with good self-healing characteristics.
    • Internal pressure explosion-proof device, safe and reliable use.

    Applications

    CBB65 starting capacitors are widely used in the start-up and operation of single-phase motors powered by 50Hz/60Hz AC power supply, such as household air conditioners, and power factor compensation of high-power lighting fixtures.


    Specifications


    No.ItemsSpecifications
    01Capacitance50μF ±5%
    02Rated Voltage450VAC
    03Life ClassC
    04Dielectric MaterialMetallized Polypropylene Film
    05Rated Frequency50/60Hz
    06Between Terminals Withstand voltageApplied voltage of 740VAC between two terminals for 60s, no phenomenon of breakdown and spark over.
    07Terminals to case Withstand voltageApplied voltage of 2500VAC to terminals to case for 60s, no phenomenon of breakdown and spark over.
    08Loss TangentLess than 0.002(100Hz)
    09Size(mm)50*125
    10Terminals0.5 square RV wire, crimping ends, stripped wire length=6mm, cooper shell: 4mm
    11Climatic Category40/85/21
    12Explosion-proofS2
    13Case materialAluminum
    14Terminal

    250#

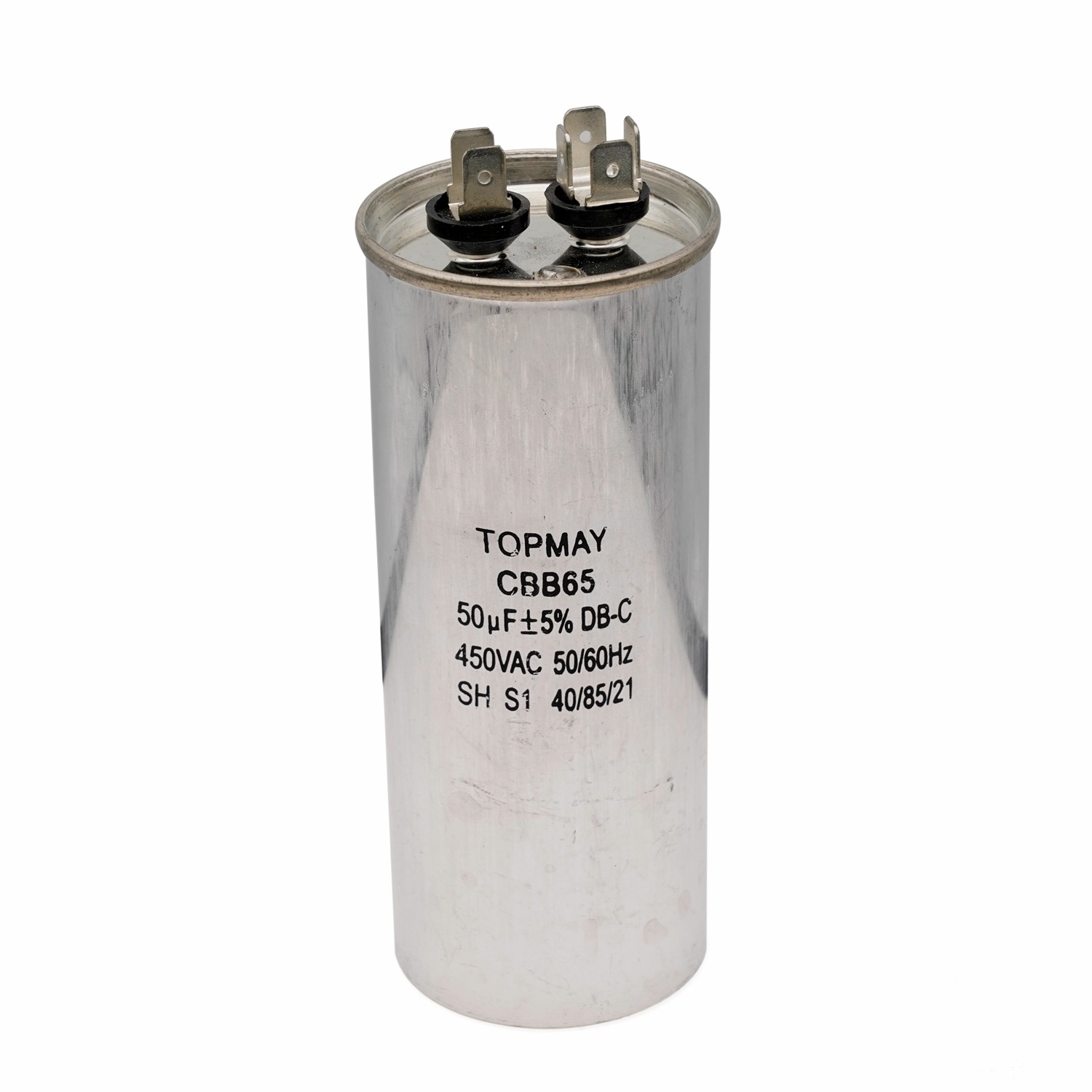

    Product Photos

    CBB65 Motor Run Capacitor 50uF 450VAC Round-Shaped For Air Conditioner



    FAQ Of Topmay Capacitor


    1) Can I have a free sample to test ?
    Yes, we could provide free samples to test and check quality. Freight cost is collected.

    2) What is the lead time?
    Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

    3) Do you have any MOQ limit?
    Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

    4) How about price terms?

    We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

    5) What information should I let you know if I want to get a quotation?

    Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
