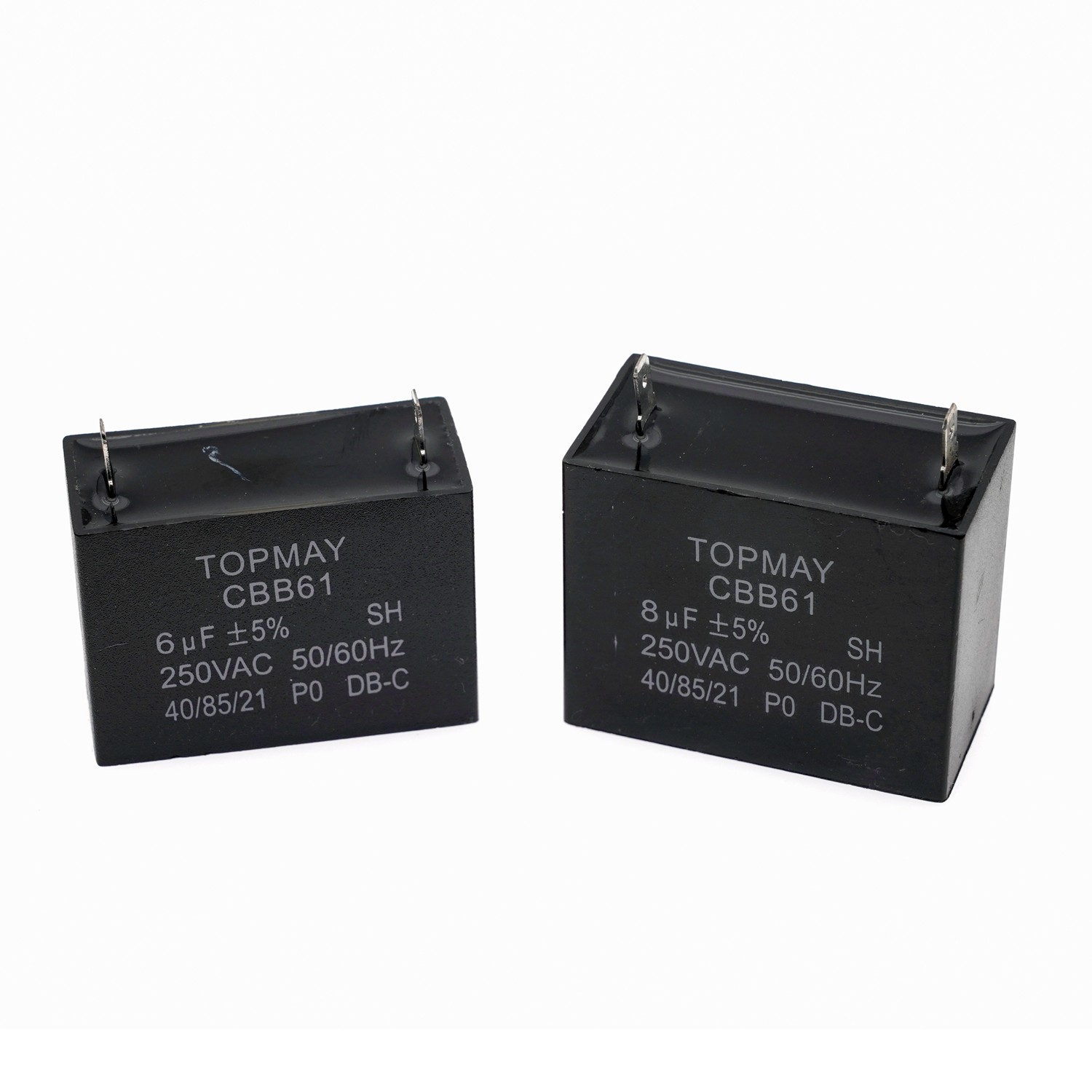

Metallized Polypropylene Film Capacitor for AC ( CBB61)
Features
Box Type provides the identical outer apperance
Very Low lose at high frequency, suitable for high current.
High inxulation resistance, long life due to self-healing effect.
Applicable to the start-up and operation of 50Hz/60HZ singlephase
motor.
CBB61 capacitor uses zn-Al metal film with thickened edge as
electrode and medium. Then in ABS or PBT cubic plastic shell filled
with flame retardant epoxy resin. This product has a small volume,
good performance, product grade B, service life of 10000 hours.
Scope of application: Suitable for starting and running of
single-phase motors with relatively small ac power supply power of
50Hz/60HzIt is an important supporting part of electric fan, range hood, air
conditioning fan, toaster and so on.
Structures:
1. The capacitor core is wound by metallized organic film.
2. Plastic shell, flame retardant epoxy resin encapsulation, single
capacitor core or multiple capacitor core can be installed in one
shell.
3. Installation components include plastic ears and iron ears.
4. The leading mode includes plastic sealing lead wire, tinned
copper needle, fast connection terminal, welding ear, etc.
Specifications
| Type | CBB61 |
| Rated Capacitance | 1uF~20uF |
| Capacitance Tolerance | ±5%(J) |
| Rated Voltage | 250VAC~450VAC |
| Rated Frequency | 50/60Hz |
| Loss Tangent (DF) | ≤0.0020(( 100Hz) |
| Climatic Type | 40/70/21 |
| Withstanding voltage between terminals | 800VAC/60s |
| Capacitor Core | Metallized polypropylene Film |
| Explosion-proof | S0 |
| Climatic category | 40/70/21 |
| Terminal | Double Lug / Wire |
Diamensions for reference:
| No. | Specification | Box Size |
| Capacitance | Voltage | Width(mm) | Thickness(mm) | Height(mm) |
| TMCF25-305J400VB | 3uF | 400VAC | 48 | 18 | 29 |
| TMCF25-405J400VB | 4uF | 400VAC | 48 | 18 | 29 |
| TMCF25-505J400VB | 5uF | 400VAC | 48 | 18 | 29 |
More size information, we will provide when detailed quotation.
