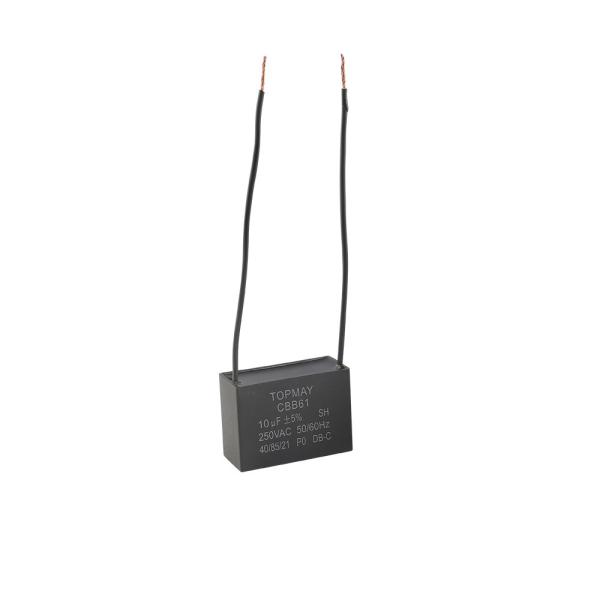

    CBB61 AC 10uF Motor Capacitor 250VAC Wire Leads Terminal For Electric Pump

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMCF25
    Certification : SGS( RoHS)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000pcs per month
    Delivery Time : 15~20 working days
    • Product Details
    • Company Profile

    CBB61 AC 10uF Motor Capacitor 250VAC Wire Leads Terminal For Electric Pump

    AC Motor Capacitor For Electric Pump CBB61 10uF 250VAC Wire Leads Terminal


    Features

    Box Type provides the identical outer apperance

    Very Low lose at high frequency, suitable for high current.

    High inxulation resistance, long life due to self-healing effect.

    Applicable to the start-up and operation of 50Hz/60HZ singlephase motor.


    CBB61 type capacitor gengrally use the quadrate anti-flaming plastic shell,epoxy resin packing .The type is of little shape and light weight,little wastage,high insulation resistance,excellent natural repair,good stability,suitable for alternating current circuit.

    This type capacitor is suitbale used in the frequency of 50-60Hz,voltage from 250v-500v single shase AC motors,fan,water pump etc.For starting and running .


    Structures:


    1. The capacitor core is wound by metallized organic film.

    2. Plastic shell, flame retardant epoxy resin encapsulation, single capacitor core or multiple capacitor core can be installed in one shell.

    3. Installation components include plastic ears and iron ears.

    4. The leading mode includes plastic sealing lead wire, tinned copper needle, fast connection terminal, welding ear, etc.


    Specifications

    DescriptionCBB61 Motor Capacitor
    Rated Capacitance10uF
    Capacitance Tolerance±5%(J)
    Rated Voltage250VAC
    Life ClassClassB:10000hrs, ClassC:3000hrs
    Rated Frequency50/60Hz
    Loss Tangent (DF)≤0.0020(( 100Hz)
    Operating Temperature-40~+85℃
    Withstanding voltageT-T:1.75Un/2s T-C:2200VAC/2s
    Capacitor CoreMetallized polypropylene Film
    Explosion-proofS0
    TerminalFlexible Wires

    CBB61 AC 10uF Motor Capacitor 250VAC Wire Leads Terminal For Electric Pump

    Diamensions for reference:


    No.SpecificationBox Size
    CapacitanceVoltageWidth(mm)Thickness(mm)Height(mm)
    TMCF25-305J400VB3uF400VAC481829
    TMCF25-405J400VB4uF400VAC481829
    TMCF25-505J400VB5uF400VAC481829

    More size information, we will provide when detailed quotation.


    TOPMAY's CBB61 Capacitors could be widely used in diffierent fields.


    Our series of strong products of capacitors can be divided into below types:

    ★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

    ★ Multilayer Ceramic Capacitor( radial, axial and SMD )

    ★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

    ★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

    ★ Tantalum Capacitor(SMD, Radial , Axial )

    ★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

    ★ Mica Capacitor

    ★ Trimmer Capacitor


    And series of resistors which we develop new production lines are as below:

    ★ SMD Resistors

    ★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

    ★ Cement Resistors

    ★ Leadless Resistors( MLEF)

    ★Power Resistor
