CBB60 Motor Run Capacitor 1+2uf 250VAC Twin Tub Washing Machine

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCF23
Certification :	SGS( RoHS)
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000pcs per month
Delivery Time :	15~20 working days

Add to Cart

Product Details
Company Profile

CBB60 Motor Run Capacitor 1+2uf 250VAC Twin Tub Washing Machine

CBB60 1+2uf 250VAC Twin Tub Washing Machine Motor Run Capacitor

Features of CBB60 capacitor

◆Non induction winding structure of metallic polypropylene membrane.

◆Small in bulk, long life-span and good self-healing characteristic.

◆High insulating resistance, little temperature changing inside, excellent stability of capacitance.

◆Non-toxic and non-leaking, environmental friendly.

Usages of CBB60 capacitor

◆Suitable for starting and operating 50HZ(60HZ)AC single-phase electromotor.

◆Widely used as the start-up and running capacitor that is special for micro water pump, cleaning machine, washing machine and single-phase household electrical appliance.

Alternate design of CBB60 capacitor

◆Use round plastic shell and insulation sealed lid for sealing, plastic lid for sealing or resin for sealing.

◆Flat bottom or fixing stud M8*12.

◆Fasten terminals, Lug, wire, cable.

◆Plastic can, ABS, PC.

Specifications

Capactiance Range	1+2uF
Capacitance Tolerance	±5%
Rated Alternate Voltage	250VAC
Rated Frequency	50/60HZ
Operating Temp	-25~+70
Insulation Resistance	T-T ≥3000MΩ.uf(20℃.100VDC) T-T ≥2000MΩ.uf(20℃.100VDC)
Dissipation Factor	Tanε≤0.002(100HZ,20℃)
Endurance Voltage	Between the eletrodes: 2.0Un2S Between the eletrode and the shell: 2000vac 2S

Mechanical Property

No.	Items	Standard Reference
1	Lead-end Strength: The capacitor has been subjected to the following test, and the exterior should not be damaged. .Tensile Force: 20N, 0.5 square mm at least for external lead	The exterior should not be damaged.
2	Vibration: vibration frequency 10-55Hz, amplitude 0.35mm X.Y.Z, Each axis has 10 frequency cycles per minute, 1 times per minute	No change for capacitance value
3	Damp heat test :Severity 21days	The change of capacitance value is less than 0.5%

Product Photos

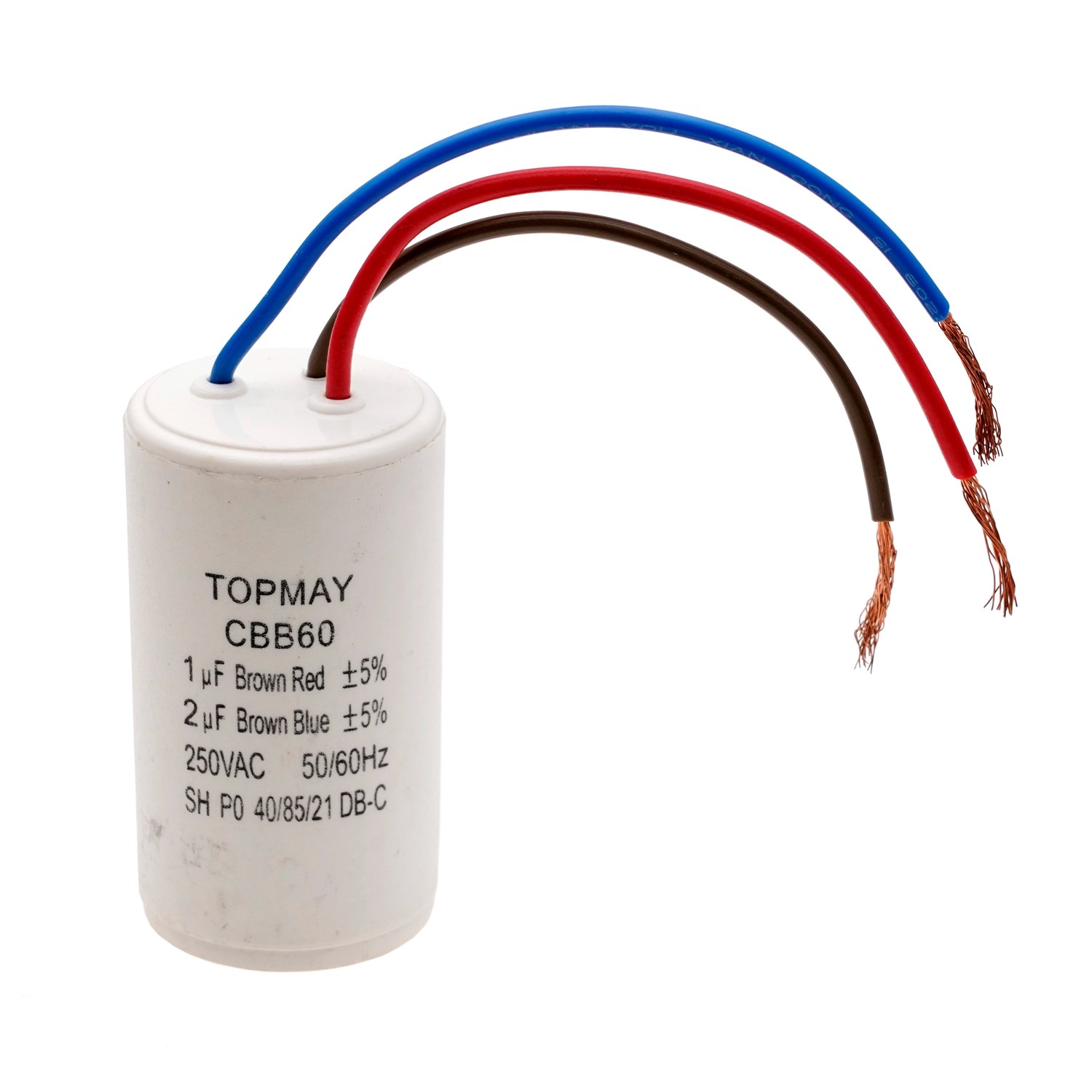

CBB60 Motor Run Capacitor 1+2uf 250VAC Twin Tub Washing Machine

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
