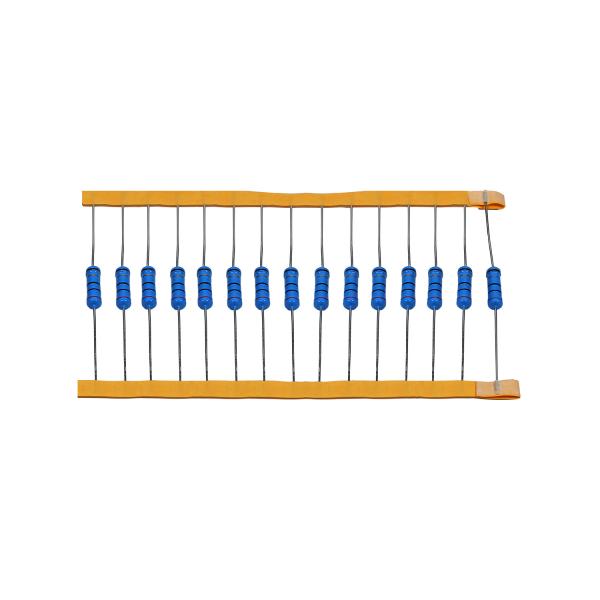

1Ω~10MΩ 1% Metal Film Resistor 1/8W 2W Low Tcr Resistor For Audio

    Buy cheap 1Ω~10MΩ 1% Metal Film Resistor 1/8W 2W Low Tcr Resistor For Audio from wholesalers

    Buy cheap 1Ω~10MΩ 1% Metal Film Resistor 1/8W 2W Low Tcr Resistor For Audio from wholesalers
    • Buy cheap 1Ω~10MΩ 1% Metal Film Resistor 1/8W 2W Low Tcr Resistor For Audio from wholesalers
    • Buy cheap 1Ω~10MΩ 1% Metal Film Resistor 1/8W 2W Low Tcr Resistor For Audio from wholesalers
    • Buy cheap 1Ω~10MΩ 1% Metal Film Resistor 1/8W 2W Low Tcr Resistor For Audio from wholesalers
    • Buy cheap 1Ω~10MΩ 1% Metal Film Resistor 1/8W 2W Low Tcr Resistor For Audio from wholesalers

    1Ω~10MΩ 1% Metal Film Resistor 1/8W 2W Low Tcr Resistor For Audio

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMRM
    Certification : SGS( RoHS)
    Price : 0.006~0.01
    Payment Terms : T/T
    Supply Ability : 1000000pcs per month
    Delivery Time : 12~15 working days
    • Product Details
    • Company Profile

    1Ω~10MΩ 1% Metal Film Resistor 1/8W 2W Low Tcr Resistor For Audio

    Metal Film Resistor 1Ω~10MΩ 1% 1/8W 1/4W 1/2W 1W 2W for Audio

    Feature:

    High stability

    Low TCR

    Low noise coefficient

    Excellent high frequency characteristic


    Application: Entertainment system, TV, Audio, Power supply, Meter/Instruments system, Automation system


    Part Number:


    TMRM-1 2 3 456 789 10
    Produce Code TMRM: Precision Metal Film ResistorResistance Value Code: Three digits: The first two digits are significant figures and the third one denotes number of zeros. 394=390KΩ Four digits: The first three digits are Significant figures and the fourth one denotes number of zeros.1201=1.2K ΩTolerance F=±1% G= ±2% J=± 5%Rated Power: One digits: 1= 1W 2= 1/2W 3= 3/4W 4= 1/4W 8= 1/8W L= 1/10W M=1/16W N=1/20W O=1/32W Two digits: XS=2WS YS=3WS...Packaging T:tape&reel B:bulkTerminal: empty value: general type F:Vertical form M:Horizontal form
    -

    Dimension(mm):


    TypeDimensions
    Normal SizeSmall SizeI±2.0L±1.0φDφd±0.05H±2.0
    8(1/8W)4S(1/4WS)603.21.8±0.50.4027
    4(1/4W)2S(1/2WS)606.52.3±0.50.4326
    2(1/2W)1S(1WS)609.03.2±0.50.5026
    1(1W)XS(2WS)6011.54.5±1.00.6825
    7311.54.5±1.00.6831
    X(2W)YS(3WS)6015.55.0±1.00.6823
    8115.55.0±1.00.6833
    Y(3W)ZS(5WS)9417.56.0±1.00.6838
    Z(5W)9424.58.0±1.00.6835

    Construction:


    No.Components
    ACeramic core
    BMetal Film
    CCaps
    DEpoxy resin painting
    EColor code
    FSoldered or tinned annealed wire.

    Electrical Characteristics:


    TypeRated PowerMax Working VoltageMax Overload voltageDielectric withstanding voltageResistance RangeOperation
    Temperature
    T.C.R. PPM/℃
    8(1/8W)0.125W150V300V300V1Ω~10MΩ-55℃~+155
    R≤10: 200
    R>10: 100
    4/1/4W)0.25W200V500V350V1Ω~10MΩ
    2(1/2W)0.5W300V700V400V1Ω~10MΩ
    1(1W)1W350V800V450V1Ω~10MΩ
    X(2W)2W500V800V450V1Ω~10MΩ
    Y(3W)3W500V800V500V1Ω~10MΩ
    Z(5W)5W500V1000V500V1Ω~10MΩ
    4S(1/4WS) small size0.25W150V300V300V1Ω~10MΩ
    2S(1/2WS) small size0.5W250V700V350V1Ω~10MΩ
    1S(1WS) small size1W350V800V400V1Ω~10MΩ
    XS(2WS) small size2W500V800V450V1Ω~10MΩ
    YS(3WS) small size3W500V1000V450V1Ω~10MΩ
    ZS(5WS) small size5W500V1000V500V1Ω~10MΩ

    PowerDimension(mm)
    L±1D±0.5d±0.05P±1W1±1W2±1
    1/8W(1/4WS)3.501.700.405.0052.0064.00
    1/4W(1/2WS)6.002.300.405.0052.0064.00
    1/2W(1WS)9.003.200.485.0052.0064.00
    1W(2WS)11.004.500.685.0063.0075.00
    2W(3WS)15.005.000.685.0068.0080.00
    3W(5WS)17.006.000.6810.0071.0083.00


    PowerDimension(mm)
    L±1D±0.5d±0.05H±2
    1/8W(1/4WS)3.501.700.4027.00
    1/4W(1/2WS)6.002.300.4026.00
    1/2W(1WS)9.003.200.4824.00
    1W(2WS)11.004.500.6829.00
    2W(3WS)15.005.000.6830.00
    3W(5WS)17.006.000.6830.00
