5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCV01
Certification :	SGS( RoHS)
Price :	0.09~0.1USD/pcs
Payment Terms :	T/T
Supply Ability :	100000pcs per month
Delivery Time :	12~15 working days

Add to Cart

Product Details
Company Profile

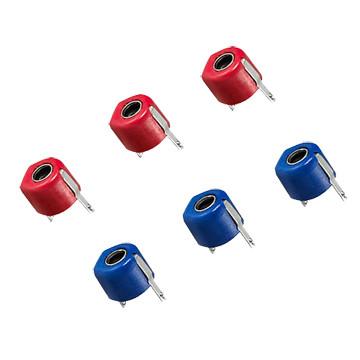

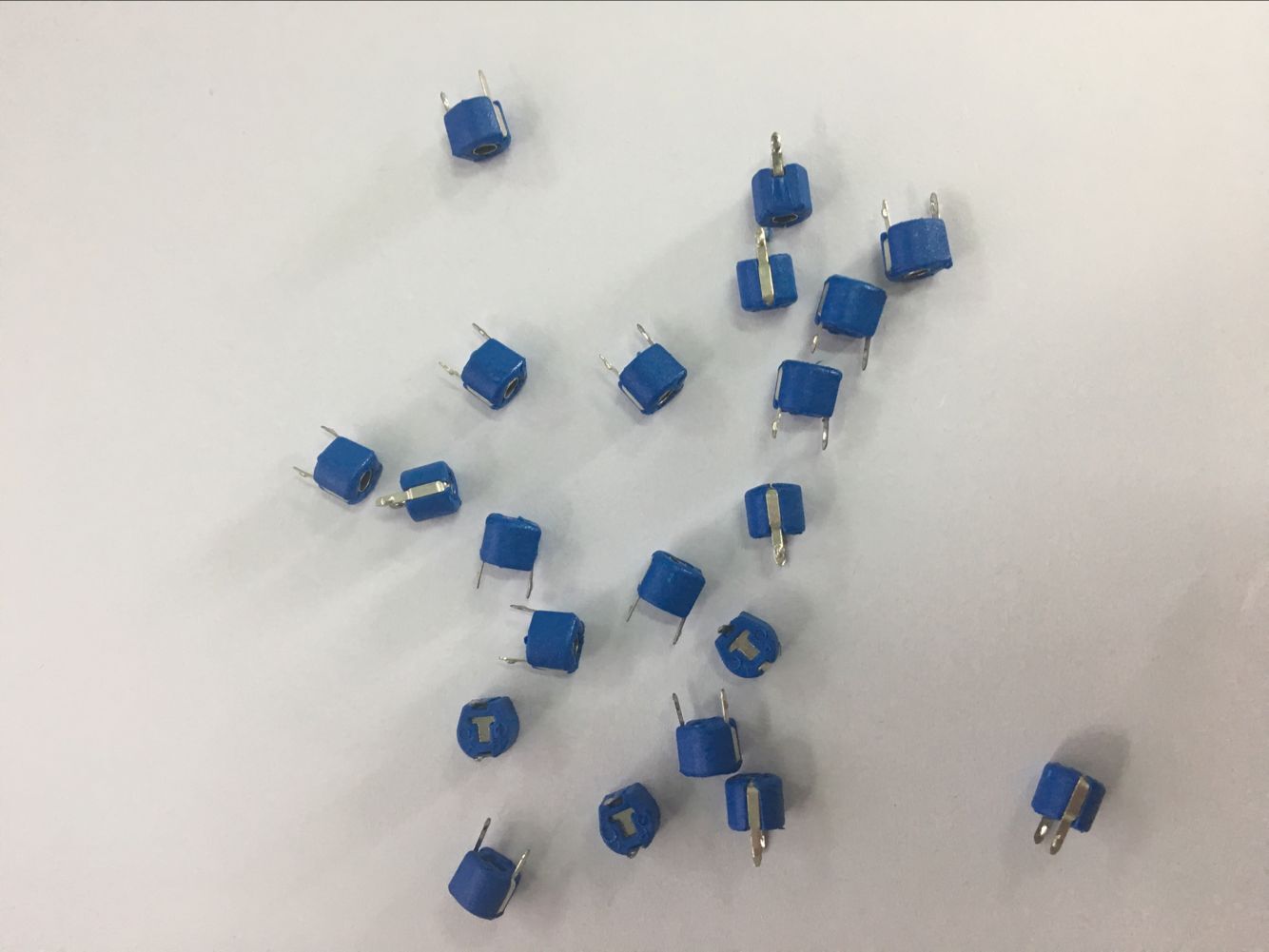

5pF 100V Ceramic Trimmer Capacitor Blue For Crystal Filter

Ceramic Capacitor Trimmer Capacitor Blue 5pF 100V for Crystal filter
Features

Small and thin size.
New shape of cover can improve the flux invasion compared with current products.
Improvement of the adhesion between rotor and stator leads to superior stability.
Unique construction with no plastic material provides superior soldering heat resistance to maintain excellent characteristic performance after reflow soldering.
Suitable for high frequency circuit due to high self-resonant frequency.

Application
Crystal oscillators, Crystal filters, pagers, cordless telephones, PHS, hand radios, cellular telephones, remote keyless entry systems, W-LAN, etc.

Specifications

Capacitance(pF)		Temperature coefficient(ppm/℃)	Q factor( 1MHz, Cmax)	Marking color
Min	Max	Temperature coefficient(ppm/℃)	Q factor( 1MHz, Cmax)	Marking color
1.6 or less	4.00+50%	NP0±300	≥500	Black
2.0 or less	5.00+50%	NP0±300	≥500	Blue
3.0 or less	1000+50%	N750±300	≥500	White
5.5 or less	20.00+50%	N750±300	≥500	Red
6.5 or less	300+50%	N1200±300	≥500	Green
12.0 or less	500+50%	N1200±300	≥300	Yellow
15.0 or less	600+50%	N2200±300	≥300	Brown

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
