6mm Ceramic Trimmer Capacitor White 10pF 100V For Remote Keyless Equipment

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCV01
Certification :	SGS( RoHS)
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	100000pcs per month
Delivery Time :	12~15 working days

Add to Cart

Product Details
Company Profile

6mm Ceramic Trimmer Capacitor White 10pF 100V For Remote Keyless Equipment

6mm Ceramicr Trimmer Capacitor White 10pF 100V For Remote Keyless Equipment

Ceramic trimmer capacitor uses ceramic as the medium, is the more common variable capacitor. The semi-circular silver layer is plated on the moving plate (porcelain plate) and fixed plate (porcelain plate), and the electric capacity can be changed by rotating the moving plate to change the distance between the two silver plates

Features

Small and thin size.
New shape of cover can improve the flux invasion compared with current products.
Improvement of the adhesion between rotor and stator leads to superior stability.
Unique construction with no plastic material provides superior soldering heat resistance to maintain excellent characteristic performance after reflow soldering.
Suitable for high frequency circuit due to high self-resonant frequency.

Application
Crystal oscillators, Crystal filters, pagers, cordless telephones, PHS, hand radios, cellular telephones, remote keyless entry systems, W-LAN, etc.

Specifications

Capacitance(pF)		Temperature coefficient(ppm/℃)	Q factor( 1MHz, Cmax)	Marking color
Min	Max	Temperature coefficient(ppm/℃)	Q factor( 1MHz, Cmax)	Marking color
1.6 or less	4.0+50%	NP0±300	≥500	Black
2.0 or less	5.0+50%	NP0±300	≥500	Blue
3.0 or less	10.0+50%	N750±300	≥500	White
5.5 or less	20.0+50%	N750±300	≥500	Red
6.5 or less	30.0+50%	N1200±300	≥500	Green
12.0 or less	50.0+50%	N1200±300	≥300	Yellow
15.0 or less	60.0+50%	N2200±300	≥300	Brown

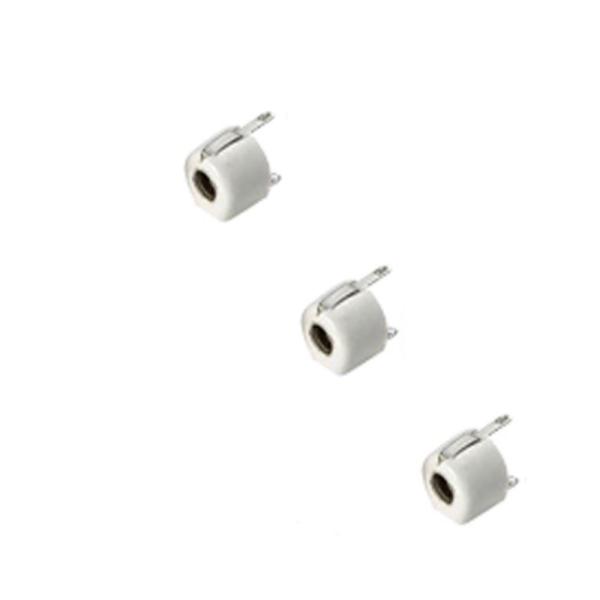

Product Photo for reference
6mm Ceramic Trimmer Capacitor White 10pF 100V For Remote Keyless Equipment

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
