Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%

    Buy cheap Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5% from wholesalers

    Buy cheap Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5% from wholesalers
    • Buy cheap Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5% from wholesalers
    • Buy cheap Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5% from wholesalers
    • Buy cheap Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5% from wholesalers

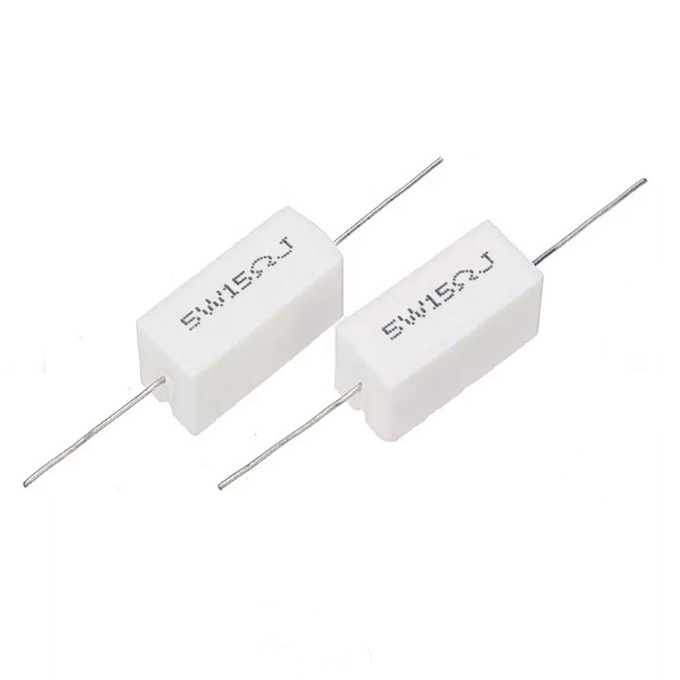

    Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMRSQ01
    Certification : SGS( RoHS)
    Price : Negotiable
    Payment Terms : T/T
    Delivery Time : 15~20 working days
    • Product Details
    • Company Profile

    Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%

    Wirewound Resistor 5W15ΩJ SQP Ceramic Cement Resistor 5W 15ohm 5%


    Feature:

    • Low noise.
    • Excellent insulation being used in PCB.
    • In stand overload capability.
    • Long term stability.
    • Excellent heat dissipation.
    • Small linear temperature coefficient.
    • Metal oxide film cutting core can offer high range resistance (1Ω~100KΩ)
    • Operating temperature range Wire wound: - 40℃ ~ + 155℃
    • Metal oxide film: - 55℃ ~ + 155℃
    • Temperature around freezing lattice: 1W~10W 70℃ 15W above 25℃

    Application:

    Entertainmentsystem, Power supply,Meter/Instruments system



    Rating PowerDimensions
    L±1.0W±0.5H±0.5A±2.0B±2.0D±2.0
    1W14.506.506.5020.00200.55
    3W22.008.008.0022.00220.65
    5W22.009.509.5025.00250.75
    7W35.009.509.5025.00250.75
    10W48.009.509.5025.00250.75
    15W48.0012.5012.5025.00250.75
    20W63.0012.5012.5025.00250.75
    30W75.0019.5019.5025.00250.75
    50W90.0019.5019.5022.00220.75
    100W133.0024.0021.0022.00220.75

    Construction:


    NO.Components
    APadding materials
    BTinned copper lead wire
    CCeramic shell
    DFiberglass or ceramic core or resistors film
    EResistance wire or ceramic core
    FIron cap

    Electrical Characteristics:

    Rated Power At 70℃Max Working VoltageMax Overload voltageInsulation VoltageResistance RangeOperating TemperatureT.C.R
    1W150V250V1KV0.1Ω~500KΩ-55℃~+275
    T50:±50PPM/℃
    T100:±100PPM/℃
    T200:±200PPM/℃
    T350:±350PPM/℃
    T500:±500PPM/℃
    3W250V350V1KV0.1Ω~500KΩ
    5W350V500V1KV0.1Ω~500KΩ
    7W350V500V1KV0.1Ω~500KΩ
    10W500V750V1.5KV0.1Ω~500KΩ
    15W500V750V1.5KV0.1Ω~500KΩ
    20W500V750V1.5KV0.1Ω~500KΩ
    30W750V1000V1.5KV0.1Ω~500KΩ
    50W750V1000V1.5KV0.1Ω~500KΩ
    100W750V1000V1.5KV0.1Ω~500KΩ

    Wire Wound Ceramic Cement Resistor 5W15ΩJ SQP 5W 15ohm 5%


    FAQ Of Topmay Capacitor


    1) Can I have a free sample to test ?
    Yes, we could provide free samples to test and check quality. Freight cost is collected.

    2) What is the lead time?
    Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

    3) Do you have any MOQ limit?
    Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

    4) How about price terms?

    We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

    5) What information should I let you know if I want to get a quotation?

    Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.


    Our series of strong products of capacitors can be divided into below types:
    ★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
    ★ Multilayer Ceramic Capacitor( radial, axial and SMD )
    ★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
    ★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
    ★ Tantalum Capacitor(SMD, Radial , Axial )
    ★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
    ★ Mica Capacitor
    ★ Trimmer Capacitor

    And series of resistors which we develop new production lines are as below:
    ★ SMD Resistors
    ★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
    ★ Cement Resistors
    ★ Leadless Resistors( MLEF)
    ★Power Resistor
