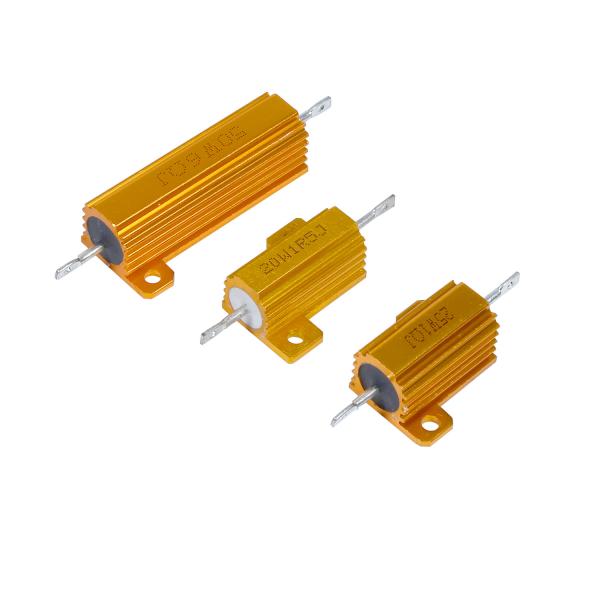

Gold Wire Wound Resistor RX RXG 200W Aluminum Housed Resistor

TMRGA-Gold Aluminum Housed Wirewound Resistor

Feature:

Perfect insulation Full molded structure Work in high current, stable characteristics Aluminum house, good for heat dissipation

Small size and hige power rating

Strong consturction,high stability

Operating temperature:-25℃—+275℃

Supply standard winding &non-inductive winding types

Application: DC or low frequency ac circuits, if used in high frequency circuit, it shall order non-inductive resistor

Part Number:

TMRGA	-	1 2 3 4	5	6 7 8	9	10	11
Produce Code TMRGA: Gold Aluminum Housed Wirewound Resistor		Resistance Value Code: Three digits: The first two digits are significant figures and the third one denotes number of zeros. 394=390KΩ Four digits: The first three digits areSignificant figures and the fourth onedenotes number of zeros.1201=1.2K Ω	Tolerance F=±1% J=± 5%	Dimension: 05=5W 10=10W 20=20W 50=50W 101=100W	Packaging T:tape&reel B:bulk	Terminal: B=Iron cap or screw D=Copper wire	Type: X=RX type G=RXG type
	-

Dimension(mm):

Power Rating	Dimensions(mm)
Power Rating	L1±1.5	L2±1.5	L3±1.5	L4±1.5	A±1.5	B±1.5
AH-5W	60	15	11.5	0	17	13
AH-10W	65	20	14.5	0	23	16
AH-25W	49	27	19	0	28	20
AH-50W	70	50	39.5	0	28	21.5
AH-75W	90	70	39.5	0	28	21.5
AH-75W	100	66	36	0	48	37
AH-100W	130	98	71	35.5	48	37
AH-150W	170	136	110	55	48	37
AH-200W	190	155	126	63	48	37
AH-200W	127	92	66	33	72	58
AH-250W	147	112	86	43	72	58
AH-300W	160	128	105	52	72	58
AH-500W	230	200	175	87	72	58
AH-800W	280	250	222	100	72	58
AH-1000W	330	300	250	125	72	58

Remarks :100W—1000WD indicates the screw size used

Power Rating	Dimensions(mm)
Power Rating	C±1.5	D±0.3	E±0.3	H±1.5	h±1.5	T±1.5
AH-5W	9.5	0.6	2.2	8	4	1.6
AH-10W	11	0.7	3.5	10.5	5.2	2
AH-25W	16	2	3.5	15.5	7	2
AH-50W	16	2	3.5	15.5	7	2
AH-75W	16	2	3.5	15.5	7	2
AH-75W	27	4	5	26	13	3.5
AH-100W	27	4	5	26	13	3.5
AH-150W	27	4	5	26	13	3.5
AH-200W	27	4	5	26	13	3.5
AH-200W	46	6	6	43	22.5	5
AH-250W	46	6	6	43	22.5	5
AH-300W	46	6	6	43	22.5	5
AH-500W	46	6	6	43	22.5	5
AH-800W	46	6	6	43	22.5	5
AH-1000W	46	6	6	43	22.5	5
