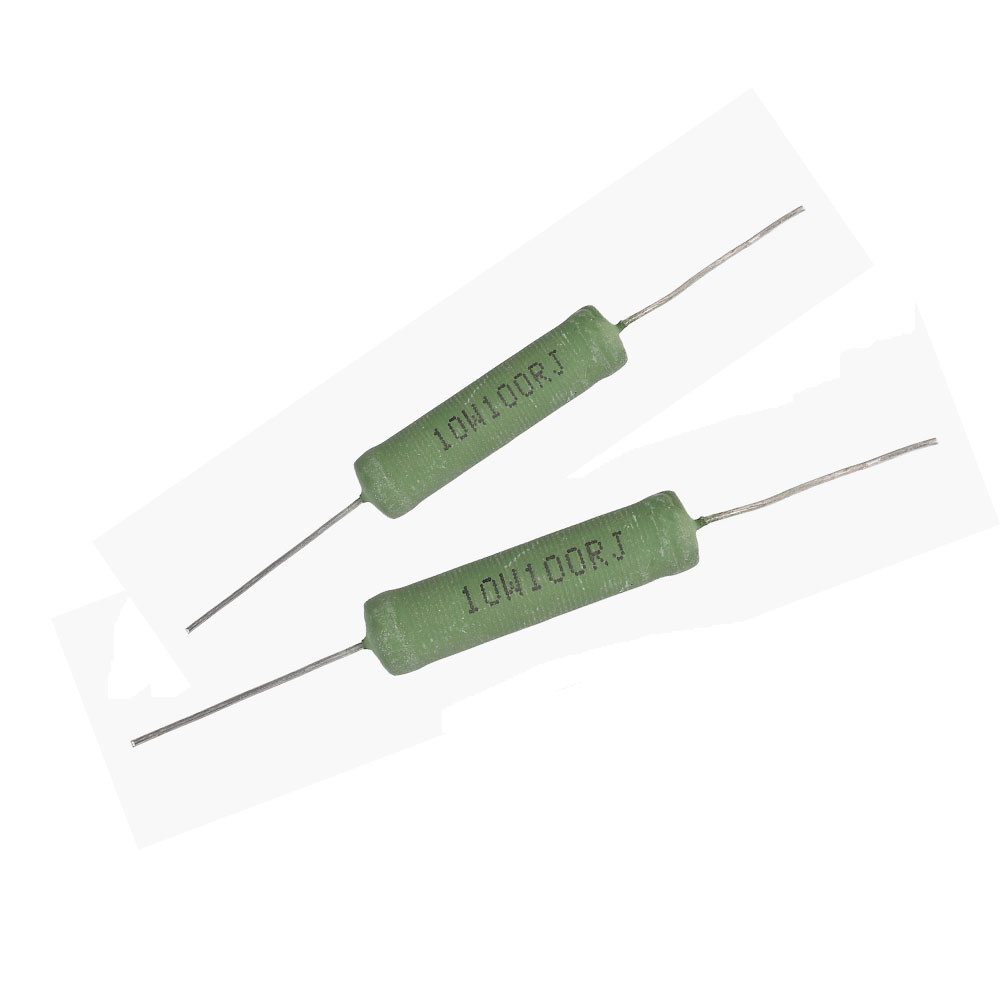

KNP Low Power Wire Wound Resistor Green 5W 7W 10W 15W 20W 30W 100R J 5%

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMRM
Certification :	SGS( RoHS)
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000pcs per month
Delivery Time :	12~15 working days

Add to Cart

Product Details
Company Profile

KNP Low Power Wire Wound Resistor Green 5W 7W 10W 15W 20W 30W 100R J 5%

KNP Low Power Wire Wound Resistor Green 5W 7W 10W 15W 20W 30W 100R J 5%

Features:

Super heat dissipation.
Instat overload capability.
No annual shift on resistane value.
Organ Donation by Wire wound
Tolerane available:±5%,±2%/±1%

Application: Power supply system, Meter/Instruments system, Industrial,automation system

Part Number:

TMRW	-	1 2 3 4	5	6 7	8	9 10
Produce Code TMRM: Precision Metal Film Resistor		Resistance Value Code: Three digits: The first two digits are significant figures and the third one denotes number of zeros. 394=390KΩ Four digits: The first three digits are Significant figures and the fourth one denotes number of zeros.1201=1.2K Ω	Tolerance F=±1% G= ±2% J=± 5%	Rated Power: One digits: 1= 1W 2= 1/2W 3= 3/4W 4= 1/4W 8= 1/8W L= 1/10W M=1/16W N=1/20W O=1/32W Two digits: XS=2WS YS=3WS...	Packaging T:tape&reel B:bulk	Terminal: empty value: general type F:Vertical form M:Horizontal form
	-

Electrical Characteristics:

Figure and Dimensions

TYPE	D±0.5	L±1	H±3	d±0.02
KNP-3W	6	17	25	0.7
KNP-5W	7	24	25	0.7
KNP-7W	7	32	25	0.7
KNP-10W	7	36	28	0.8
KNP-15W	7	41	28	0.8
KNP-20W	7	51	28	0.8
KNP-30W	7	61	28	0.8

KNP Low Power Wire Wound Resistor Green 5W 7W 10W 15W 20W 30W 100R J 5%

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
