1.8Mohm 2W 5% Wire Wound Resistor Axial Leaded Metal Glaze Resistor

    Buy cheap 1.8Mohm 2W 5% Wire Wound Resistor Axial Leaded Metal Glaze Resistor from wholesalers

    Buy cheap 1.8Mohm 2W 5% Wire Wound Resistor Axial Leaded Metal Glaze Resistor from wholesalers
    • Buy cheap 1.8Mohm 2W 5% Wire Wound Resistor Axial Leaded Metal Glaze Resistor from wholesalers
    • Buy cheap 1.8Mohm 2W 5% Wire Wound Resistor Axial Leaded Metal Glaze Resistor from wholesalers
    • Buy cheap 1.8Mohm 2W 5% Wire Wound Resistor Axial Leaded Metal Glaze Resistor from wholesalers

    1.8Mohm 2W 5% Wire Wound Resistor Axial Leaded Metal Glaze Resistor

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMRGA
    Certification : SGS( RoHS)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000000pcs per month
    Delivery Time : 12~15 working days
    • Product Details
    • Company Profile

    1.8Mohm 2W 5% Wire Wound Resistor Axial Leaded Metal Glaze Resistor

    Wire Wound Resistor Metal Glaze Resistor Axial Leaded Resistor 1.8Mohm 2W 5%

    Features:

    • High resistance value

    • Small size, high voltage


    • Good performance in conduring moisture

    • Good overload capability

    Application: TV, Electronic devices like computer,instruments and meters


    Electrical Characteristics:

    TypeRated PowerMax Working VoltageMax Overload voltageDielectric withstanding voltageResistance RangeOperation
    Temperature
    T.C.R. PPM/℃
    4/1/4W)0.25W500V700V500V10Ω~1000MΩ-55℃~+155
    R<1K: 500 R≤100K: 300
    R>100K: 200
    2(1/2W)0.5W1000V1500V600V10Ω~1000MΩ
    1(1W)1W1500V2500V800V10Ω~1000MΩ
    X(2W)2W2000V3000V800V10Ω~1000MΩ
    Y(3W)3W2500V4000V1000V10Ω~1000MΩ
    Z(5W)5W3000V5000V1000V10Ω~1000MΩ
    2S(1/2WS) small size0.5W500V700V500V10Ω~1000MΩ
    1S(1WS) small size1W1000V1500V600V10Ω~1000MΩ
    XS(2WS) small size2W1500V2500V800V10Ω~1000MΩ
    YS(3WS) small size3W2000V3000V800V10Ω~1000MΩ
    ZS(5WS) small size5W2500V4000V1000V10Ω~1000MΩ

    Figure and Dimensions


    TypeDimensions
    Normal SizeSmall SizeI±2.0L±1.0φDφd±0.05H±2.0
    4(1/4W)2S(1/2WS)606.52.3±0.50.4326
    2(1/2W)1S(1WS)609.03.2±0.50.5026
    1(1W)XS(2WS)6011.54.5±1.00.6825
    7311.54.5±1.00.6831
    X(2W)YS(3WS)6015.55.0±1.00.6823
    8115.55.0±1.00.6833
    Y(3W)ZS(5WS)9417.56.0±1.00.6838
    Z(5W)9424.58.0±1.00.6835

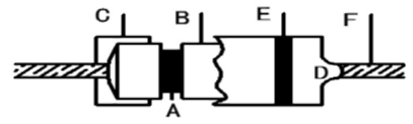

    Construction:

    No.Components
    ACeramic core
    BMetal Glaze Film
    CCaps
    DEpoxy resin painting
    EColor code
    FSoldered or tinned annealed wire.

    Packing Dimension

    PowerDimension(mm)
    L±1D±0.5d±0.05P±1W1±1W2±1
    1/8W(1/4WS)3.501.700.405.0052.0064.00
    1/4W(1/2WS)6.002.300.405.0052.0064.00
    1/2W(1WS)9.003.200.485.0052.0064.00
    1W(2WS)11.004.500.685.0063.0075.00
    2W(3WS)15.005.000.685.0068.0080.00
    3W(5WS)17.006.000.6810.0071.0083.00

    FAQ Of Topmay Capacitor


    1) Can I have a free sample to test ?
    Yes, we could provide free samples to test and check quality. Freight cost is collected.

    2) What is the lead time?
    Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

    3) Do you have any MOQ limit?
    Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

    4) How about price terms?

    We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

    5) What information should I let you know if I want to get a quotation?

    Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
