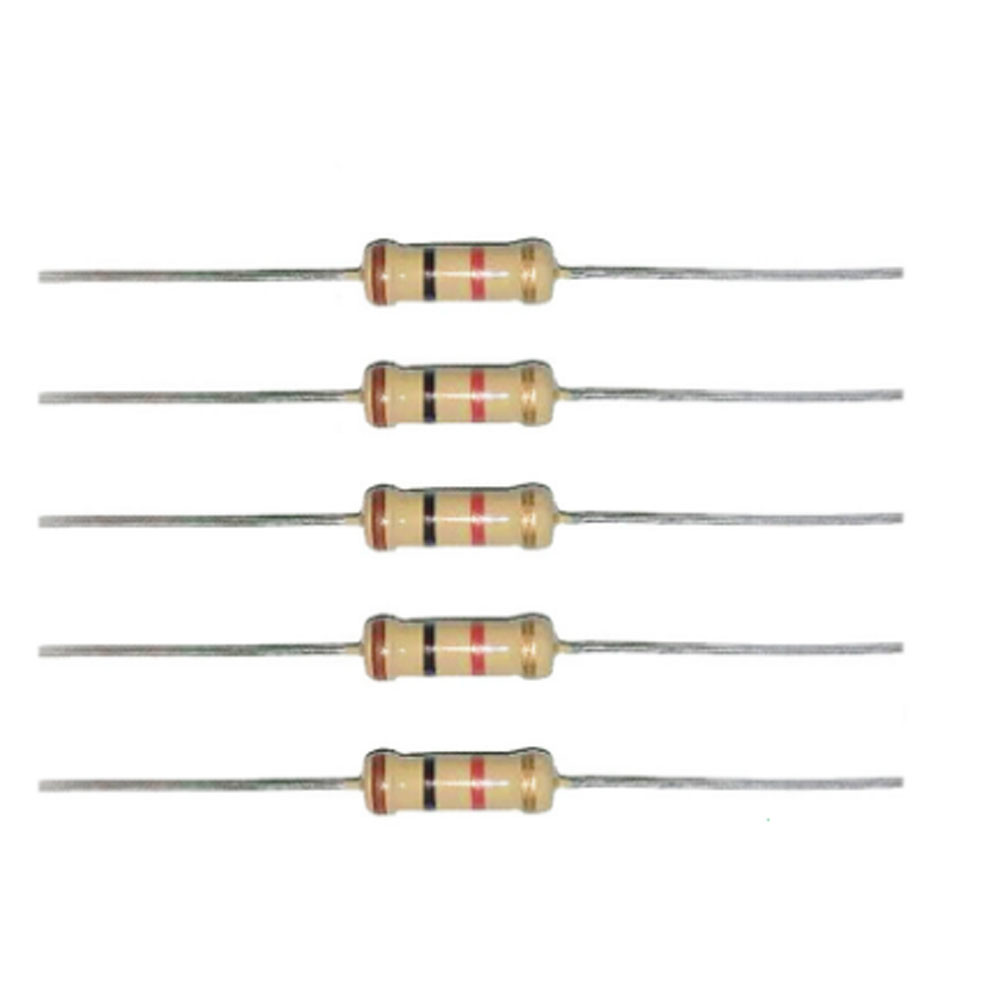

    Fixed Carbon Film Resistor 1Kohm 5% 1/8W 1/4W 1/2W 1W 2W

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMRC
    Certification : SGS( RoHS)
    Price : 0.005~0.01 USD
    Payment Terms : T/T
    Supply Ability : 1000000pcs per month
    Delivery Time : 12~15 working days
    • Product Details
    • Company Profile

    Fixed Carbon Film Resistor 1Kohm 5% 1/8W 1/4W 1/2W 1W 2W

    Carbon Film Resistor Fixed Resistor 1Kohm 5% 1/8W 1/4W 1/2W 1W 2W


    Feature:


    Stable performance, extensive resistance, small size, high operating temperature and high ultimate voltage
    Highly adaptive pulse load, good high frequency performance
    Operating ambient temperature : -55ºC to +125ºC
    Rohs Compliant


    Application: Entertainmentsystem, Power supply,Meter/Instruments system


    Performance Parameters


    Type


    Rated power


    Maximum working voltage


    Maximum overload voltage


    Maximum pulse

    voltage


    Dielectric withstanding voltage


    Resistance range


    Operating temperature range

    Normal sizeCF1/4W0.25W200V350V350V200V10Ω~1MΩ-55℃~125℃
    CF1/2W0.5W250V500V500V250V10Ω~1MΩ
    CF1W1W350V500V500V350V10Ω~1MΩ
    CF2W2W350V500V500V350V10Ω~1MΩ
    CF3W3W350V700V700V350V10Ω~1MΩ
    CF5W5W500V700V700V500V10Ω~1MΩ
    Small sizeCF1/2WS0.5W250V500V500V250V10Ω~1MΩ
    CF1WS1W350V500V500V350V10Ω~1MΩ

    Dimensions


    P type & M-Form series (Horizontal Forming)


    Unit:mm

    TypeDimensions

    Normal Size


    Small Size

    LψDψdHPh
    1/6W(1/8W)1/4WS3.3±0.51.8±0.30.33±0.0527±3.06.0±1.010.0±1.0
    1/4W1/2WS6.0±0.52.3±0.30.35±0.0526.5±1.010.0±1.010.0±1.0
    1/2W1WS9.0±1.03.0±0.50.38±0.0525±1.012.5±1.010.0±1.0
    1W11.0±1.03.5±0.50.42±0.0524±1.015.0±1.014.0±1.0
    2WS11.0±1.04.0±0.50.50±0.0524±3.015.0±1.014.0±1.0
    2W3WS15.0±1.05.0±0.50.50±0.0527.5±1.020.0±1.020.0±1.0
    3W5WS17.0±1.06.0±1.00.60±0.0530±1.025.0±1.025.0±1.0

    Construction:



    No.Components
    ACeramic core
    BCarbon Film
    CCaps
    DEpoxy resin painting
    EColor code
    FSoldered or tinned annealed wire.


    Color Code




    Fixed Carbon Film Resistor 1Kohm 5% 1/8W 1/4W 1/2W 1W 2W


    Our series of strong products of capacitors can be divided into below types:
    ★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
    ★ Multilayer Ceramic Capacitor( radial, axial and SMD )
    ★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
    ★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
    ★ Tantalum Capacitor(SMD, Radial , Axial )
    ★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
    ★ Mica Capacitor
    ★ Trimmer Capacitor

    And series of resistors which we develop new production lines are as below:
    ★ SMD Resistors
    ★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
    ★ Cement Resistors
    ★ Leadless Resistors( MLEF)
    ★Power Resistor
