DIP Fixed Resistors Carbon Film Resistor 100Ω 1/4W 1/2W 1W 5%
Features:
High Quality
Meet Performance requirements of CNS
Standard Tolerance: ±2%, ±5%.
Variety of packing: Bulk, Taped and formed supplied.
High resistance range (1Ω-10MΩ).
Small-Sized use selected ceramic with high performance which is
suitable for compact sets.
CARBON FILM FIXED RESISTOR STANDARD TYPE
CF(1/8W,1/4W,1/2W,1W,2W,3W,5W)
CF(1/8W,1/4W,1/2W,1W,2W,3W,5W)
MINI(1/4WS,1/2WS,1WS,2WS,3WS,5WS)
Application: Entertainmentsystem, Power supply,Meter/Instruments system
Performance Parameters
Table1
| Characteristics | Limits | Test Method |
| Operating Temperature Range | -55℃—+255℃ | |
| Insulation Resistance | 10000MΩminimum | |
| Dielectric Withstanding Voltage | No flashover or insulation damage | AC Potential respectively in the list for 60 seconds |
| Temperature Coefficient | Specified in below list | Test Temperature: Room Temperature +100℃ |
| Short Time Over Load | ±(1%+0.05Ω) | 2.5 times rated voltage for 5 seconds |
| Temperature Cycling | ±(1%+0.05Ω) | -40℃—85℃ for 5 cycles |
| Load Life in Moisture | ±5% | Rated voltage 1.5hr"on",0.5hr"off"at 40℃, 95%RH for 1000 hours |
| Load Life | ±5% | Rated voltage 1.5hr"on",0.5hr"off" at 70℃ for 1000 hours |
| Solderability | At least 95% coverage | 255℃ for 3 seconds |
| Hot Resistance of Solder | ±(1%+0.05Ω) | 350℃ for 3 seconds |
Table 2
| Temperature Coefficient | ±350PPM/℃ | +0~500PPM/℃ | +0~700PPM/℃ | +0~1500PPM/℃ |
| Resistance Value | ＜150KΩ | 160KΩ-390KΩ | 4300KΩ-910KΩ | 1MΩ-10MΩ |
Table 3
| Power Rating | Dimensioins(mm) | Resistance Range(Ω) | Max. Working Voltage | Max. Overload Voltage | Dielectric Withstanding Voltage |
| D | L | H | d±0.05 |
| 1/6W 1/8W | 1.8±0.2 | 3.2±0.5 | 28±2 | 0.4 | 1-10MΩ | 200V | 400V | 350V |
| 1/4W | 2.3±0.5 | 6.5±0.5 | 28±2 | 0.45 | 1-10MΩ | 250V | 500V | 350V |
| 1/2WS | 3.2±0.5 | 6.5±0.5 | 28±2 | 0.45 | 1-10MΩ | 250V | 500V | 500V |
| 1/2W | 3.2±0.5 | 9.0±0.5 | 26±2 | 0.5 | 1-10MΩ | 350V | 700V | 500V |
| 1WS | 4.5±1.0 | 9.0±0.5 | 26±2 | 0.5 | 1-10MΩ | 350V | 700V | 700V |
| 1W | 4.5±1.0 | 11.5±1.0 | 35±3 | 0.7 | 1-10MΩ | 500V | 800V | 700V |
| 2WS | 5.0±1.0 | 11.5±1.0 | 35±3 | 0.7 | 1-10MΩ | 500V | 800V | 900V |
| 2W | 5.0±1.0 | 15.5±1.0 | 33±3 | 0.7 | 1-10MΩ | 500V | 1000V | 900V |
| 3WS | 5.0±1.0 | 15.5±1.0 | 33±3 | 0.7 | 1-10MΩ | 500V | 1000V | 1000V |
| 3W | 6.0±1.0 | 17.5±1.0 | 38±3 | 0.7 | 1-10MΩ | 500V | 1000V | 1000V |
Construction:
| No. | Components |
| A | Ceramic core |
| B | Carbon Film |
| C | Caps |
| D | Epoxy resin painting |
| E | Color code |
| F | Soldered or tinned annealed wire. |

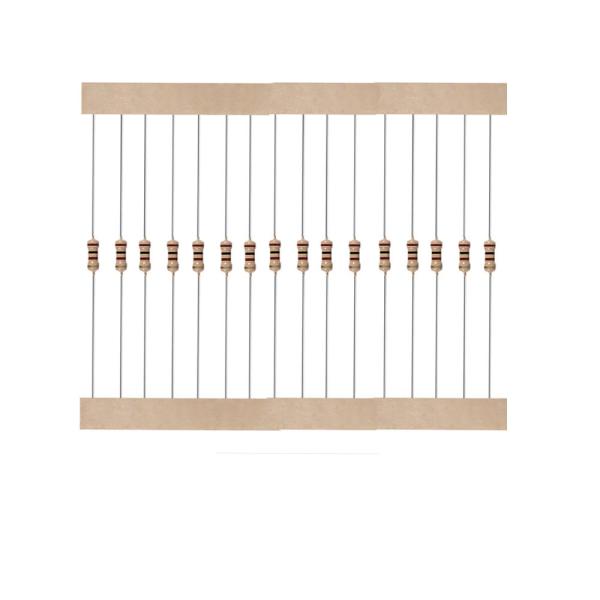

Packing: Bulk, Tape

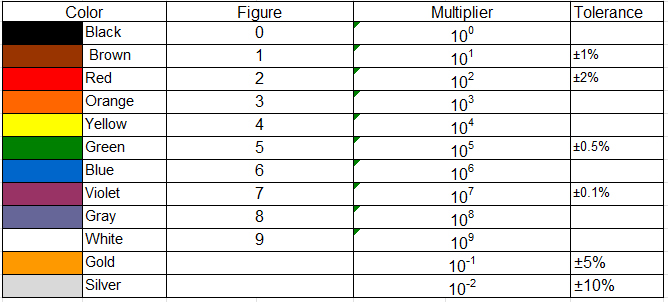

Color Code
