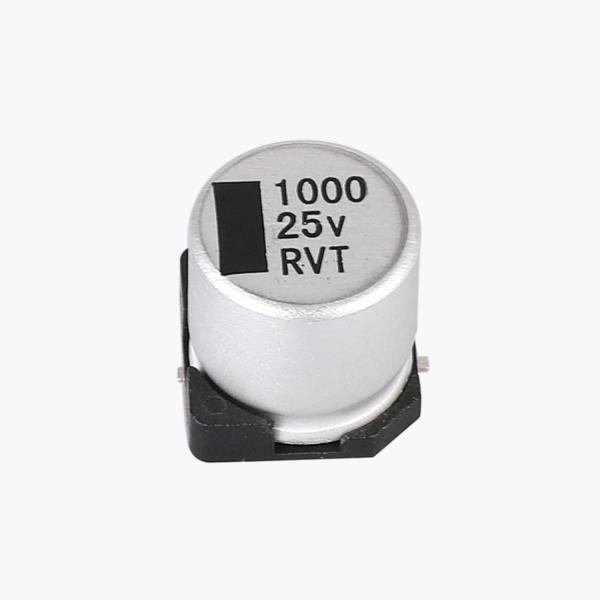

    SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMCE27
    Certification : SGS( RoHS)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000000pcs per month
    Delivery Time : 15~20 working days
    • Product Details
    • Company Profile

    SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5

    SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5


    Features

    Operating over wide temperature range( -55 +105℃)

    High Stability and reliability

    Suitable for Reflow soldering

    Suitable for High density PCB surface mounting

    Adapted to the RoHS, REACH directive


    Applications

    • Communication equipment
    • Computer and peripheral accessories
    • Multimedia player
    • Vehicle industry
    • Security industry
    • Digital products
    • Smart homes

    Specifications

    Specifications
    Category temperature range (℃)-55 +105℃
    Capacitance tolerance (%)±20%( 120Hz/+20℃)
    Leakage Current1≤ 0.01CV or 3uA which bigger (charge for 5 minutes at 20℃) CR: Nominal Capacitance(uF) UR: Rated voltages (V)
    Dissipation Factor (tanδ)See table of Characteristics
    Low Temperature CharacteristicsRated voltage (V)6.3101625355063100
    Z(-25℃)/Z(+20℃)44322223
    Z(-40℃)/Z(+20℃)128643334
    Load Life

    After application of rated voltage for the specified period of time 2000Hours/3000hrs/5000hrs at +105℃, returning to 20℃, the following specification shall be satisfied.


    Promise load life: DxL≤6.3*5.7mm:2000H, 6.3x7.7., 8x6.5, 10x7.7:3000H, D≥8mm:5000H
    Capacitance ChangeWithin ±30% of the initial value
    Dissipation FactorN o t more than 300% of the initial specified value
    Leakage CurrentN o t more than the initial specified value
    Shelf Life

    After storage for 1000 hours 105 ℃±2 ℃, return to 20 ℃, the capacitors shall meet

    the requirement of load life above

    Resistance to Soldering Heat

    After reflow soldering according to Reflow Soldering Temperature,

    restored at room temperature, they meet the following requirement.

    Capacitance ChangeWithin ±10% of the initial value
    Dissipation FactorNot more than the initial specified value
    Leakage CurrentNot more than the initial specified value
    Frequency coefficient of ripple currentFrequency50Hz120Hz1KHz10KHz≤
    C≤1000uF0.71.01.21.3
    C>1000uF0.81.01.111.2

    Dimensions



    Nominal capacitance, rated voltage, rated ripple current and

    case size table


    Rated voltage (V)Capacitance(uF) ±20%Diameter (mm)Height(mm)Ripple Current(mArms)tanδPart Number
    25100012.513.55800.3TMCE24-108M25VT

    Contructions


    SMD Aluminum Electrolytic Capacitor SMT 1000uF 25V 20% 12.5*13.5
