Safety Film 0.1uF 275vac Mkp X2 Capacitor P10 P15 Taped For EMI Filtering

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCF18
Certification :	SGS( RoHS), UL
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000pcs per month
Delivery Time :	12~15 working days

Add to Cart

Product Details
Company Profile

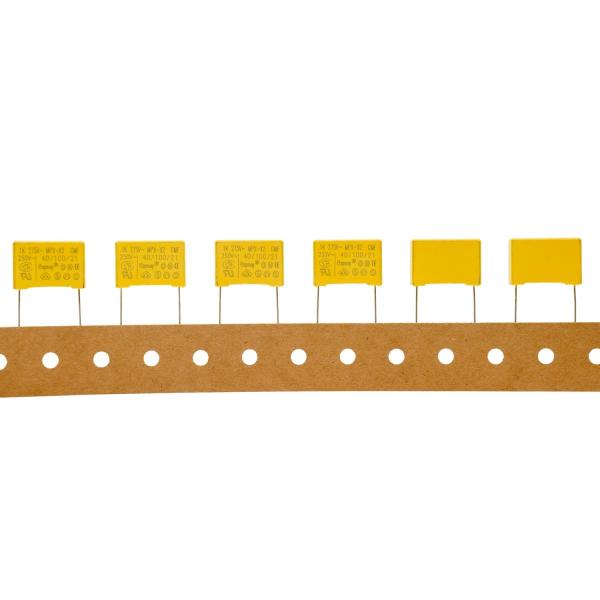

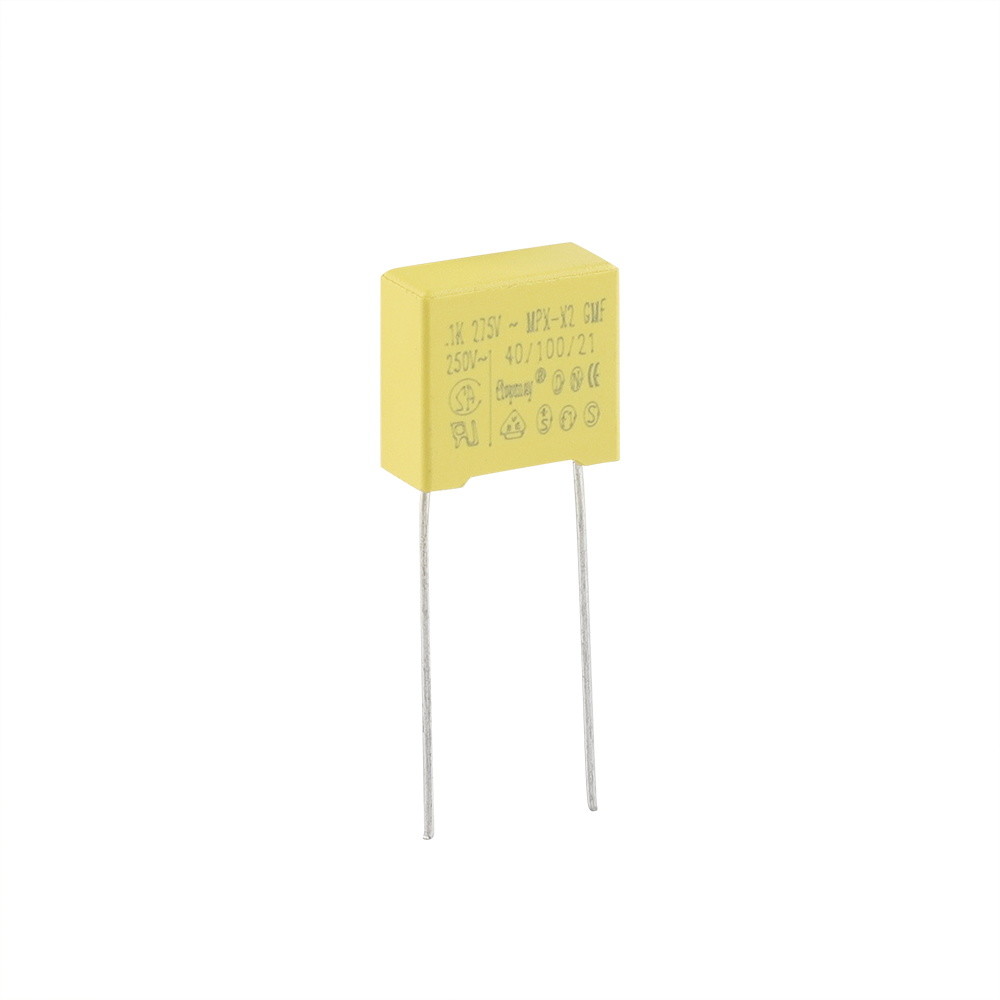

Safety Film 0.1uF 275vac Mkp X2 Capacitor P10 P15 Taped For EMI Filtering

MKP Safety Film Capacitor X2 0.1uF 275V P10 P15 Taped For EMI Filtering

The most conventional role of X2 safety capacitors is to resist electromagnetic interference. They are generally connected in series between the neutral and live wires, and are suitable for high frequency, DC, AC, coupling, and jumper pulse circuits.

Features

Box type provides the identical outer appearance
Very Low Loss at high frequency, suitable for high current
High Insulation resistance, long life due to self-healing effect
Withstanding 2.5kV impulse voltage, Class X2
As an across-the-line type noise suppression capacitor, and Suitable for AC purpose

Outline Drawing

Non-inductive, wound with metallized polypropylene film as the

dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.

Specifications

Product Name	X2 Metallized Polypropyelene Film Capacitor
Climatic Category	40/110/21
Rated Voltage	275VAC
Capacitance Range	0.1uF
Capacitance Tolerance	10%(K)
Voltage Proof	4.3UR(5s)
Dissipation Factor	≤0.15% CR ≤ 1.0uF ≤0.3% CR >1.0uF(20℃ ,10KHz)
Insulation Resistance (20℃ ,1min)	≥30000MΩ (CR≤ 0.33 uF) ≥10000S (CR＞0.33 uF)

Dimensions

Item	W±0.5	H±0.5	T±0.5	D±0.05	L±1	P±0.5
X2 104K/275VAC	18	12	6	0.8	22	15
X2 104K/275VAC	13	12	6	0.6	22	10

Part Number Naming Rule:

TMCF	18	_	104	K	275V	P15	B
Product Category	Sub-Series		Capacitance	Tolerance-10%	Voltage	Pitch	Packing-bulk

Package Type

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!
