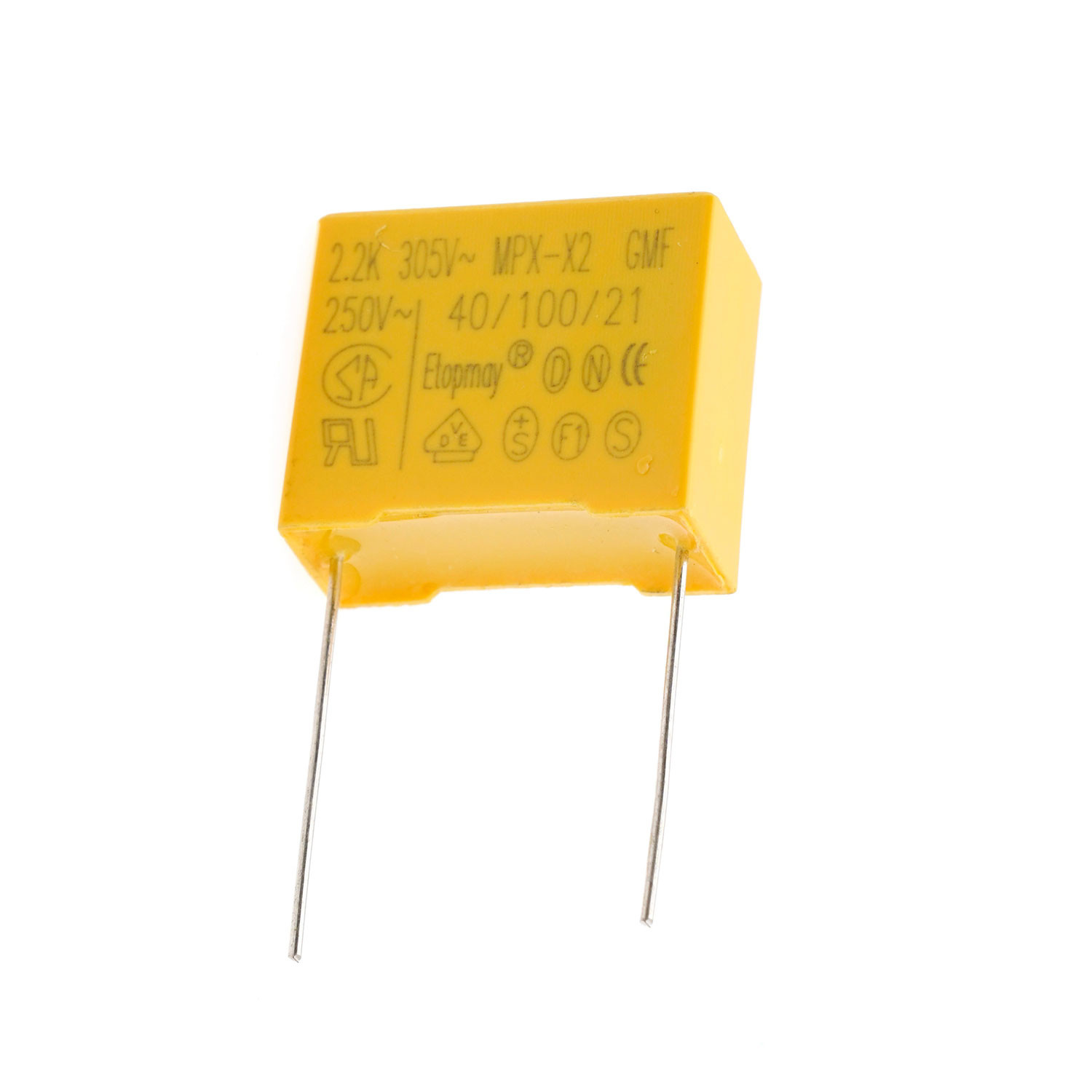

P22.5 Polypropylene Film Capacitor 2.2uF MKP Safety Metallized X2 275VAC 305VAC

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCF18
Certification :	SGS( RoHS), UL
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000pcs per month
Delivery Time :	12~15 working days

Add to Cart

Product Details
Company Profile

P22.5 Polypropylene Film Capacitor 2.2uF MKP Safety Metallized X2 275VAC 305VAC

Metallized Polypropylene Film Capacitor MKP Safety Film Capacitor X2 2.2uF 275VAC 305VAC P27.5

Features

X2 capacitor and discharge reistors are internally connected in parallel
Excellent flame retardant properties
Used in anti-interference occasions such as power supply cross-line
Box Type, low loss at high frequency
Class X2 voltage standard
For noise suppression capacitor, and Suitable for AC purpose

Outline Drawing

Non-inductive, wound with metallized polypropylene film as the

dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.

Specifications

Product Name	X2 Metallized Polypropyelene Film Capacitor
Climatic Category	40/110/21
Rated Voltage	275VAC;305VAC
Capacitance Range	2.2uF
Capacitance Tolerance	10%(K)
Voltage Proof	4.3UR(5s)
Dissipation Factor	≤0.15% CR ≤ 1.0uF ≤0.3% CR >1.0uF(20℃ ,10KHz)
Insulation Resistance (20℃ ,1min)	≥30000MΩ (CR≤ 0.33 uF) ≥10000S (CR＞0.33 uF)

Dimensions

Item	W±0.5	H±0.5	T±0.5	D±0.05	L±1	P±0.5
X2 225K275VAC/305VAC	26.5	21.5	12	0.8	22	22.5

Part Number Naming Rule:

TMCF	18	_	225	K	275V	P22.5	B
Product Category	Sub-Series		Capacitance	Tolerance-10%	Voltage	Pitch	Packing-bulk

Package Type

P22.5 Polypropylene Film Capacitor 2.2uF MKP Safety Metallized X2 275VAC 305VAC

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!
