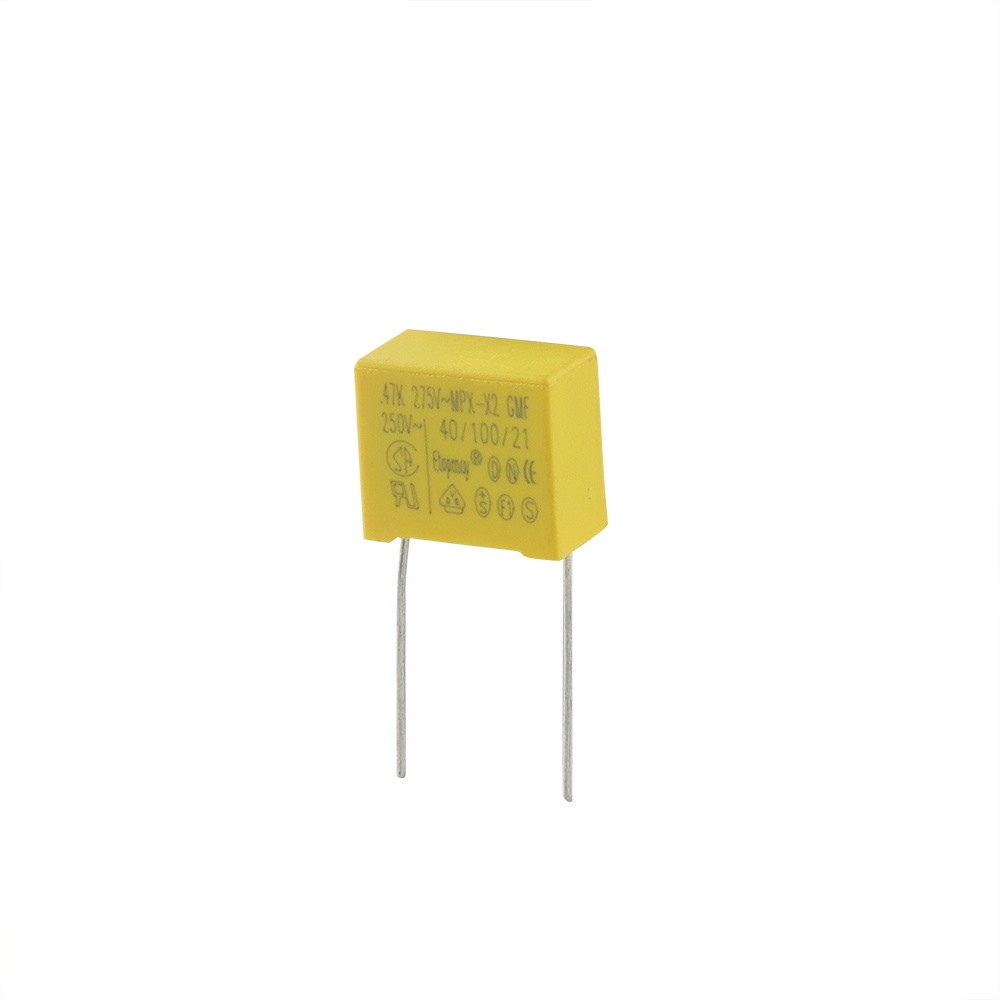

    0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMCF18
    Certification : SGS( RoHS), UL
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000000pcs per month
    Delivery Time : 12~15 working days
    • Product Details
    • Company Profile

    0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications

    0.47uF 275VAC P15mm 22.5mm MKP X2 Film Capacitor for Home Applications


    Features

    • Box type provides the identical outer appearance
    • Very Low Loss at high frequency, suitable for high current
    • High Insulation resistance, long life due to self-healing effect
    • Withstanding 2.5kV impulse voltage, Class X2
    • As an across-the-line type noise suppression capacitor, and Suitable for AC purpose

    Outline Drawing

    Non-inductive, wound with metallized polypropylene film as the

    dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.


    Specifications


    Reference StandardGB14472(IEC60384-14)

    Operating Temperature-40℃~+100℃
    Rated Voltage275VAC
    Capacitance Range0.47uF
    Capacitance Tolerance10%(K)
    Withstand voltage1800VDC(2s)CR≤1uF
    4.3UR VDC(2s) CR>1uF
    Dissipation Factor≤0.1% (20℃ ,1KHz)

    Insulation Resistance

    (20℃ ,1min)

    ≥15000MΩ (C≤ 0.33 uF)

    ≥5000 MΩ·uF/C (CR>0.33 uF)


    Dimensions


    ItemW±0.5H±0.5T±0.5D±0.05L±1P±0.5
    X2 474K/275VAC26.519100.82222.5
    X2 474K/275VAC1815.59.50.82215

    0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications0.47uF 275VAC MKP X2 Film Capacitor P15mm 22.5mm For Home Applications

    Shenzhen Topmay Electronic Co., Ltd is specialized in manufacturing a wide range of capacitors and resistors. The company headquarter is located in Shenzhen, a flourishing southern city that is recognized as one of the economic centers of China. Since established in 1998, Topmay deal globally based on the most competitive price and excellent service. Through many years’ hard work, it has gradually grown up to be an outstanding enterprise in the field of capacitors and resistors.


    By closely following the latest market trends, we provide “one-stop” capacitors and resistors solution, which are applied in almost all kinds of PCB, communications, lighting, home appliance, industrial control, green energy, etc.


    Our series of strong products of capacitors can be divided into below types:

    ★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

    ★ Multilayer Ceramic Capacitor( radial, axial and SMD )

    ★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

    ★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

    ★ Tantalum Capacitor(SMD, Radial , Axial )

    ★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

    ★ Mica Capacitor

    ★ Trimmer Capacitor


    And series of resistors which we develop new production lines are as below:

    ★ SMD Resistors

    ★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

    ★ Cement Resistors

    ★ Leadless Resistors( MLEF)

    ★Power Resistor


    More details, Kindly contact us freely!
