MKP Metallized Polypropylene Film Capacitor BOX TYPE 684J400V

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCF17
Certification :	SGS( RoHS)
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000pcs per month
Delivery Time :	15~20 working days

Add to Cart

Product Details
Company Profile

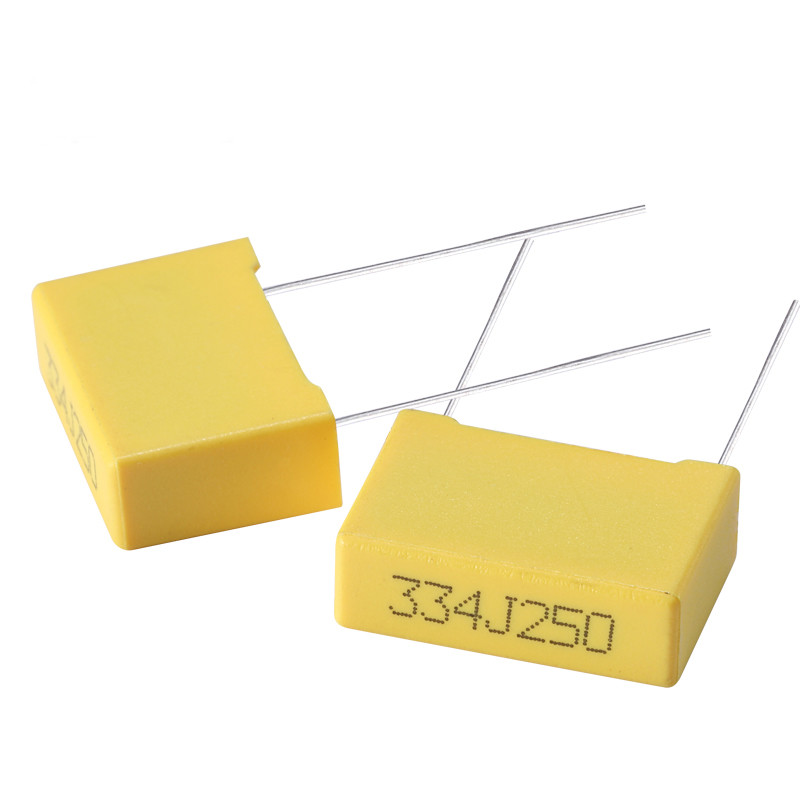

MKP Metallized Polypropylene Film Capacitor BOX TYPE 684J400V

MKP Metallized Polypropylene Film Capacitor BOX TYPE 684J400V

Features

Box type provides the identical outer appearance.

Very low loss at high frequency, suitable for high current.

High Insulation resistance, long life due to self-healing effect.

Widely used in high frequency, DC, AC and pulse circuits.

Configuration

Non-inductive, wound with metallized polypropylene film as the dielectric and electrode copper-clad steel leads and epoxy coating.

Specifications

Reference Standard	GB3667-97 UL810IEC60252
Climatic Category	40/85/21
Rated Voltage	400VDC
Capacitance Range	0.68uF
Capacitance Tolerance	5%(J)
Voltage Proof	1.6UR(5s)
Dissipation Factor	≤0.1%(20°C, 1KHz)
Insulation Resistance (20℃ ,1min)	≥25000MΩ (CR≤ 0.33 uF) ≥7500S (CR>0.33 uF)

Product Details:

MKP Metallized Polypropylene Film Capacitor BOX TYPE 684J400V

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
