    Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMCC03
    Certification : SGS( RoHS)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000000pcs per month
    Delivery Time : 10~12working days after payment
    • Product Details
    • Company Profile

    Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm

    Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm

    Feature

    • Miniature size, wide capacitance, tape and reel packing available for auto-placement.
    • Coating with epoxy resin, creates the excellent humidity resistance and prevents body from damage during soldering and washing.
    • Industry standard size and various lead spacing available
    T.CNPO/COGX7RY5VZ5U
    Dielectric typeStable class I DielectricStable class II Dielectric
    Electrical properties

    With negligible dependence of electrical properties on temperature voltage frequency and time


    With predictable change of properties with temperature voltage, frequency and time, this dielectric is ferroelectric and offers high capacitance ranges than class IWith high twist dielectric constant and greater variation of properties with temperature and test conditions, very high capacitance per unit volume.
    ApplicationUse in Circuits requiring stable performanceUse as blocking, by-passing discriminating elementSuited for by-passing and coupling application such as store power and memory circuit.

    General Specification

    A

    Product Type

    B

    Nominal Body Size(Length ×Width±0.05)

    TMCC03

    Class 1 radial lead monolithic capacitors

    08052.0×1.25mm
    C

    Temperature Characteristic

    D

    Nominal Capacitance C

    X7R±15%-55~+125℃10310nF
    E

    Tolerance

    F

    Rated Voltage

    K±10%50V
    G

    Packaging Style

    H

    Lead Space(Unit:mm)

    Blank

    Bulk 1000PCS/BAG

    F35.08mm
    I

    Wire material


    Specifications


    Wire diameter


    Line conductivity


    Tin plated copper clad steel wire

    Φ0.45~0.5mm16.6% (±0.5)

    Tin plated copper wire

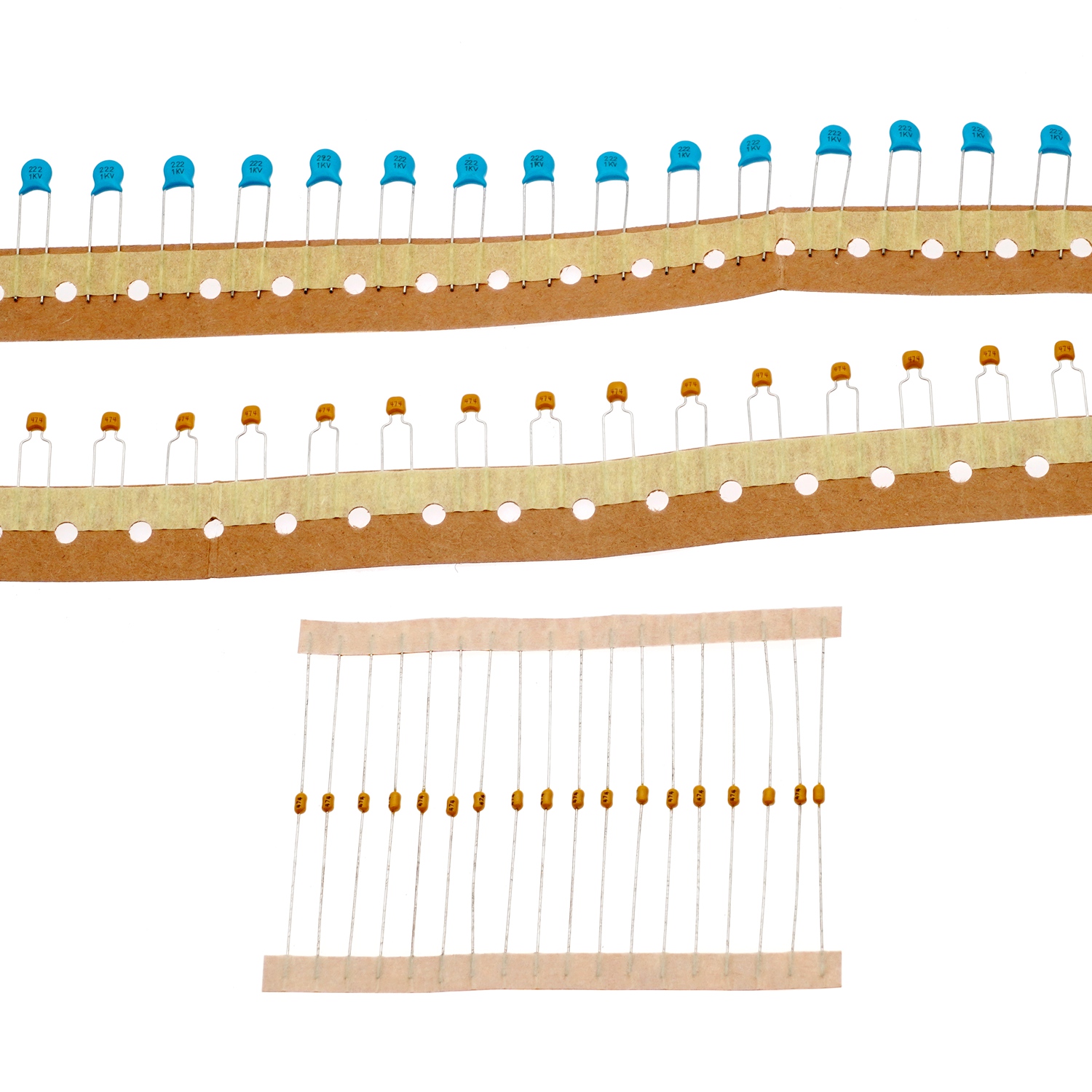

    Packing

    Bulk or Tape


    Radial Multilayer Ceramic Capacitor 10nF 50V 0603 X7R P5.08mm


    Applications

    Multilayer ceramic capacitors are widely used in electronic precision instruments. Various small electronic devices are used for resonance, coupling, filtering, and bypassing.



    Our series of strong products of capacitors can be divided into below types:

    ★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

    ★ Multilayer Ceramic Capacitor( radial, axial and SMD )

    ★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

    ★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

    ★ Tantalum Capacitor(SMD, Radial , Axial )

    ★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

    ★ Mica Capacitor

    ★ Trimmer Capacitor


    And series of resistors which we develop new production lines are as below:

    ★ SMD Resistors

    ★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

    ★ Cement Resistors

    ★ Leadless Resistors( MLEF)

    ★Power Resistor


    More details, kindly contact us freely!
