Chip Capacitor Multilayer Ceramic Capacitor SMD 1uF 50V 10% X7R
1206
General Features:
| Categories | SMD Multilayer Ceramic Capacitor |
| Series | TMCC05 |
| Manufacturer Part Number | TMCC05-105K50VT1206X7R |
| Description | CAP CER1uF 50V 10% 1206 X7R |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Packaging | Tape & Reel (TR) |
| Application | General Purpose |
| Capacitance | 1uF |
| Tolerance | ±10% |
| Rated Voltage | 50V |
| Temperature Coefficient | X7R |
| Operating Temperature | -55°C ~ 125°C |
| Applications | General Purpose |
| Mounting Type | Surface Mount, MLCC |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension | 0.126" L x 0.063" W (3.20mm x 1.60mm) |

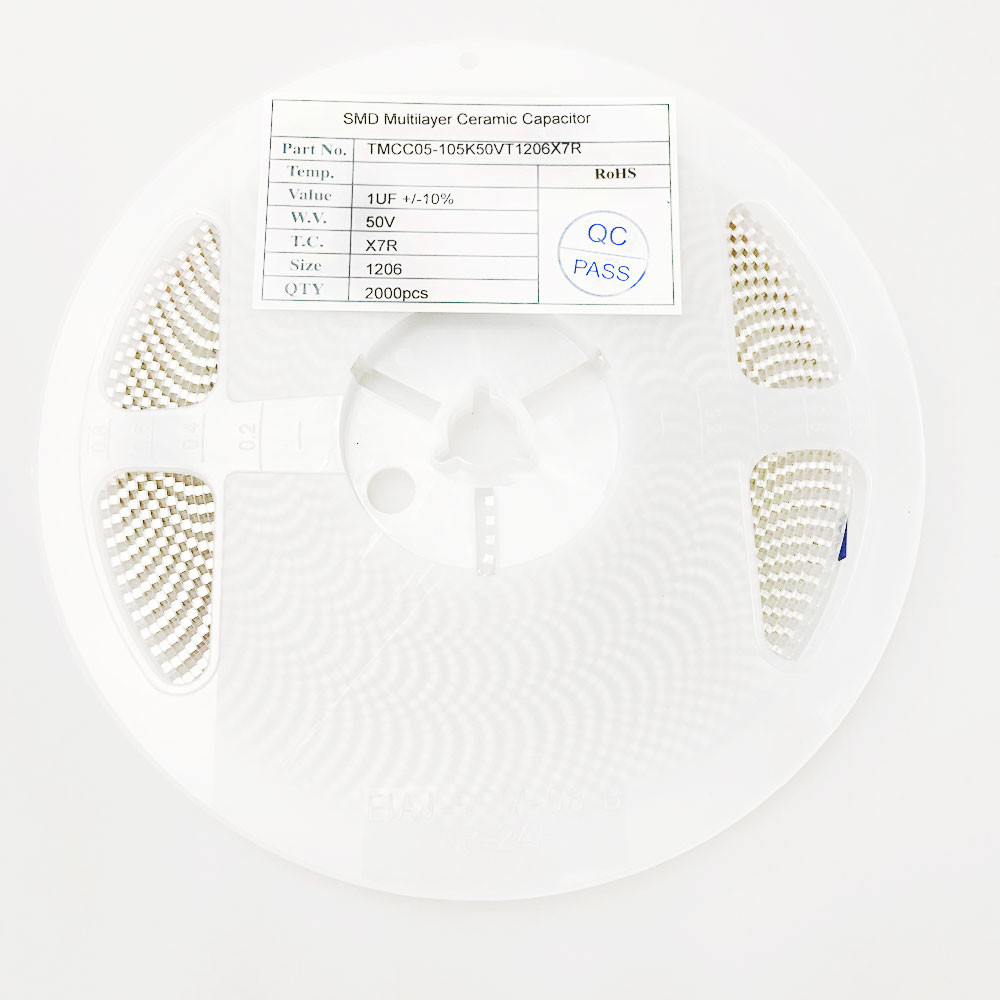

| Standard Package | 2000 PCS / Reel |
Dielectri General Information
| Dielectric Type | Class I | Class II |
| Dielectric Material | Temperature Compensating | X7R/X5R(B) | Z5U(E) | Y5V(Y/F) |
| Electrical Properties | The electrical properties is the most stable one and has little
change with temperature, voltage and time. | X7R material has high dielectric constant, and its capacitance is
higher than class I. These capacitors are classified as having a
semi-stable T.C.. | Temperature characteristic is between that of X7R and Y5V. The
capacitance is unstable and sensible to temperature and voltage. | Y5V material has highest dielectric constant. Its capacitance and
dissipation is sensible to temperature and voltage. |
| Application | Used in applications where low-losses and high-stability are
required, such as filters, oscillators, and timing circuits so on. | Used over a wide temperature range , such in these kinds of
circuits, DC-blocking, coupling, bypassing, frequency
discriminating etc. | Ideally suited for bypassing and coupling application circuits
operating with low DC bias in the environment approaching to room
temperature. | Used over a moderate temperature range in application where high
capacitance is required. |
| Available capacitance range | 0.5pF~0.1uF | 100pF~22uF | 1nF~10uF |
Contruction
| No. | Components |
| 1 | Ceramic Dielectric |
| 2 | Inner elctrode |
| 3 | Substrate electrode |
| 4 | Nickel Layer |
| 5 | Tin Layer
|
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality.
Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production
average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than
that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a
quotation?
Basically for capacitor, it requires to know detailed capacitance
and voltage. If you have more information, such as type, product
photo for reference, you could kindly provide too.
Our series of strong products of capacitors can be divided into
below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65,
CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in ,
Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
And series of resistors which we develop new production lines are
as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
More details, kindly contact us freely!
