Multilayer Ceramic Capacitors MLCC - SMD/SMT 0805 50V 10uF 10% X7R
Product: Multi-layer Ceramic Capacitor Description: CAP, 10uF, 50V,
±10%, X7R, 0805
Attribute | Value |
|---|
| Capacitance | 10uF |
| Voltage | 50V dc |
| Package/Case | 0805 (2012M) |
| Mounting Type | Surface Mount |
| Tolerance | ±10% |
| Dimensions | 2.0 x 1.25x 0.8mm |
| Standard | General Use |
| Length | 2.0mm |
| Depth | 1.25mm |
| Height | 0.8mm |
| Series | TMCC05 |
| Suppression Class | Class II |
| Terminal Type | Solder |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +125°C |
Reliability Test and Judgment Condition
| | Judgment | | | Test condition |
| Capacitance | Within specified tolerance | | Freq.: 1.0 kHz ± 10% Voltage: 1.0Vrms ± .2V For Cap > 10µF,
05Vrm @ 120H |
| Tan δ (DF) | 3% max. | A capacitor prior to measuring the capacitance is heat treated at 150℃+0/-10℃ for 1hour and maintained in ambient air for 24±2 hours. |
| Insulation | 100,000MΩ or 1000MΩ - µF, whichever is less | Charge device with rated voltage for 120 ± 5 secs @ room
temp/humidity |
| Resistance |
| Appearance | No abnormal exterior appearance | Microscope (×10) |
Withstanding Voltage | No dielectric breakdown or mechanical breakdown | Charge device with 250% of rated voltage for 1-5 seconds, w/charge
and discharge current limited to 50 mA (max) Note: Charge device
with 150% of rated voltage for 500V devices. |
|
| Characteristics | X7R (From -55℃ to 125℃, Capacitance change should be within ±15%) |
| Adhesive Strength | No peeling shall be occur on the | 500g×F, for 10±1 sec. |
| Termination | terminal electrode | | | | |
| Bending Strength | Capacitance change : | | Bending to the limit (1m) |
| within ±12.5% | with 1.0mm/sec. |
Performance of Delectric for MLCC
C0G capacitor with high temperature compensation characteristics,
suitable for bypass capacitance and coupling capacitance;
X7R capacitor is a temperature stable ceramic capacitor, suitable
for low requirements of industrial applications;
Z5U capacitors are characterized by small size and low cost,
especially suitable for decoupling circuit applications;
Y5V capacitor has the worst temperature characteristics, but has a
large capacity, which can replace the low-capacity aluminum
electrolytic capacitor.

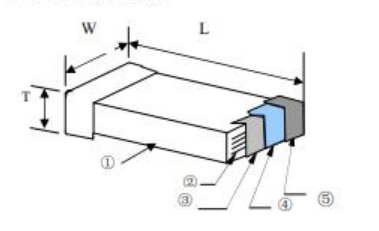

Contruction
| No. | Components |
| 1 | Ceramic Dielectric |
| 2 | Inner elctrode |
| 3 | Substrate electrode |
| 4 | Nickel Layer |
| 5 | Tin Layer |
