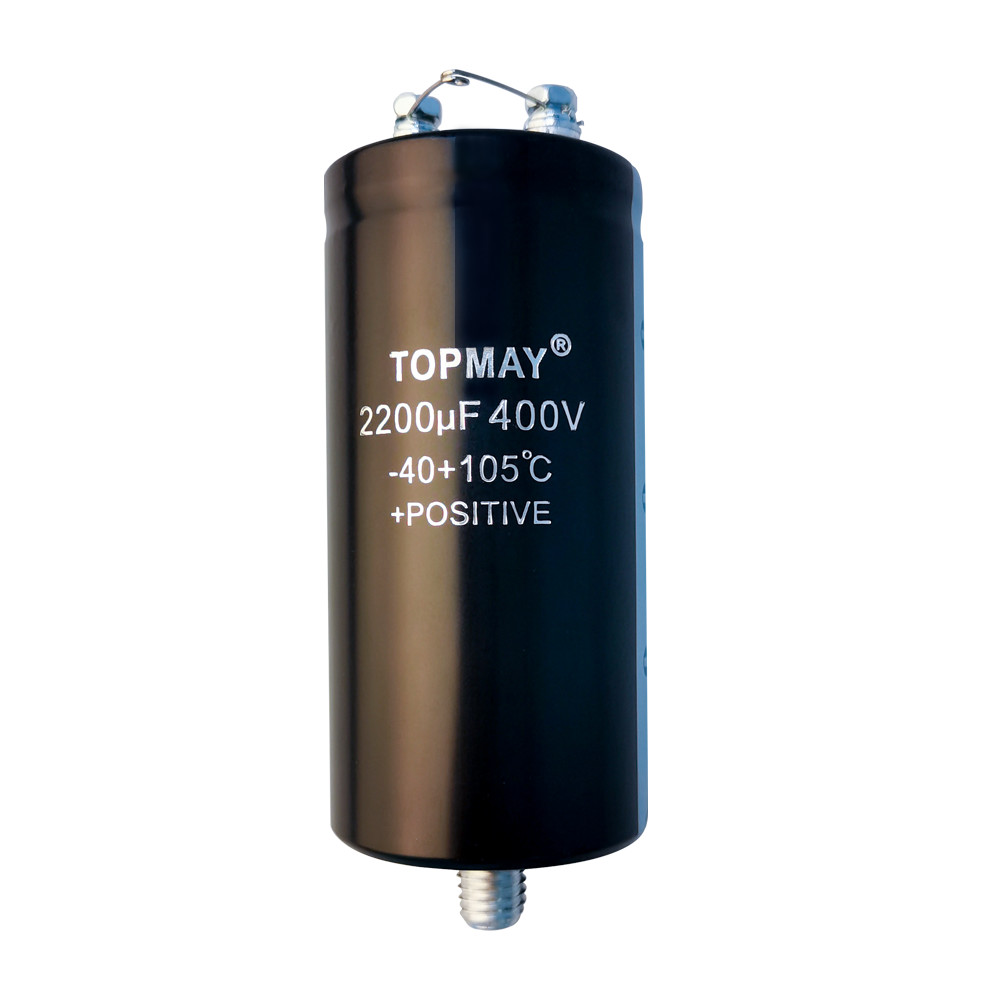

    105C Aluminum Screw Terminal Electrolytic Capacitor 2200UF 400V

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMCE22
    Certification : SGS( RoHS)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000pcs per months
    Delivery Time : 15~20 working days
    • Product Details
    • Company Profile

    105C Aluminum Screw Terminal Electrolytic Capacitor 2200UF 400V

    Screw Terminal Aluminum Electrolytic Capacitor 105C 2200UF 400V


    Features:

    Long life of 2000 hours at 105℃, High ripple current

    Screw terminal type, wide temperature range.

    Suitable for computer, communication power and inverters.


    Main content and apply scope

    This document defined the requirements of electrolytic capacitor about technical parameters, test method and application.

    In reference to this file about the product testing and quality judgment and new product development, described as follows:


    Operating temperature range means the capacitor under the application of rated voltage condition, can work reliably time.


    Unless otherwise specified, the measurement should be conducted under the following conditions:

    Temperature:15~35℃;

    relative humidity:45~85%;

    atmospheric pressure:86Kpa~106Kpa;

    If the test result are undeterminable,it should be measured under the following conditions:

    temperature:20±2℃

    relative humidity:60~70%

    atmospheric pressure:86Kpa~106Kpa


    Specifications:


    ItemCharacteristics
    Rated Voltage Range10~450V.DC

    Operating Temperature

    Range

    -40℃~+105℃( 315WV, -25~+85)
    Capacitance Tolerance±20%(M)
    Leakage Current

    I≤ 0.02 CV or 5mA whichever is smaller ( at 20℃, after 5 minutes)

    C: Nominal Capacitance(uF), V: Rated Voltage (V)

    Dissipation FactorLess than the value specified in the standard products tables
    Load Life(+85℃)
    Life Time2000hours
    Capacitance ChangeWithin ±20% of the initial value
    Dissipation FactorNot more than 200% of the specified value
    Leakage Current

    ot more than the specified value


    Shelf Life(+85℃)
    Life Time1000hours
    Capacitance ChangeWithin ±20% of the initial value
    Dissipation FactorNot more than 200% of the specified value
    Leakage CurrentNot more than the specified value

    After test: UR to be applied for 30 minutes, 12 to 24 hours before measurement

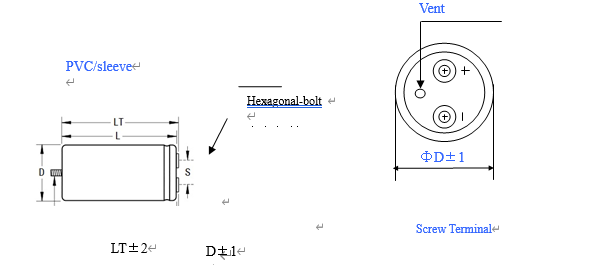

    Dimensions



    Terminal type

    Diameter

    (D)

    Distance of terminal(P)Screw ThreadDiameter of terminalHeight of terminal(T)
    M65132M6176

    Marking


    Name of Brand : TOPMAY

    Color of sleeve: Black

    Color of marking: White

    Rated Voltage:400VDC

    Rated Capacitance:2200UF

    Polarity


    105C Aluminum Screw Terminal Electrolytic Capacitor 2200UF 400V
