12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCE3002
Certification :	SGS( RoHS)
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000pcs per month
Delivery Time :	12~15 working days

Add to Cart

Product Details
Company Profile

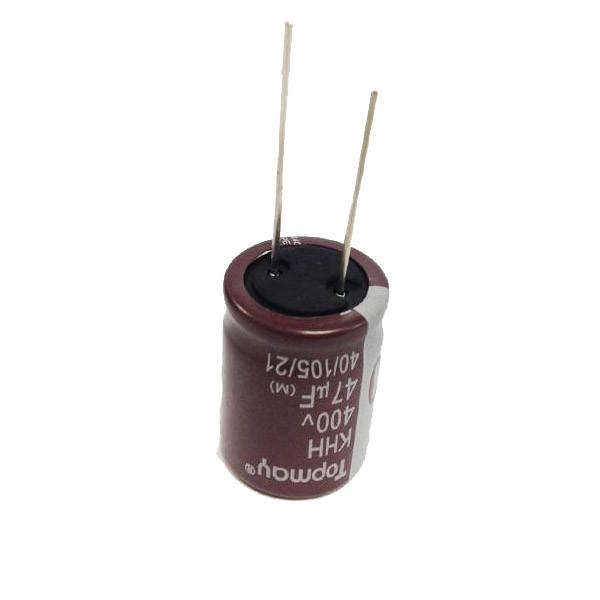

12000 Hours Aluminum Electrolytic Capacitor 47uF 400V Low ESR Capacitor

12000 Hours 47uF 400V Low ESR Radial Aluminum Electrolytic Capacitor For LED LCD

Features

105℃,12000 hours, high Ripple, Low impedance,
Long life.
Suitable for using in switching power,LCD TV,
LED,special Control power supply and smart meter.

Specifications

Items

Characteristics

Rated Voltage Range

250～450V.DC

Operating Temperature Range

－40℃～＋105℃

Capacitance Tolerance

±20%(M) (25℃,100 or 120Hz)

Leakage Current

I≤0.02CV+10(μ A)

Where,I:Max.leakage current(µA),C:Nominal capacitance(µF),V:Rated voltage(V) After 2 minutes at 25℃.

Dissipation Factor

(tanδ)

Rated voltage(V_dc)	250	350	400	450
tanδ(Max.)	0.20	0.20	0.20	0.22

(25℃,100 or 120Hz)

Low Temperature

Characteristics

(Max.Impedance Ratio)

Impedance ratio at 100Hz or 120Hz shall not exceed the values given in the below table.

Rated voltage(V_dc)	250～450
Z_-40℃/Z_+20℃	7

Shelf Life

After storage at 105℃ for 1000 hours, the capacitors shall meet the following requirements.

Capacitance Change	≤±20％ of the initial value
D.F. (tanδ)	≤200% of the initial specified value
Leakage Current	≤200% of the initial specified value

Load Life

After application of rated voltage with rated ripple current for the specified period of time at +105℃,the following specification shall be satisfied.

Dia.(mm)	Life Time
10	8000 hours
13	10000 hours
Over 16	12000 hours

Capacitance Change	≤±20％ of the initial value
D.F. (tanδ)	≤200% of the initial specified value
Leakage Current	≤the initial specified value

Others

Meet Q/RME 46—2008, GB/T 5993-2003

Dimension

Unit mm

D	10	13	16	18
d	0.6	0.6	0.8
F	5.0		7.5
α	0.5
β	2.0

Size and Max. Ripple Current

Voltage

(V)

Cap.

(mF)

Size

ΦD×L(mm)

Tanδ max

Ripple Current

(mArms,20℃,100KHz))

400

16×25

0. 2

470

TOPMAY PART NO. SYSTEM

TMCE

3002

476

400V

P7.5

Product Category

Sub-Series

Capacitance

686=68uF

Tolerance-+/-20%

Voltage

Pitch

Packing-bulk
