PEF220 20KV 2500pF 150KVA Ceramic Capacitor High Frequency For
Welding Machine
Features:
- Low loss Class 1 ceramic dielectric materials
- Noble metal electrodes with low self heating
- Very low capacitance-temperature characteristics available
- Correspondingly low tuned frequency drift
- Low Inductance construction, higher frequency use
- High withstand voltage, large reactive power ratings
- Low magnetic susceptibility
Applications:
These producrs are used in oscillators, coupling circuits or bypass
capacitors in industrial or medical high frequency equipment. They
are suitable to use as coupling capacitors for transmission line
and carrier frequency equipment. X-ray equipment, broadcast
equipment, induction heating power supplies (tube and solid state),
cable fault finders, plasma generators, RF power supplies,
dielectric heating, lasers and more.
Basic Parameter:
| Rated Specification | 2500pF 20KV 150KVA |
| Capacitance Tolerance | K (+/-10%) |
| Type | Plate Disc with 8 Claws |
| Ceramic Dielectric | PEF220 |
| Operating Temperature | -40~+85°C |
| Size / Dimension(ΦD×H,M) | D220mm H45mm M10 |
Specifications:
| TYPE | Capacitance | Rated Voltage | Rated Power | Max. Current | Dimensions(mm) | Temperature Coefficient |
| (PF) | (KVDC) | (KVA) | (A) | D | H | screw | (PPM/ ℃ ) |
| CPEF210 | 1000 | 30 | 150 | 60 | 210 | 55 | M10 | -750 |
| 1500 |
| 1600 |
| CPEF220 | 2000 | 20 | 220 | 45 |
| 2500 |
| 3000 | 17 |
| 4000 | 13 |
| 5000 |
| 6000 | 12 |
Main technical parameters:
- medium loss <=0.0008;
- insulation resistance >=10000 MΩ;
- nominal capacity allowable deviation: K(+/-10%);
- Climate category: -40/ +85℃
- rated temperature: +85℃;
- the test voltage: rated voltage <=15KV is twice the rated
voltage; 1.5 times rated voltage when rated voltage >15KV;
- relative humidity: 75%

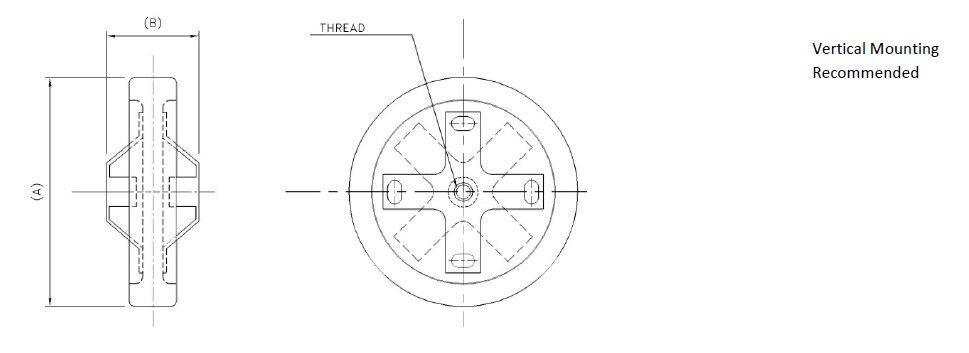

Product Outdrawing and Photos
High Frequency High power RF Plate Ceramic Capacitors Applications
