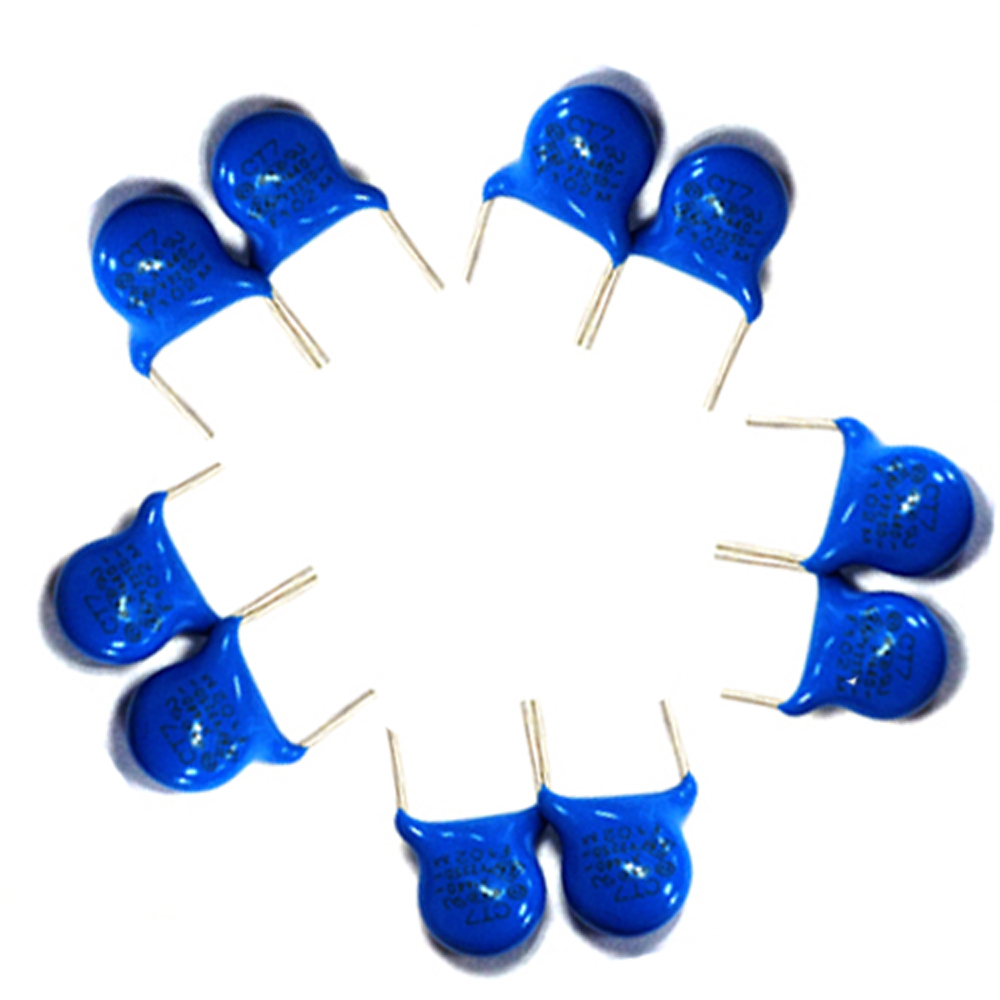

Safety Electronic Components AC Ceramic Disc Capacitor Y5V Y2 102M
250VAC
Features
- Flame retardant epoxy resin packaging
- Ceramic media with high dielectric coefficient
- Safety standards recognized for AC applications
Applications
- High voltage DC power supplies or discharges.
- High frequency AC circuits.
- Noise suppression circuit of power supply circuit of electronic
equipment
- Antenna coupling and bypass circuit
Basic Parameters
| Brand | ETOPMAY | Capacitance | 1000pF | Tolerance | ±20% |
| Rated Voltage | 250VAC | P/N | TMCC02-102M250VP7.5B | Package QTY | 1000pcs/bag |
| Temperature coefficient | Y5V | Working Temperature | -25℃~85℃ | Package | Bulk |
| Diameter | 6mm (max) | Thickness | 4mm(Max) | Lead Length | 23mm(Max) |
| Lead Type | Radial | Lead Space | 7.5mm | Test voltage resistance | 2500VAC |
| Product packaging | Blue Epoxy | D.F. | ≤5% | Insulation resistance | ≥10000MΩ |
Other Specifications
| Coating | Epoxy resin coating |
| Leads | Radial leads of tinned wire |
| Climatic Catalogue | 25 / 85 / 21 |
| Capacitance versus Rated Voltage (UR) | X1:400VAC, Y1:400VAC (50/60Hz) 10pF ~ 4700pF
X1:400VAC, Y2:250VAC (50/60Hz) 10pF ~ 4700pF |
| Capacitance Tolerance | K = ± 10% M = ± 20% |
| Dissipation Factor (Tangent of Loss) | Y5U Y5P:2.5 % max.at 25℃ and 1KHz Y5V:5 % max.at 25℃and 1KHz |
| Voltage Proof | 4000VAC for 1~5s. – 400VAC 2500VAC for 1~5s. – 250VAC |
FAQ Of Topmay Capacitor
1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality.
Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production
average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than
that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a
quotation?
Basically for capacitor, it requires to know detailed capacitance
and voltage. If you have more information, such as type, product
photo for reference, you could kindly provide too.
Our series of strong products of capacitors and resistors can be
divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65,
CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in ,
Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
Any more details, kindly contact us freely!
