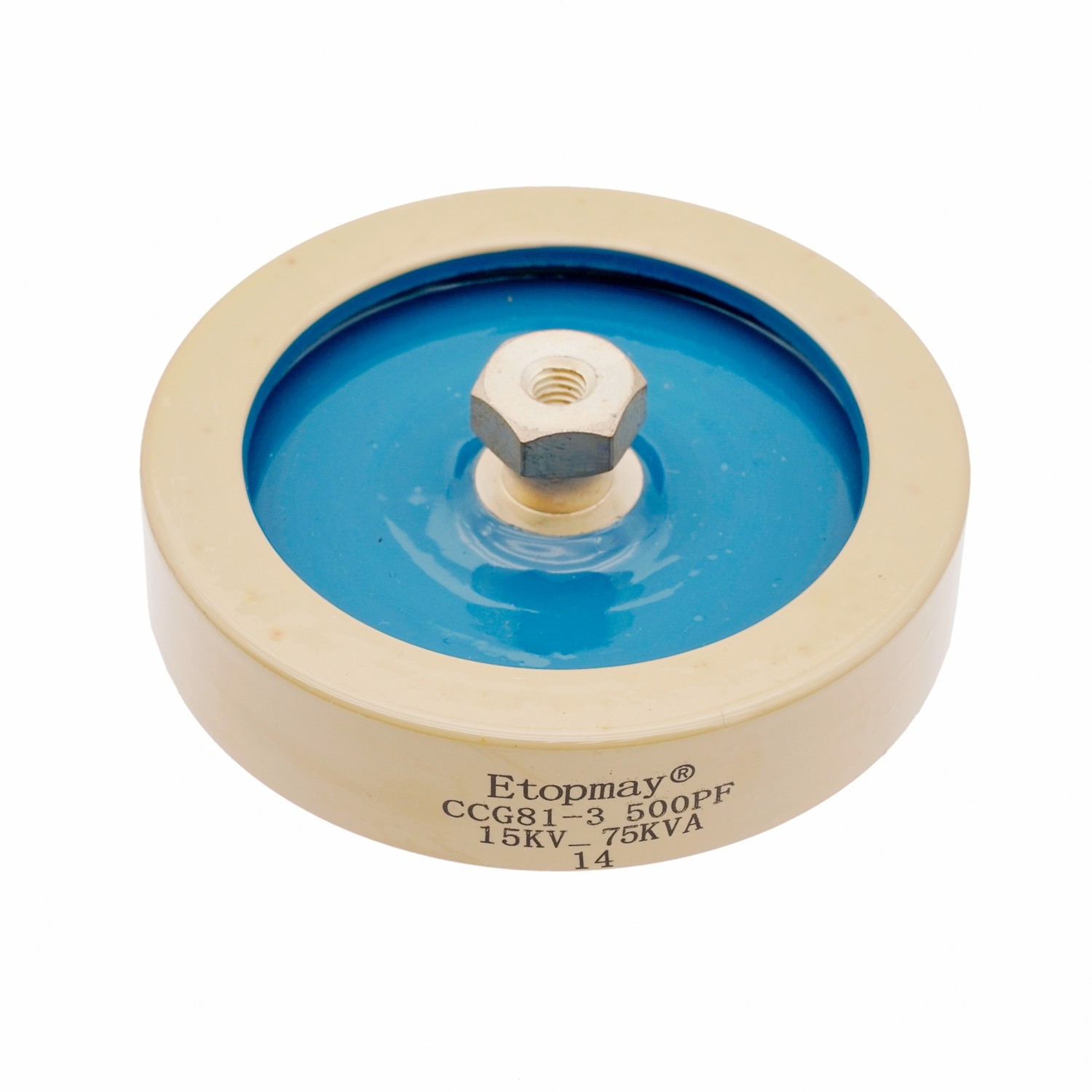

CCG81 Plate-Shaped High Voltage Ceramic Capacitor 500pF 15KV 75KVA
Features: This product have the advantages of high withstand voltage, low
dissipation factor, large reactive power, high frequency, long
service life time and easy-installation, etc.
Application: It's mainly used in equipment of high-frequency welded pipe,
high-frequency drying, high-frequency electric oven, plastic
thermal bonding machine and radio communication equipment.
Specifications:
1.Typical dissipation factor: ≤0.0008;
2.Volume resistivity: ≥10000MΩ;
3. Permissible variation of rated capacitance: K(+/-10%);
4.Temperature range: -40/+85;
5. Rated temperature: +85°C;
6.Maximum relative humidity: 75%;
7. Test voltage: 2 times of rated voltage if the rated voltage≤15KV
or 1.5 times of rated voltage if the rated voltage>15KV.
Dimensions
| Model | Capacitance | Rated Voltage(KV) | Rated Reactive Power | Max. Current | Dimensions(mm) | Temperature coefficient |
| (PF) | DC | HF(RMS) | (KVA) | (A) | D | H | Screw | (PPM/ ℃ ) |
| CCG81-0 | 100 | 5 | 4 | 30 | 15 | 35 | 21 | M6 | -750 |
| 150 |
| 200 | 40 |
| 300 | 45 |
| 8 | 5 | 40 | 46 |
| 330 | 5 | 4 | 48 |
| 8 | 5 | 50 |
| 350 | 8 | 5 | 51 |
| CCG81-1 | 100 | 15 | 12 | 60 | 20 | 58 | 37 | M6 |
| 150 | 60 |
| 200 | 36 |
| 250 | 35 |
| 300 | 10 | 8 | 34 |
| 12 | 10 | 35 |
| 15 | 13 | 65 |
| 350 | 10 | 8 | 60 | 34 |
| 12 | 10 | 62 |
| 500 | 10 | 8 | 33 |
| 600 | 64 |
| CCG81-2 | 500 | 12 | 10 | 65 | 25 | 70 | 34 | M6 |
| 750 | 10 | 8 | 33 |
| CCG81-3 | 300 | 12 | 10 | 75 | 30 | 78 | 36 | M6 |
| 15 | 12 | 37 |
| 350 | 12 | 10 | 80 | 36 |
| 15 | 12 | 37 |
| 500 | 10 | 8 | 34 |
| 13 | 10 | 35 |
| 15 | 12 | 82 | 36 |
| 1000 | 8 | 5 | 82 | 33 |
| 10 | 8 | 85 |
| 13 | 10 | 88 | 34 |
| CCG81-4 | 300 | 20 | 15 | 90 | 30 | 110 | 50 | M8 |
| 25 | 20 | 51 |
| 30 | 25 | 113 |
| 500 | 14 | 11 | 100 | 49 |
| 15 | 12 | 110 | 47 |
| 20 | 15 | 48 |
| 600 | 14 | 11 | 100 | 48 |
| 1000 | 10 | 8 | 45 |
| 12 | 10 | 110 |
| 15 | 12 |
| 1500 | 10 | 8 | 44 |
| 1600 | 11 | 8 | 102 | 43 |
| CCG81-5 | 300 | 30 | 25 | 90 | 40 | 125 | 52 | M8 |
| 500 | 20 | 15 | 120 | 50 |
| 25 | 20 | 125 | 51 |
| 1000 | 15 | 12 | 120 | 46 |
| 1500 | 10 | 8 | 44 |
| 12 | 10 | 45 |
| 15 | 12 | 122 |
| CCG81-6 | 300 | 30 | 25 | 90 | 60 | 138 | 52 | M8 |
| 500 | 25 | 20 | 140 |
| 30 | 25 |
| 1000 | 15 | 12 | 125 | 48 |
| 21 | 15 | 49 |
| 1500 | 15 | 12 | 46 |
| 1600 | 14 | 10 |
| 2000 | 12 | 45 |
| 13 | 142 |
| 3000 | 12 | 145 | 44 |
| CCG81-7 | 500 | 30 | 25 | 125 | 60 | 150 | 52 | M8 |
| 1000 | 25 | 20 | 50 |
| 1500 | 21 | 15 | 47 |
| 2000 | 15 | 12 | 46 |
| 2200 | 45 |
| 2500 | 10 | 8 |
| 12 | 10 | 152 |
| CCG81-8 | 1000 | 30 | 25 | 125 | 60 | 158 | 51 | M8 |
| 1500 | 25 | 20 | 48 |
| 2000 | 21 | 15 | 47 |
| 2500 | 12 | 10 | 45 |
| CCG81-9 | 1000 | 30 | 25 | 150 | 60 | 200 | 55 | M10 |
| 1500 |
| 1600 |
| 2000 | 15 | 12 | 45 |
| 20 | 15 |
| 2500 | 15 | 12 |
| 20 | 15 |
| 3000 | 15 | 12 |
| 4000 | 13 | 10 |
| 5000 |
| 6000 | 12 | 10 | 205 |
