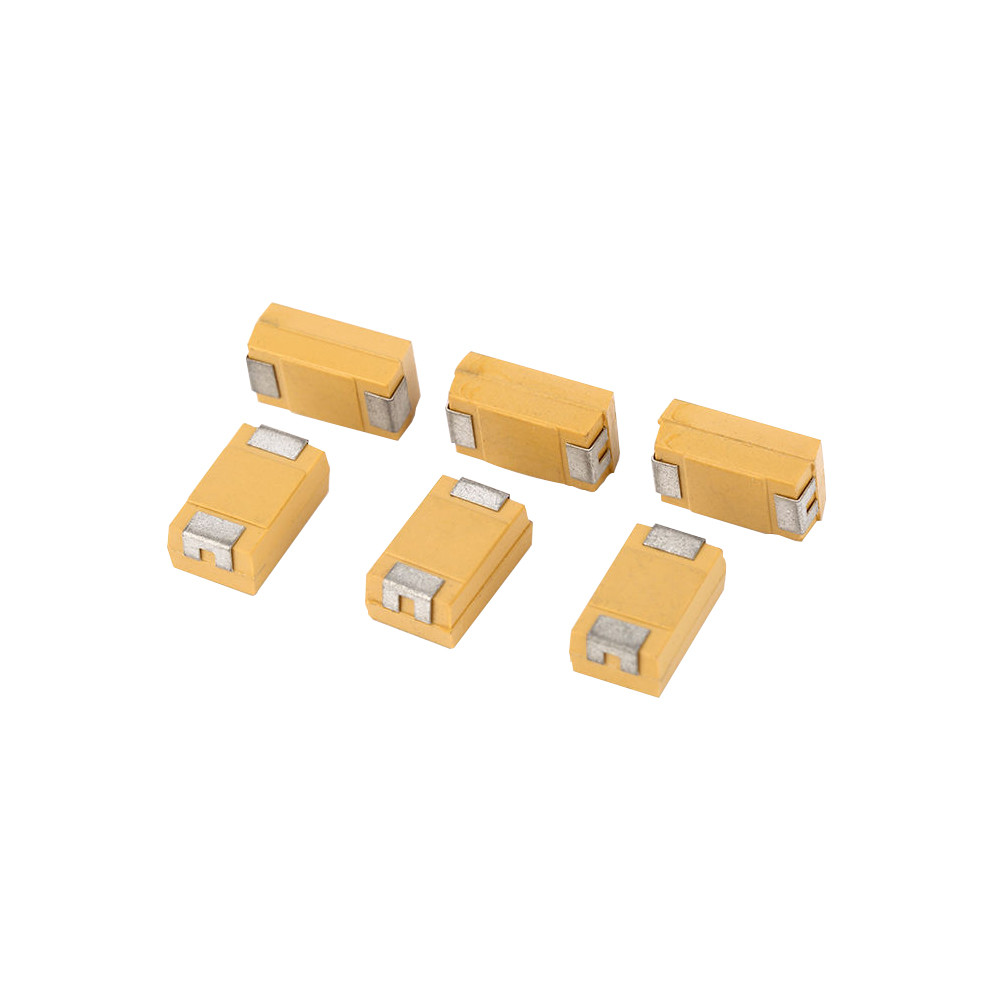

SMD Tantalum Capacitor 330uF 6.3V SMT 2917 7343 D CASE for Mobile Telephone

Brief Introduction

CA45 Series sinter-anode, molded solid tantalum chip capacitor,featuring small size,high capacitance,high reliability and excellent operation performances,is used for telecommunications,computers,camcorder,SMT electric circuits and so on.

Features

• Operating Temperature Range: -55℃＋ 125℃(when > 85℃, with rated voltage derating)
• Rated Voltage, Category Voltage, Nominal Capacitance: See Table 2
• Capacitance Tolerance: K:土10%; M:土20%;
• DC Leakage at 25℃ ;㏒≤0.01C_RU_R(µA) or 0.5uA ( Choose the greater one)

• Dissipation Factors ( tg6 ) at 25℃; Not exceed the parameter in Table 2

• ESR : Not exceed the parameter in Table 3;

• Dimensions: See Table 1& Figure; Not exceed the parameter in Table 2

Notices

Test and experiment,in order to make the test results not problems,it is necessary to will test the product after fully discharge.This product is a polar components, testing or when using it is strictly prohibited to will is negative pick back, in order to avoid performance failure.

Technical Characteristics:

Table 1 Dimensions

Part No: TMCT02-337K10VTD

Part Number Naming Rule:

Specification Table 2

Note: 1. Ur is Rated voltage Cr is normal capacitance

2. Pls don’t test above parameters with the universal meter

2. Capacitance and DF measured at: U_=2.2-1.00V,U~=1.0-0.50VV ( Voltage) Frequency :(100±5)Hz

3. Need decrease the rated voltage to use when environmental temperature is more than 85 ℃ (DCL measuring conditions: Applying rated voltage, the charging interval can exceed 5min.)

Application

Communications, 5G IOT, consumer electronics, automobile,medical equipments and etc., and also aerospace , drilling instrumentation and other industries for defense.

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
