SMT 1206 SMD Tantalum Capacitor 1uF 10% 35V Smd Tantal Kondensator

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCT02
Certification :	SGS( RHOS)
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	100000pcs per month
Delivery Time :	25~30 working days

Add to Cart

Product Details
Company Profile

SMT 1206 SMD Tantalum Capacitor 1uF 10% 35V Smd Tantal Kondensator

SMD Tantalum Capacitor SMT 1206 1uF 10% 35V Tantal Kondensator

A typical tantalum capacitor is a chip capacitor and consists of tantalum powder pressed and sintered into a pellet as the anode of the capacitor, with the oxide layer of tantalum pentoxide as a dielectric, and a solid manganese dioxide electrolyte as the cathode .

Features

Tantalum capacitor performance is superior, the large capacity can be implemented at the same time can make relatively small volume, easy processing into small and chip component, suitable for the electronics assembly automation, miniaturization of development, has been widely used, the main characteristics of tantalum capacitor has long service life, high temperature resistant, high accuracy, but the ability of resistance to voltage and current is relatively weak, Generally used in large capacity filter circuit.

Technical Characteristics

Product Name	Chip Tantalum Capacitors
Part No.	TMCT02-105K35VTA
Detailed Description	CA45 1uF 10% 35V SMD 1206 (3216 Metric), 6 Ohm
Package	Tape & Reel (TR)
DC Leakage Current(DCL)	0.5 uA @ 25℃
Dissipation Factor(DF)4	%@ 25℃ & 100Hz
ESR (Equivalent Series Resistance)	6Ohm @ 100KHz
Size / Dimension	0.126" L x 0.063" W(3.20mm x 1.60mm)
Size Code	A CASE
Features	General Purpose

Part No: TMCT02-105K35VTA

TMCT	02	_	105	K	35V	T	A
Product Category	Sub-Series		Capacitance	Tolerance-10%	Voltage	Package:Tape&Reel	Case Size

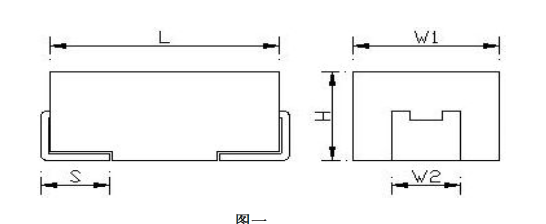

Dimensions and Case Size

Size(mm):

Case Code	L	W1	H	S	W2
A	3.35±0.2	1.74±0.2	1.80±0.2	0.7±0.2	1.2±0.2

Application

Most suitable for high-dencity surface mount consumer electronic equipment , such as colour TV sets , PC ,mobile telephone sets ,pickup camera ,radar etc.

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Our series of strong products of capacitors can be divided into below types:
★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )
★ Multilayer Ceramic Capacitor( radial, axial and SMD )
★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )
★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )
★ Tantalum Capacitor(SMD, Radial , Axial )
★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)
★ Mica Capacitor
★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:
★ SMD Resistors
★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)
★ Cement Resistors
★ Leadless Resistors( MLEF)
★Power Resistor
