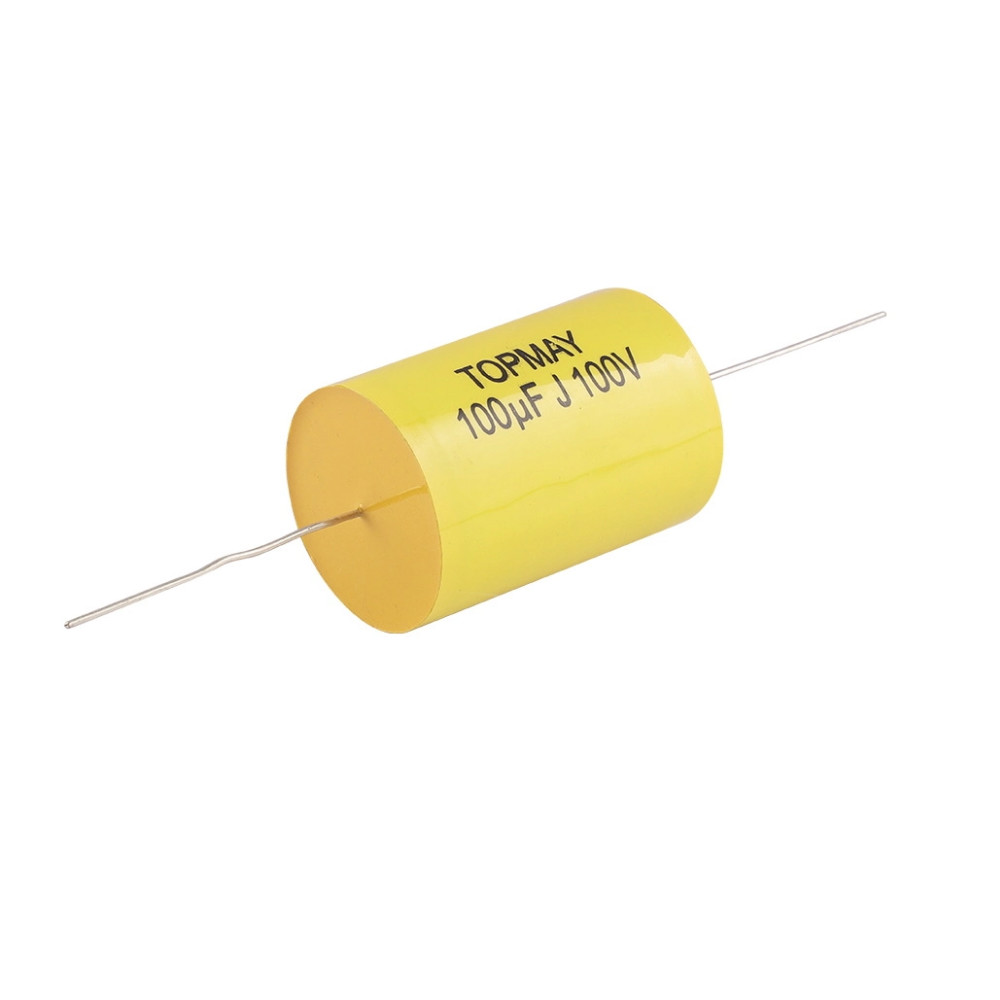

CBB20 Polypropylene Audio Capacitor for Power Amplifier MKP 100uF J 100V

Compared with other CBB capacitors, CBB20 could make wide range of capacitance. Generally, the large capacity could reah up to 100uF, which is much higher than other CBB capacitors. Moreover, its capacity stability is also particularly good, and the service life of the capacitor can reach about 10-15 years.

CBB20 axial capacitance is widely used in power saving, audio, speaker, audio, flash lamp, stage lamp, disinfection lamp and other fields.
It is widely used in frequency conversion and frequency division large pulse circuits, especially in high fidelity audio frequency divider circuits.
It is mainly used in filtering and pulse high current occasions, such as power amplifier and welding machine

Feature:

Non inductive structure

Low Loss at high frequency

High insulation resistance, good self-healing , long service life

Widely used in high frequency, DC, AC and pulse circuits

Specifications

Referance Standard		GB 10190-88(IEC 60384-16)
Operating Temperature		-40℃~ +105℃
Rated Voltage		100V,
Capacitance Range		100μF
Capacitance Tolerance		±5%(J)
Voltage proof		1.6UR(5s)
Dissipation Factor		≤0.1%(20℃, 1KHz)
Insulation Resistance		≥25000MΩ (CR≤ 0.33 uF) ≥7500S (CR≥0.33 uF) (20℃,1min)

Dimension

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.

2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days

3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs

4) How about price terms?

We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.

5) What information should I let you know if I want to get a quotation?

Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
