Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

Ask Lasest Price
Brand Name :	ETOPMAY
Model Number :	TMCF18
Certification :	SGS( RoHS), UL
Price :	Negotiable
Payment Terms :	T/T
Supply Ability :	1000000pcs per month
Delivery Time :	12~15 working days

Add to Cart

Product Details
Company Profile

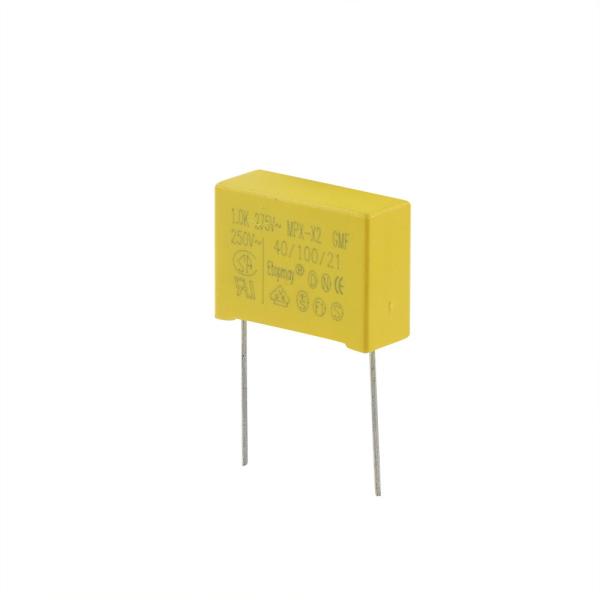

Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

X2 Capacitor Interference Suppression Metallized Polypropylene Film Capacitor 1uF 275VAC 305VAC 310VAC

Item: TMCF18-105K275VP22.5B

Capacitance:1uF

Voltage: 275VAC

Tolerance: +/-10%

Dielectric: Metallized Polypropylene Film

Pitch=22.5mm

Size: 26*19*10mm

Package: Bulk

Dimensions

Item	W±0.5	H±0.5	T±0.5	D±0.05	L±1	P±0.5
X2 105K275VAC	26	19	10	0.8	22	22.5

Part Number Naming Rule:

TMCF	18	_	105	K	275V	P22.5	B
Product Category	Sub-Series		Capacitance	Tolerance-10%	Voltage	Pitch	Packing-bulk

Features

Class X2 voltage standard
Non-inductive, (UL940V-0) plastic case sealed with epoxy resin.
Used in across-the-line, interference supperession circuit

Outline Drawing

Non-inductive, wound with metallized polypropylene film as the

dielectric/electrode with copper-clad steel leads and encapsulated in a plastic case sealed with epoxy resin.

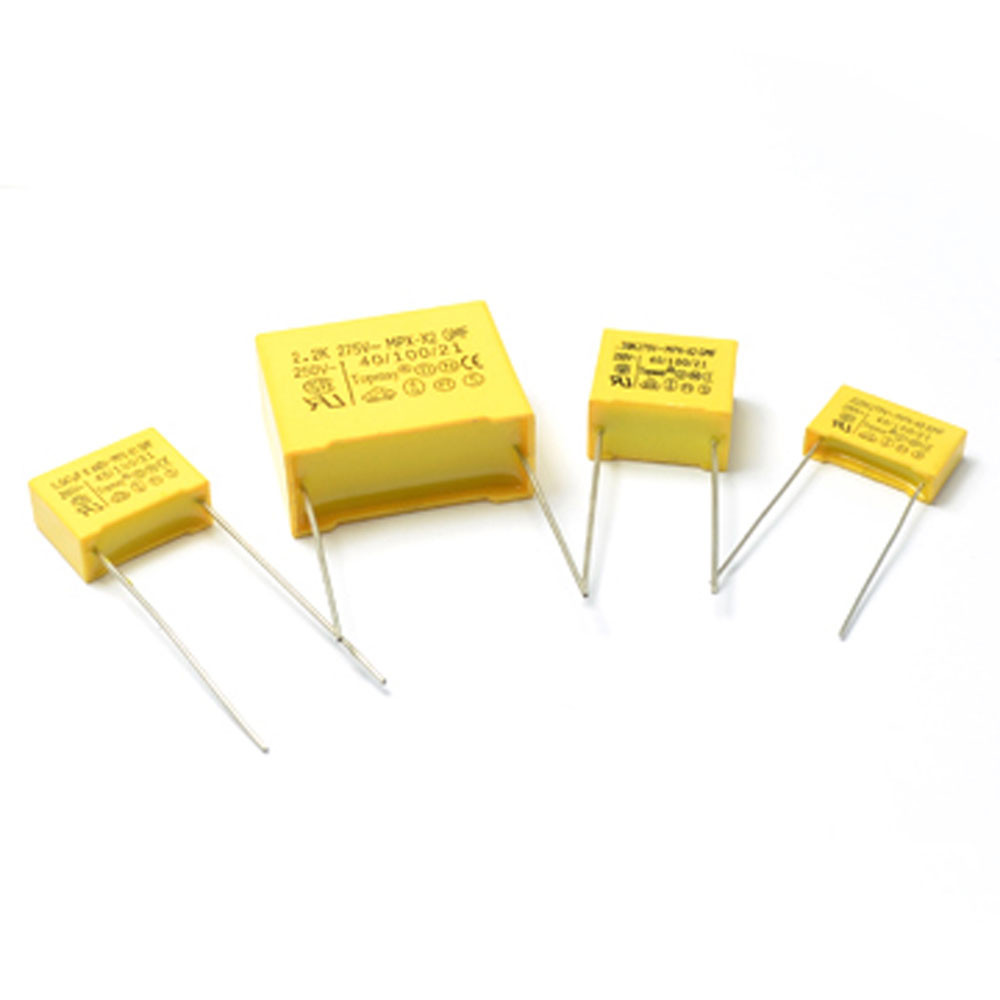

X2 Capacitor Interference Suppression Metallized Polypropylene Film Capacitor
Rated Voltage	275VAC,305VAC,310 VAC
Capacitance Range	0.001 to 4.7uF
Capacitance Tolerance	±10% (K)
Operating Temperature	-40°C to 110°C
Testing Voltage	4.3UR DC /5s
Dissipation Factor	0.0010μF≤CR≤0.47μF ≤0.1% (1KHz,20℃) 0.47μF≤CR≤1.0μF ≤0.2% (1KHz,20℃) 1.0μF≤CR≤10μF≤0.3% (1KHz,20℃)
Insulation Resistance	CR≤0.33μF, I.R≥15,000MΩ CR>0.33μF, I.R≥5,000S (20℃,100V,1min)

Metallized Polypropylene Film Capacitor X2 Interference Suppression 1uF 275VAC

FAQ Of Topmay Capacitor

1) Can I have a free sample to test ?
Yes, we could provide free samples to test and check quality. Freight cost is collected.
2) What is the lead time?
Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
3) Do you have any MOQ limit?
Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
4) How about price terms?
We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
5) What information should I let you know if I want to get a quotation?
Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.

Our series of strong products of capacitors can be divided into below types:

★ Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

★ Multilayer Ceramic Capacitor( radial, axial and SMD )

★ Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

★ Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

★ Tantalum Capacitor(SMD, Radial , Axial )

★ Super Capacitor( Coin Type, Cylindrical Type, Module Type)

★ Mica Capacitor

★ Trimmer Capacitor

And series of resistors which we develop new production lines are as below:

★ SMD Resistors

★DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

★ Cement Resistors

★ Leadless Resistors( MLEF)

★Power Resistor

More details, Kindly contact us freely!
