    DC Link 40uF 1100V Metallized Polypropylene Film Capacitor MKP Boxed Type 4Pin

    Ask Lasest Price
    Brand Name : ETOPMAY
    Model Number : TMCF17
    Certification : SGS( RoHS)
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000pcs per month
    Delivery Time : 25~35 working days after payment
    • Product Details
    • Company Profile

    DC Link 40uF 1100V Metallized Polypropylene Film Capacitor MKP Boxed Type 4Pin

    Metallized Polypropylene Film Capacitor MKP Capacitor for DC Link 40uF 1100V Boxed Type 4Pin


    Features:

    Dielectric: Polypropylene metallized film,

    Low loss, non-inductive type. Self-healing

    Low profile dimensions available

    High ripple current ,High capacitance density

    Suitable for high frequency applications


    Applications : DC filtering, DC link, power electronics, energy storage, renewable energy grid interface, motor drives, and automotive applications.


    Referance StandardIEC61071
    Climatic Category‘-40~+105℃
    Rated Voltage1100VDC
    Capacitance Range40uF
    Capacitance Tolerance±10%(K)
    Rated Voltage between terminals1.5UR(10s)
    Rated Voltage between terminals and shell3000VAC·50Hz (10s 20℃)
    Peak non- repetitive current1.5*IPKR for maximum 1000 times in a lifetime
    Capacitance Devivation in Operation±2.0% maximum on capacitance value measured at T=+25℃±5℃
    Dissipation Factor≤0.02%(20℃, 10KHz)
    Series Resistance RS≤18mΩ
    Insulation Resistance≥10000s( 100vdc.1 min)
    Overvoltage1.1 UR ( within 20% load time);
    1.15UR ( 30min/day) ;1.2UR ( 5min/day)
    1.3UR ( 5min/day) ; 1.5UR ( 5min/day)
    100000hours(UR,Θ hotspot=70℃)
    Failure Rate<100FIT

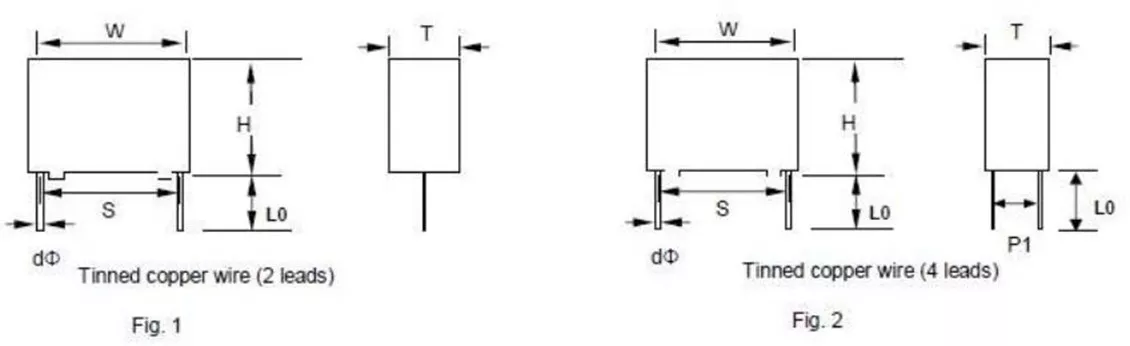

    W±1mmH±1mmT±1mmS±1mmP1±1mmd±0.05mmL±2mm
    57.5503552.520.31.25.5

    Product Photo for reference:


    Company Information

    Shenzhen Topmay Electronic Co., Ltd is specialized in manufacturing a wide range of capacitors and resistors.

    Metallized Polypropylene Film Capacitor MKP Capacitor for DC Link 40uF 1100V Boxed Type 4Pin


    The company headquarter is located in Shenzhen, a flourishing southern city that is recognized as one of the economic centers of China. Since established in 1998, Topmay deal globally based on the most competitive price and excellent service. Through many years’ hard work, it has gradually grown up to be an outstanding enterprise in the field of capacitors and resistors.


    By closely following the latest market trends, we provide “one-stop” capacitors and resistors solution, which are applied in almost all kinds of PCB, communications, lighting, home appliance, industrial control, green energy, etc.


    Our series of capacitors and resistors can be divided into below types:


    Ceramic Disc Capacitor( low and high voltage, Y1/Y2 safety )

    Multilayer Ceramic Capacitor( radial, axial and SMD )

    Film Capacitor( Mylar, MKT, MKP, X2, CBB60, CBB61, CBB65, CL21-Box, CBB-BOX, CL20, CBB20, CBB81, etc. )

    Aluminum Electrolytic Capacitor(SMD, Radial , Axial, Snap-in , Screw Terminal, etc. )

    Tantalum Capacitor(SMD, Radial , Axial )

    Super Capacitor( Coin Type, Cylindrical Type, Module Type)

    Mica Capacitor

    Trimmer Capacitor


    SMD Resistors

    DIP TYPE Resistors( KNP, CF, MF, MOF, ect,)

    Cement Resistors

    Leadless Resistors( MLEF)

    Power Resistor


    All the time, Topmay holds an idea that the products quality is the life of a company. We have passed ISO9001 quality system authentication and process strong research and development center and experienced service team. In order to serve our customers better, we have made investments so that our products can meet quality standards of UL, CE, SGS, CQC, etc.

    With these advantages, we have good reputation among global customers.

    Topmay thanks for all trusts and supports from every customer. We are willing to cooperate with domestic and foreign customers to meet prosperity together, generations by generations.


    FAQ Of Topmay Capacitor

    1) Can I have a free sample to test ?
    Yes, we could provide free samples to test and check quality. Freight cost is collected.
    2) What is the lead time?
    Sample needs about 7~10 working days prepared; mass production average time takes 15-20 working days
    3) Do you have any MOQ limit?
    Yes. But it depends on product. Normally MOQ is 2K~10Kpcs
    4) How about price terms?
    We do FOBSHENZHEN if order amount is more than 5000USD. Less than that, it is EXWSHENZHEN and we do not undertake local charge.
    5) What information should I let you know if I want to get a quotation?
    Basically for capacitor, it requires to know detailed capacitance and voltage. If you have more information, such as type, product photo for reference, you could kindly provide too.
