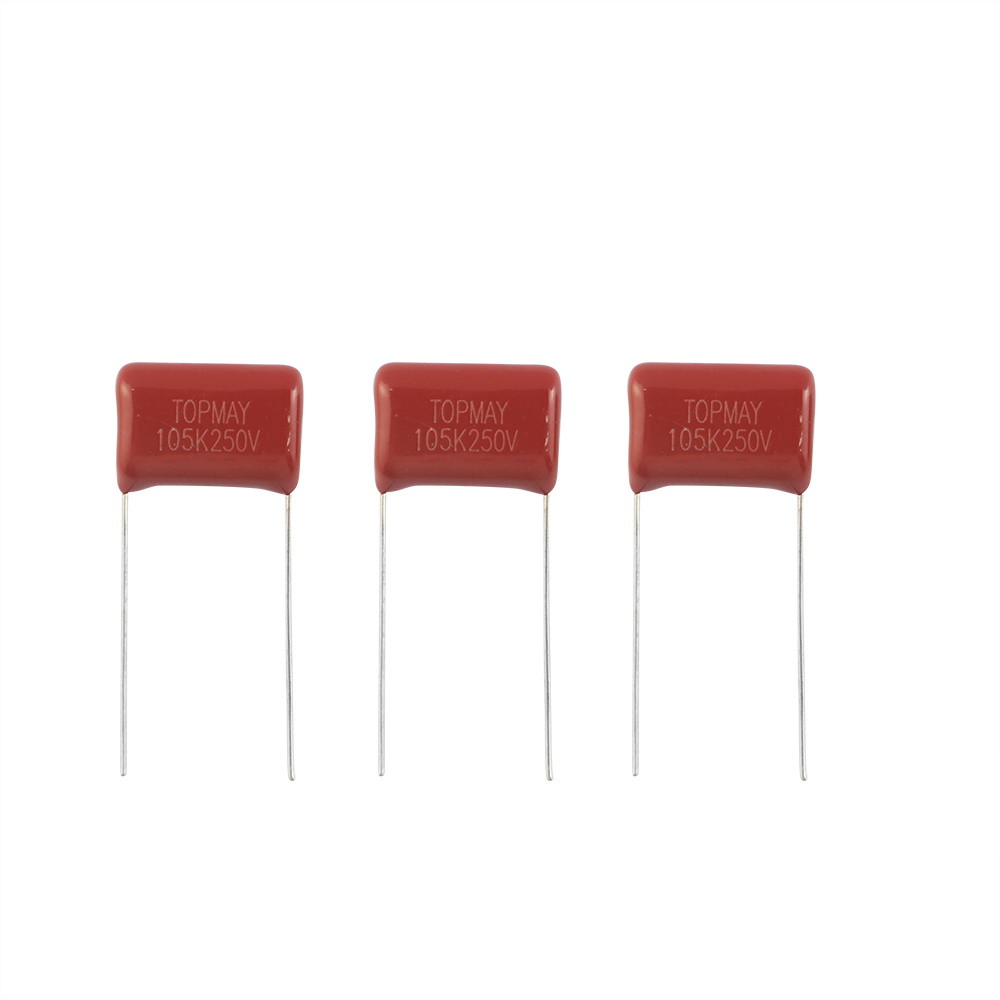

1uF 250V Polyester Film Capacitor 105K250V Consumer Electronics
1uF 250V Metalized Polyester Film Capacitor 105K250V
Product Details:
Type: CL21 Metallized Polyester Film Capacitor (MPE)
Model: 105K250V
Material: Metallized Polyester Film
Capacity: 1uF
Rated voltage: 250VDC
Pitch: 15mm
Capacitance tolerance: ±10% ( K )
Color: Red
Printing: laser printing
Packing: Bulk
* Product Fetures:
Metallized polyester film wound together, low loss, small internal
temperature, good self-healing, some small filmcapacity available
in series production, high pressure. High-temperaturewax seal,
flame retardant epoxy powder coating, good insulation resistance,
high pressure, low noise.
* Product Applications
Industrial Control
Automotive Electronics
LED Lighting
Communication Lines
Power
Domestic Electrical Appliance
Instrument and Meter
* Product Specifications
| Metallized Polyester Film Capacitor |
| Climatic Category | 40/85/21 |
| Rated Voltage | 100V, 160V, 250V,400V, 630V |
| Capacitance Range | 0.001uF~10uF |
| Voltage Proof | 1.6Ur(5s) |
| Dissipation Factor | ≤1%(20℃, 1KHz) |
| Capacitance Tolerance | ±10%(K) |
| Insulation Resistance (20℃,1min) | ≥7500MΩ (CR≤ 0.33 uF)
≥2500S (CR＞0.33 uF) |
